152
Reference Manual
00809-0100-2460, Rev DE
Service and Troubleshooting
October 2018
Service and Troubleshooting
6.27.4 Varec

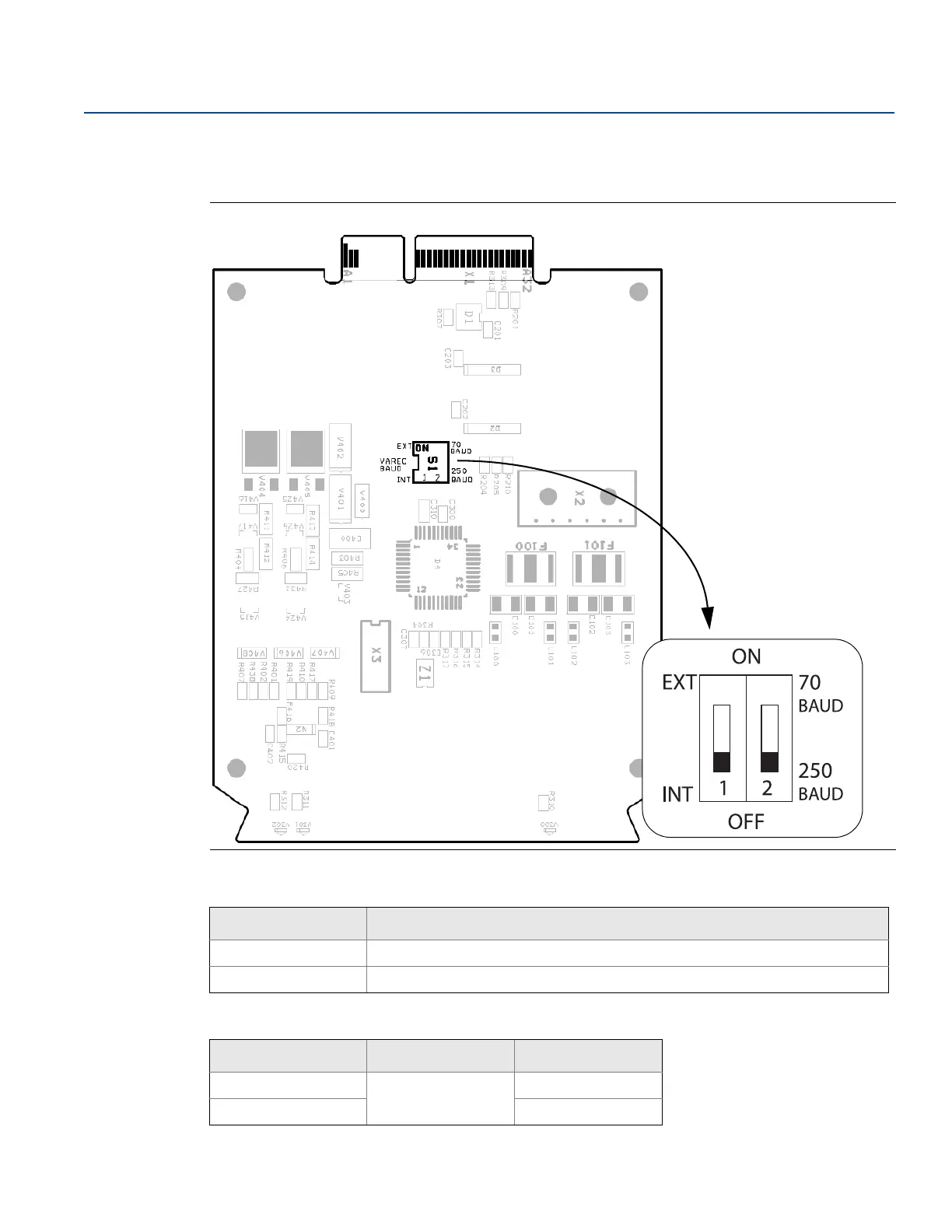

Figure 6-12. Varec Modem Card
Table 6-12. Configuration switches
Table 6-13. Standard configuration for internal baud rate control via DIP switch S1
Switch Description
S1:1 Varec baud rate selection externally (via local host) or internally (via DIP switch)
S1:2 Varec baud rate selection 250/70 baud. Active only if S1:1 is OFF (INT).
Baud rate 1 2
70
OFF (INT)
ON
250 OFF
S1
