2 Function matrix PROline Prosonic Flow 93 FOUNDATION Fieldbus
8 Endress+Hauser
2 Function matrix
2.1 General layout of the function matrix
The function matrix consists of four levels:
Blocks
→ Groups → Function groups → Functions
2.1.1 Blocks (A, B, C, etc.)
The blocks are the highest-level grouping of the operation options for the measuring
device. Examples of blocks available are MEASURED VARIABLES, USER INTERFACE,
TOTALIZERS etc.
2.1.2 Groups (AAA, AEA, CAA, etc.)
A block consists of one or more groups. Each group represents a more detailed
selection of the operation options in the higher-order block.
The groups in the “USER INTERFACE” Block, for example, include: CONTROL, MAIN
LINE, ADDITIONAL LINE etc.
2.1.3 Function groups (000, 020, 060, etc.)
A group consists of one or more function groups. Each function group represents a
more detailed selection of the operation options in the higher-order group. The function
groups in the “CONTROL” group, for example, include: BASIC CONFIGURATION,
UNLOCKING/LOCKING, OPERATION etc.
2.1.4 Functions (0000, 0001, 0002, etc.)
Each function group consists of one or more functions. The functions are used to
operate and configure the measuring device. Numerical values can be entered or
parameters selected and saved.
The functions in the “BASIC CONFIGURATION” function group, for example, include:
LANGUAGE, DISPLAY DAMPING, CONTRAST LCD etc.
To change the operating language of the device, for example, you must proceed as
follows:
1. Select the “USER INTERFACE” Block.
2. Select the “CONTROL” group.
3. Select the “BASIC CONFIGURATION” function group.
4. Select the “LANGUAGE” function
(the language required is selected here).
…
…
…
…
…
…
…
…
0001
2001
0401
2021
2201
0002
2002
0402
2022
2202
0003
2003
0403
2023
2203
0009
2009
0409
2029
2209
0429
2049
2069
0421
2041
0422
2042
0423
2043
20632061 2062
0000
2000
0400
2020
2200
0420
2040
2060
000
200
040
202
220
042
204
206
AAA
BAA
ACA
CAA
CBA
A
B
C
D, E, …

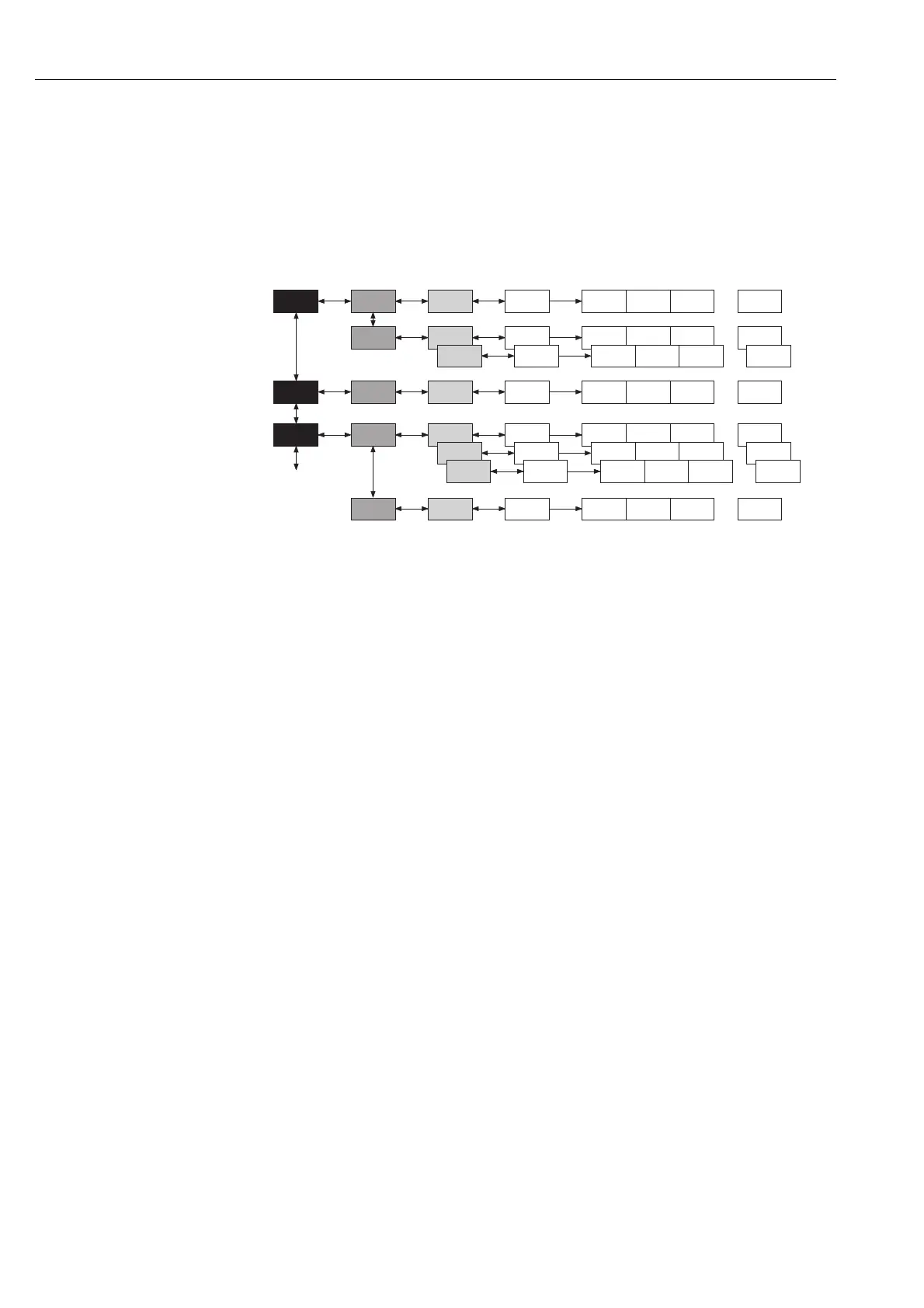

F06-x3xxxxxx-13-xx-xx-xx-000
