Endress+Hauser Proline Prosonic Flow 93 Function Manual

5 Block USER INTERFACE PROline Prosonic Flow 93 FOUNDATION Fieldbus
38 Endress+Hauser
5.4 Group INFORMATION LINE
5.4.1 Function group: CONFIGURATION
USER INTERFACE C
Þ
CONTROL CAA
ß
MAIN LINE CCA
ß
ADDITIONAL LINE CEA
ß
INFORMATION LINE CGA
Þ
CONFIGURATION 260
Function description
USER INTERFACE → INFORMATION LINE → CONFIGURATION

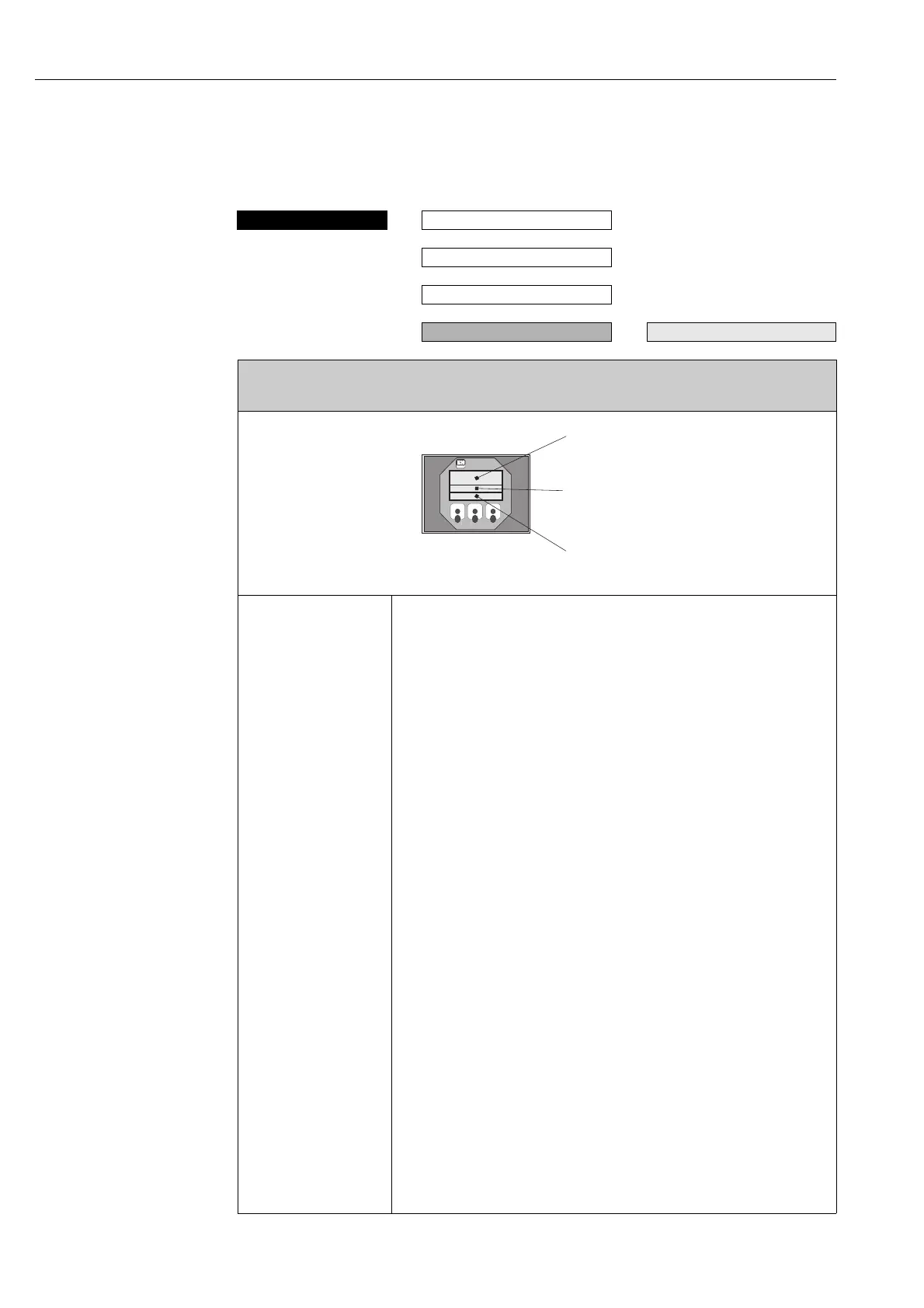

A = main line, B = additional line, C = information line
ASSIGN
(2600)
Use this function to define the display value assigned to the information line
(the bottom line of the local display) during normal measuring operation.
Options:
OFF
VOLUME FLOW CH1
VOLUME FLOW CH2
CALCULATED VOLUME FLOW
VOLUME FLOW % CH1
VOLUME FLOW % CH2
CALCULATED VOLUME FLOW %
SOUND VELOCITY CH1
SOUND VELOCITY CH2
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH CH1
SIGNAL STRENGTH CH2
FLOW VELOCITY CH1
FLOW VELOCITY CH2
FLOW VELOCITY AVERAGE
VOLUME FLOW BARGRAPH % CH1
VOLUME FLOW BARGRAPH % CH2
CALCULATED VOLUME FLOW BARGRAPH %
SIGNAL STRENGTH BARGRAPH CH1
SIGNAL STRENGTH BARGRAPH CH2
TOTALIZER 1
TOTALIZER 2
TOTALIZER 3
OPERATING/SYSTEM CONDITIONS
FLOW DIRECTION CH1
FLOW DIRECTION CH2
CALCULATED FLOW DIRECTION
(Continued on next page)
-
+
ENDRESS+HAUSER
E
ESC
A
B
C
F06-x3xxxxxx-07-03-xx-xx-000
