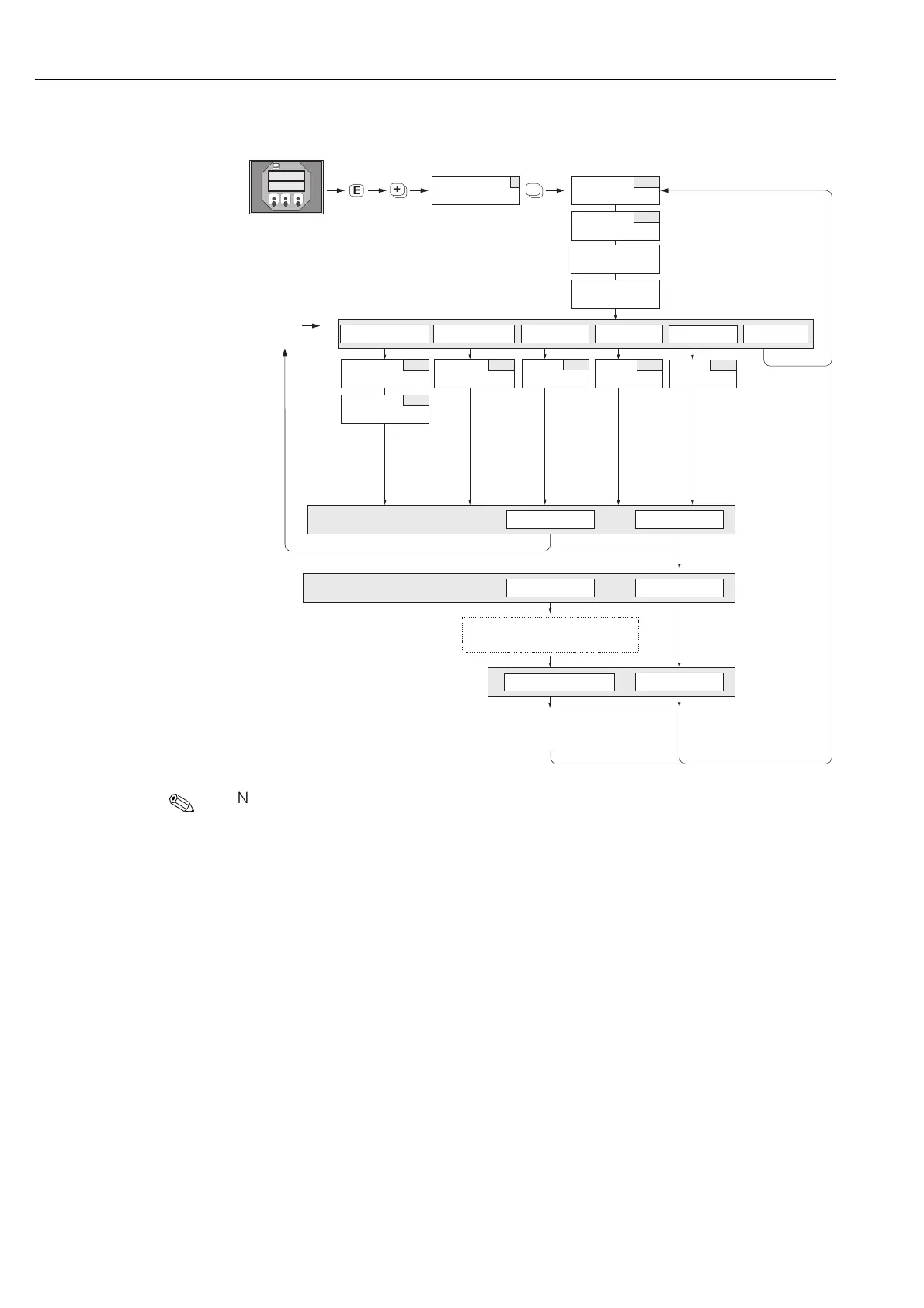

4 Block QUICK SETUP PROline Prosonic Flow 93 FOUNDATION Fieldbus
22 Endress+Hauser
4.0.2 Commissioning Quick Setup

Note!
• The display returns to the QUICK SETUP COMMISSIONING (1002) cell if you press
the ESC key combination during parameter interrogation.
• See numbers in the illustration of the Quick Setup sensor menu:
• The system units selected via the Quick Setup are only valid for display on the local
display and for the parameters in the Transducer Blocks.
They have no effect on the process variables which are transmitted via the
FOUNDATION Fieldbus.
+
+
+
E
E
➀
➁
-
+
ENDRESS+HAUSER
E
ESC
Commission
Language
System Units
Presetting
Quick Setup
HOME-POSITION
QS
1002
2000
Volume flow
Temperature
Viscosity
Length
Velocity
Quit
Configure another unit?
NOYES
Unit
Unit
Unit
Unit
Unit
Unit
Volume Flow
Temperature
Viscosity
Length
Velocity
Totalizer
Selection
System units
0402
0422
0423
0424
0425
3001
B
Autom. Configuration of the display?
NO
NO
YES
Sensor
Carrying out the
Quick Setup
Sensor
Automatical configuration
of the display
Inquiry: another
Quick Setup?
F06-93xFFxxx-19-xx-xx-en-000
➀ Only the units not yet configured in the current Quick Setup are offered for
selection in each cycle. The unit for volume is derived from the volume flow unit.
➁ The “YES” option remains visible until all the units have been configured. “NO” is
the only option displayed when no further units are available.
