PROline Prosonic Flow 93 FOUNDATION Fieldbus 5 Block USER INTERFACE
Endress+Hauser 43
DISPLAY MODE
(2623)
 Note!
This function is not available unless one of the following options was selected
in the ASSIGN (2620) function:
• VOLUME FLOW BARGRAPH % CH1
• VOLUME FLOW BARGRAPH % CH2
• CALCULATED VOLUME FLOW BARGRAPH %
• SIGNAL STRENGTH BARGRAPH CH1
• SIGNAL STRENGTH BARGRAPH CH2

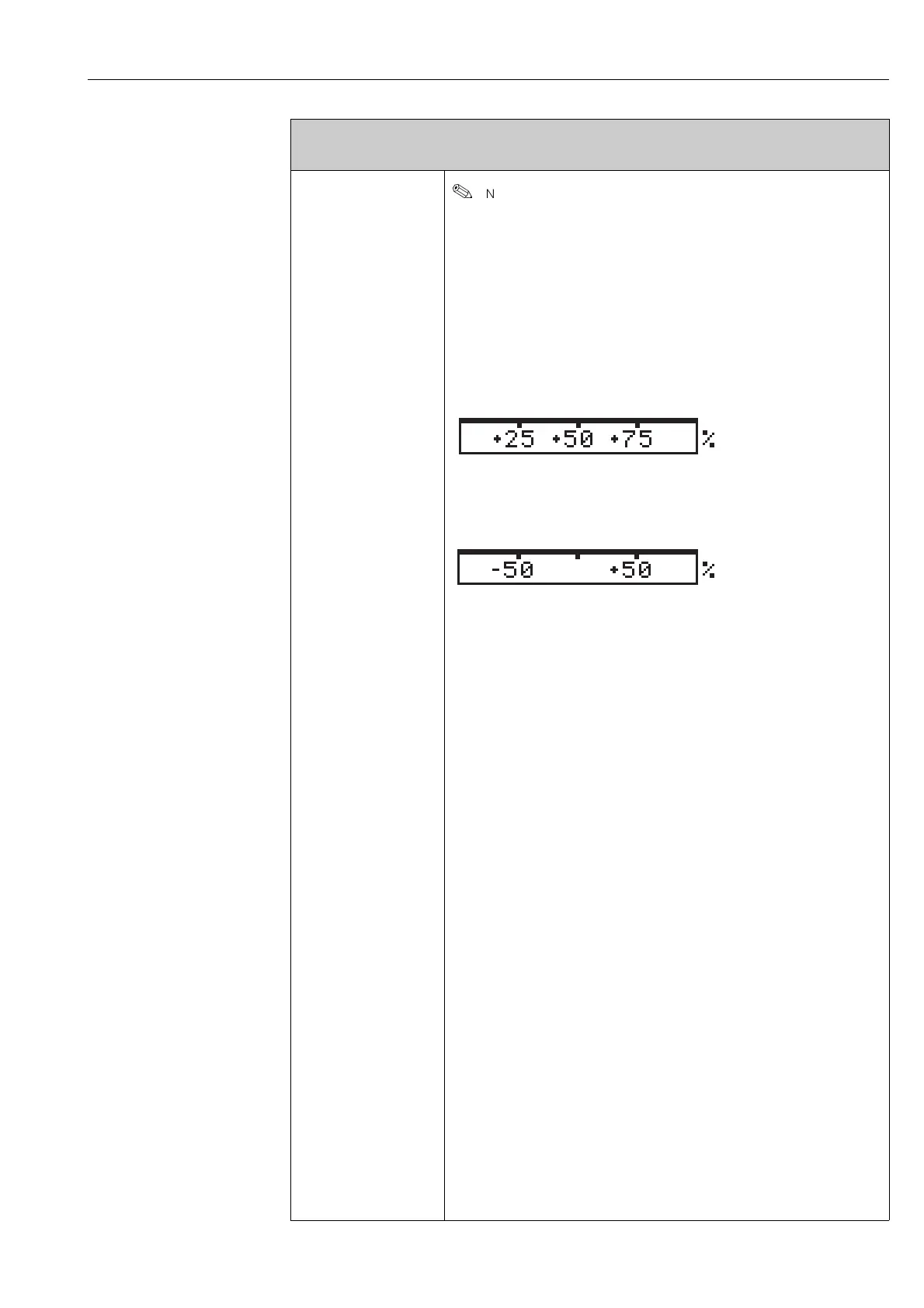

Use this function to define the format of the bar graph.
Options:
STANDARD
(Simple bar graph with 25 / 50 / 75% gradations and integrated sign).
SYMMETRY
(Symmetrical bar graph for positive and negative directions of flow with
–50 / 0 / +50% gradations and integrated sign).
Factory setting:
STANDARD
Function description
USER INTERFACE → INFORMATION LINE → MULTIPLEX
F-x3xxxxx-20-xx-xx-xx-000
F-x3xxxxx-20-xx-xx-xx-001
