5.2 Group MAIN LINE
5.2.1 Function group: CONFIGURATION
USER INTERFACE C
Þ
CONTROL CAA
ß
MAIN LINE CCA
Þ
CONFIGURATION 220
Function description
USER INTERFACE → MAIN LINE → CONFIGURATION

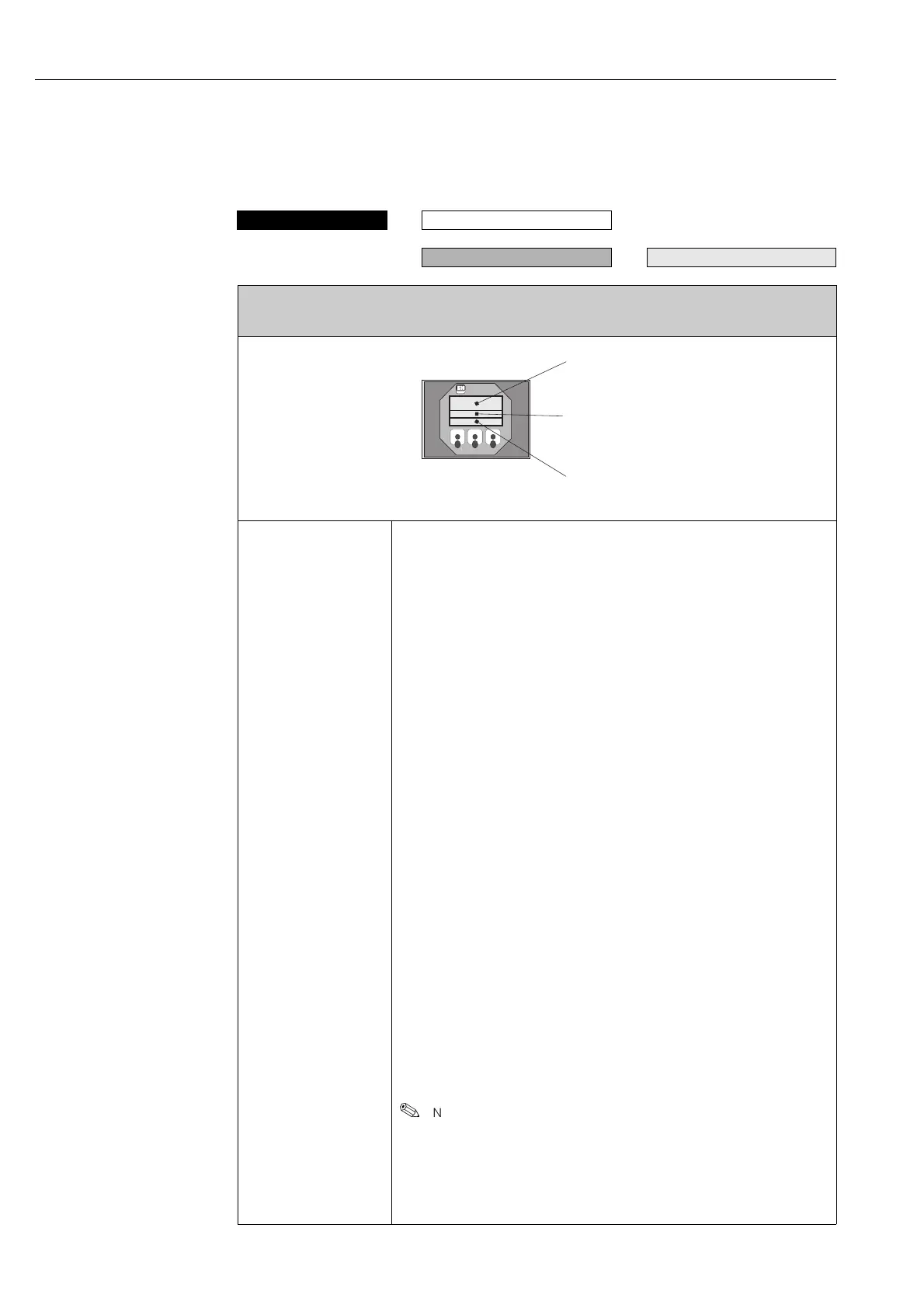

A = main line, B = additional line, C = information line
ASSIGN
(2200)
Use this function to define the display value assigned to the main line (the top
line of the local display) during normal measuring operation.
Options:
OFF
VOLUME FLOW CH1
VOLUME FLOW CH2
CALCULATED VOLUME FLOW
VOLUME FLOW % CH1
VOLUME FLOW % CH2
CALCULATED VOLUME FLOW %
SOUND VELOCITY CH1
SOUND VELOCITY CH2
SOUND VELOCITY AVERAGE
SIGNAL STRENGTH CH1
SIGNAL STRENGTH CH2
FLOW VELOCITY CH1
FLOW VELOCITY CH2
FLOW VELOCITY AVERAGE
TOTALIZER 1
TOTALIZER 2
TOTALIZER 3
AI 1 - OUT VALUE
AI 2 - OUT VALUE
AI 3 - OUT VALUE
AI 4 - OUT VALUE
AI 5 - OUT VALUE
AI 6 - OUT VALUE
AI 7 - OUT VALUE
AI 8 - OUT VALUE
PID - IN VALUE (controlled variable)
PID - CAS IN VALUE (remote setpoint value)
PID - OUT VALUE (manipulated variable)
Factory setting:
VOLUME FLOW CH1
 Note!
If a channel is not visible, it does not appear in the options. The channels can
be displayed or hidden by means of the MEASUREMENT (6880) function.
-
+
