Entrust Datacard CR825 - Single Hopper Configuration Label

CR825 and CE875 Instant Issuance System User’s Guide 15

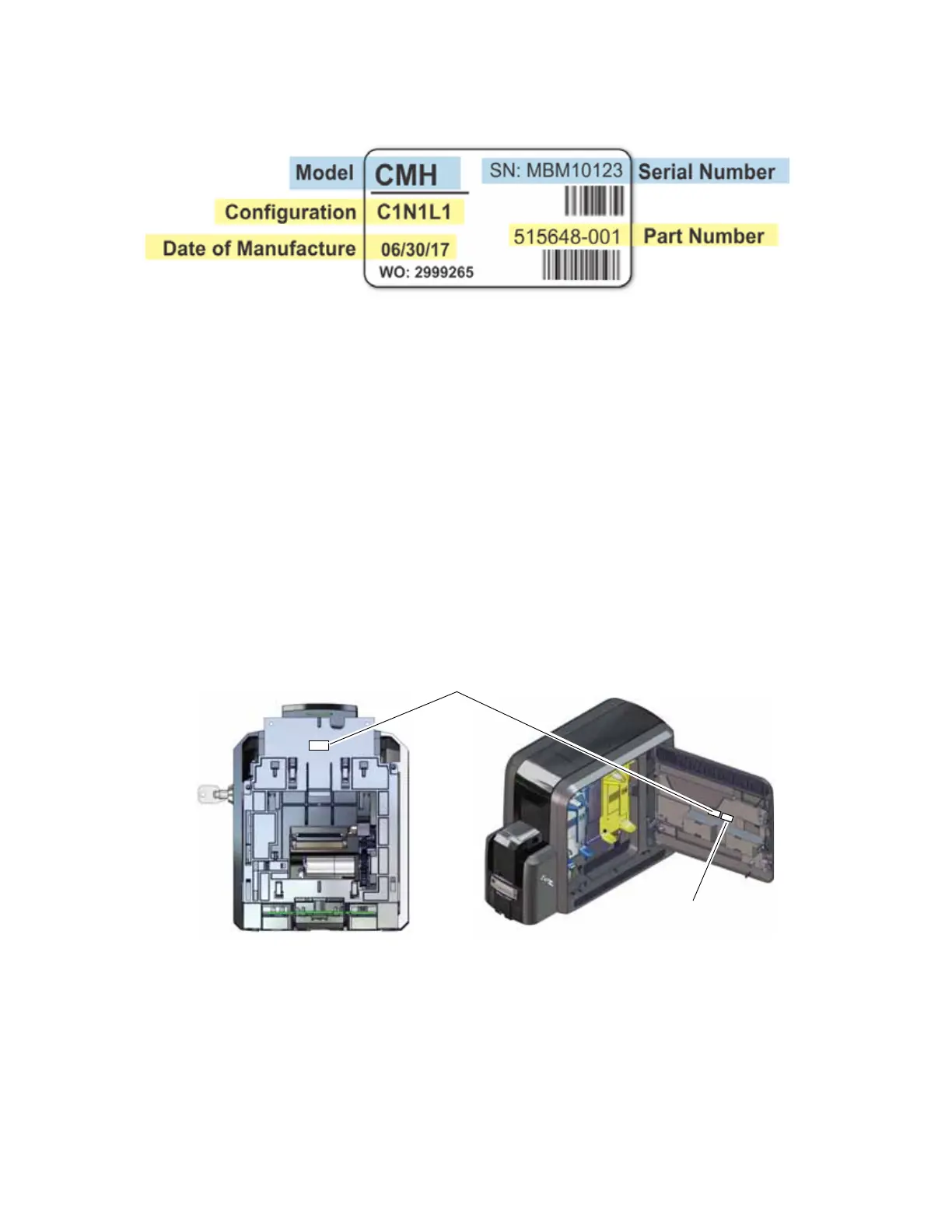

Single Hopper Configuration Label
The single hopper configuration label is located on the back of the modular single hopper. After
the hopper is attached to the printer, a second label should be added on the inside of the printer
access door, next to the printer configuration label.
The label shows the following information:
 Serial number
 Part number
 Configuration code
 Date and country of assembly
Option Configuration Code
Hopper Cassette Type C1=6 125-Card Removable Input Hoppers
Printer Type N1=CR805, CR825, or CE875
Locks L1=Multi-Hopper Lock
blank=No lock
Single Hopper Configuration Label
Printer Configuration
Label
