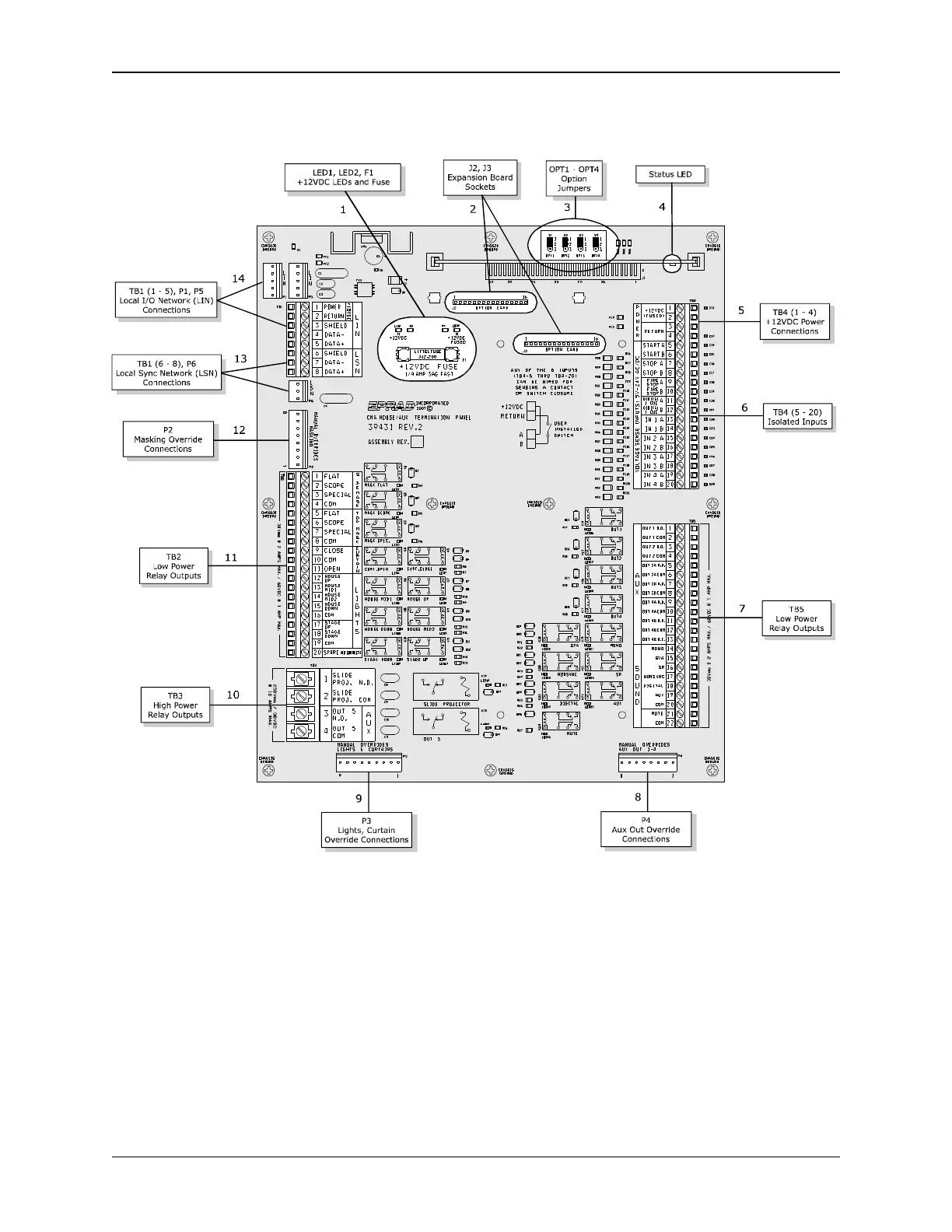

8.4 39431 House/Aux Termination Board
1) Power LEDs and Fuse - This indicates the status of the regulated +12 volt DC power and the
fused power for the TB4 (1-4) +12 volt power connections.
2) Optional Expansion Board - J1 and J2 socket strips are used for expansion boards. J2 supports
the 39436 Aux I/O board.
