4.3.10 Setup: Input Flag Names

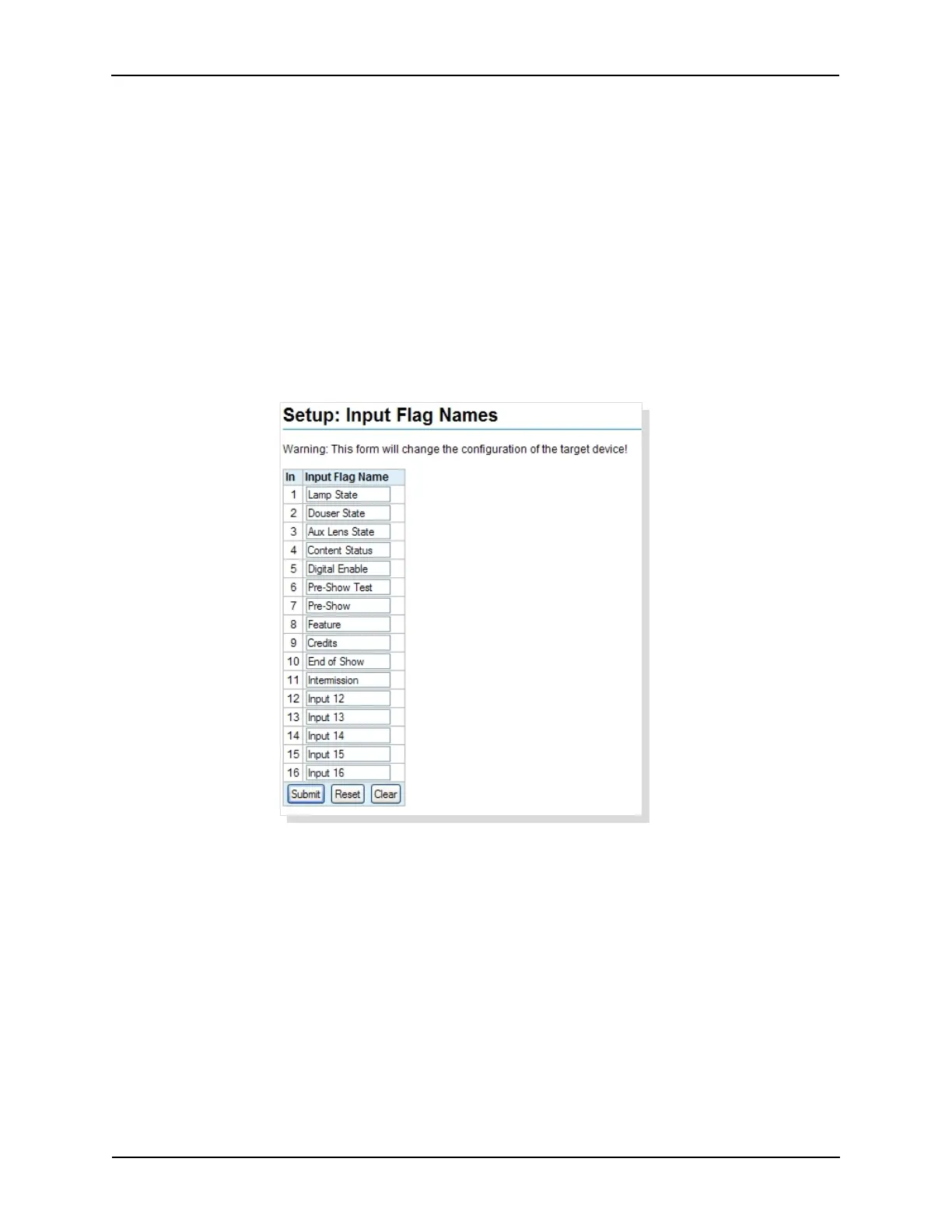

Click on Input Flag Names under General in the Setup Menu. This screen displays the digital Input
Names.
Input names can be used to label Input control flags based on their function. These names are
displayed on the I/O Board setup, I/O Flag Detail and Trigger Configuration screens and the macro
‘Exit If’ instruction.
The names can be edited with up to 14 text characters. Click inside the text box and type the name.
All characters are supported except:
double quote “ less than < ampersand &
single quote ‘ greater than > open bracket [
semi-colon ; backslash \ close bracket ]
Click the Submit button to save new names to the eCNA-10. The Reset button puts the original data
back. The Clear button removes the names from text boxes.
35
eCNA-10 Operation and Installation Manual Version 1.270-00
