A.2 Barco Digital Cinema Projectors

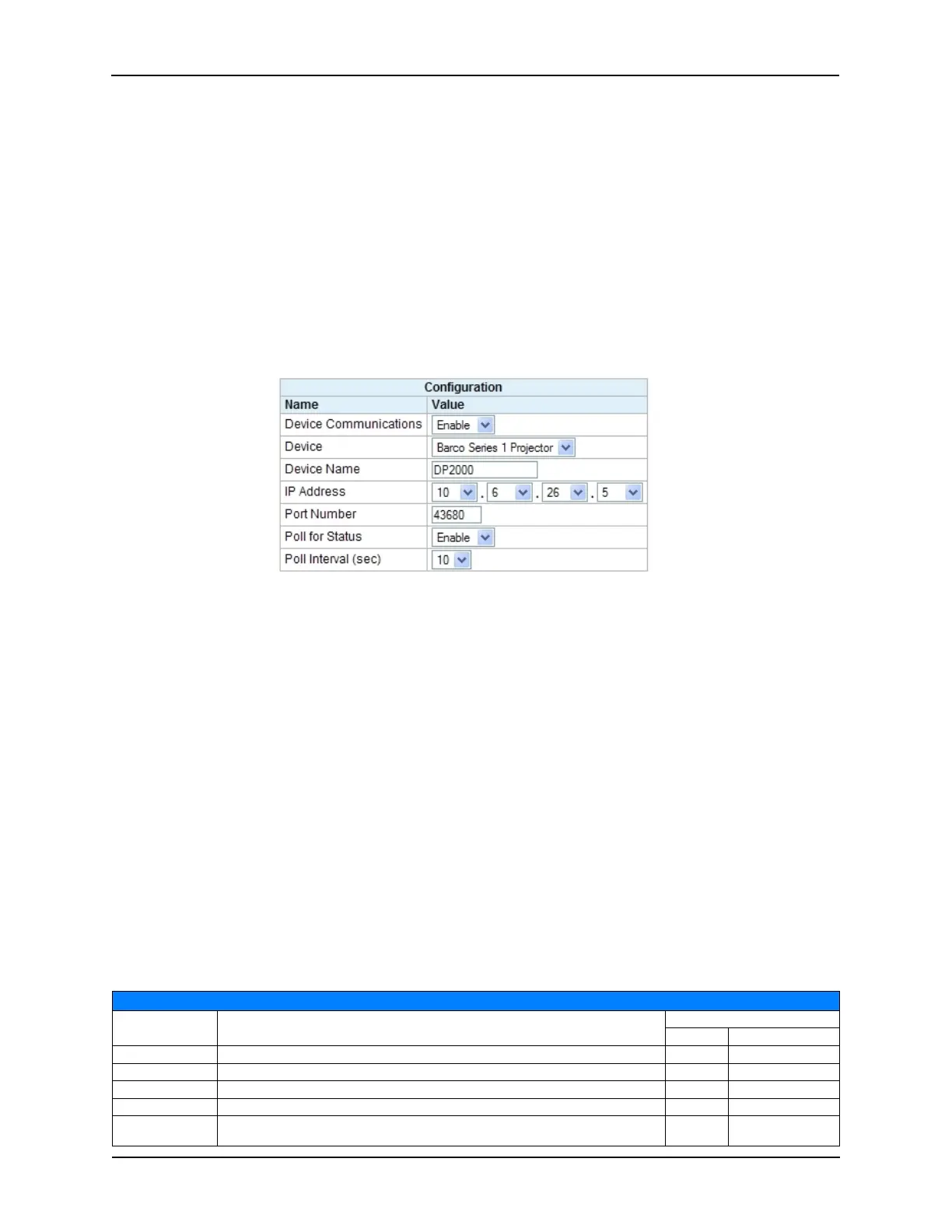

Configuration:
Series 1 Projector:
Series 1 projectors listen on TCP port 43680 for incoming connections. The Series 1 DP projectors
(DP100, DP90, DP1200, DP1500, DP2000, DP3000), have two IP addresses. One for the main
projector controller and one for the Texas Instruments DLP Cinema® front end. The IP address of the
projector (main controller) should be used.
Series 2 Projector:
Series 2 projectors listen on TCP port 43728 for incoming connections. The Series 2 projectors have a
single IP address.
In addition to user messages, the eCNA has built-in support for acquiring projector status. This
status is available to CAI clients. In order to get status, Device Communications and Poll for Status
must be Enabled. The Poll Interval is the time interval in seconds that the projector is polled for
status. The range is 2 to 60 seconds. 10 seconds is the default. If status is not required for the
application, it is best that Poll for Status remain Disabled.
Command Messages:
This is a list of commonly used control commands. The user only needs to enter the command
bytes(s) and any data bytes if applicable. The eCNA automatically inserts the Start byte, Projector
address, Checksum byte and Stop byte. A default Barco configuration file is available from EPRAD.
Command Structure:
(1) Start Byte Automatically inserted by eCNA (FEH)
(2) Address Byte Automatically inserted by eCNA (00H)
(3) Command Byte(s) Entered by user
(4) Data Bytes (optional) Entered by user
(5) Checksum Byte Automatically calculated and inserted by eCNA (00H - FFH)
(6) Stop Byte Automatically inserted by eCNA (FFH)
Barco Projector Control Commands
Name Description
Command Code
(3) (4)
Lamp Off This command sets the Lamp to Off 76 1A 00
Lamp On This command sets the Lamp to On 76 1A 01
Douser Open This command opens the mechanical lens douser 22 42 00
Douser Close This command closes the mechanical lens douser 23 42 00
Macro Execute This command executes a macro. The macro name must match exactly the
name stored in the projector.
E8 81 {Macro Name} 00
153
eCNA-10 Operation and Installation Manual Version 1.270-00
