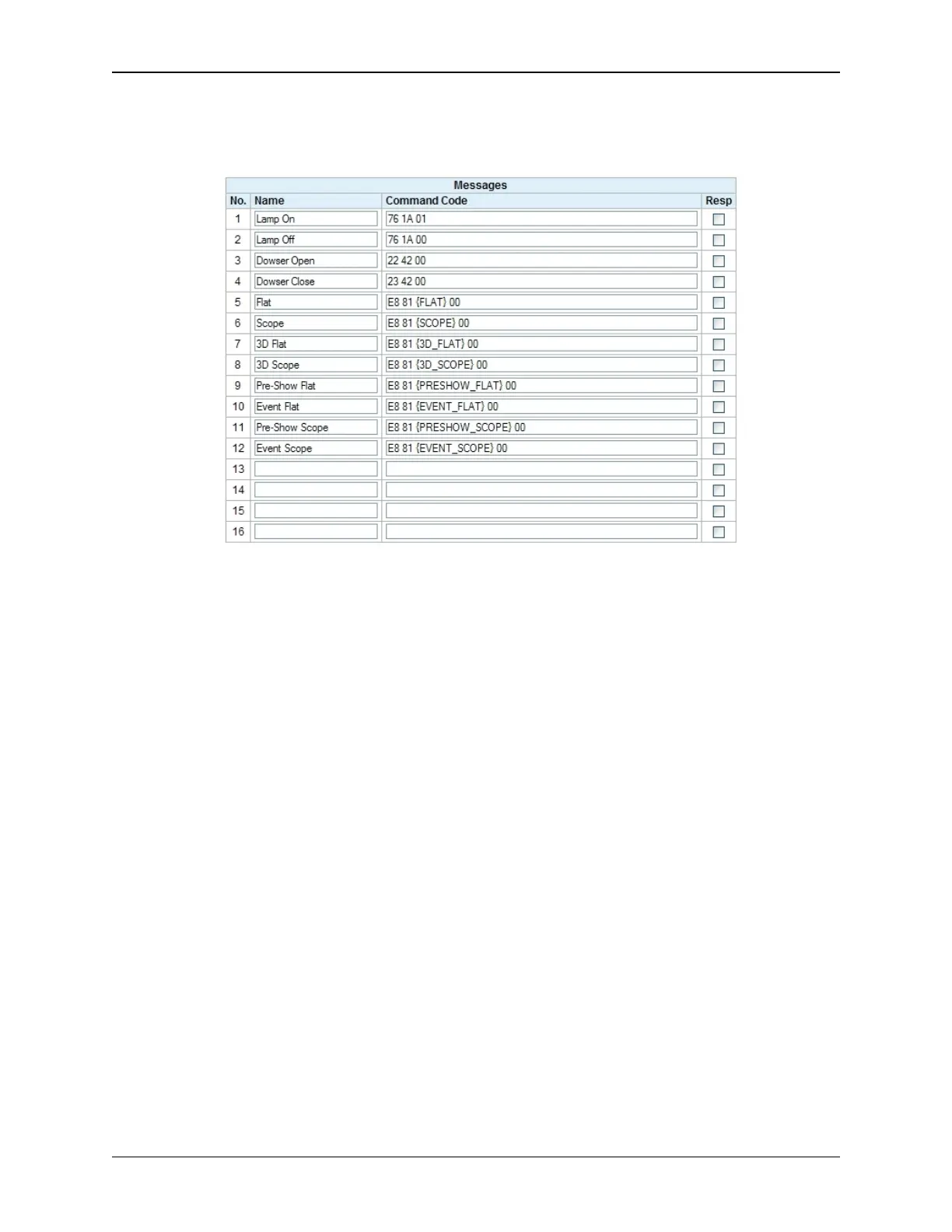

Barco projectors may support more control commands. If additional control is required, please

consult Barco projector documentation or call EPRAD.

The Resp checkbox should be unchecked for all Barco commands.
