4.3.11 Setup: CAI SendFx Names

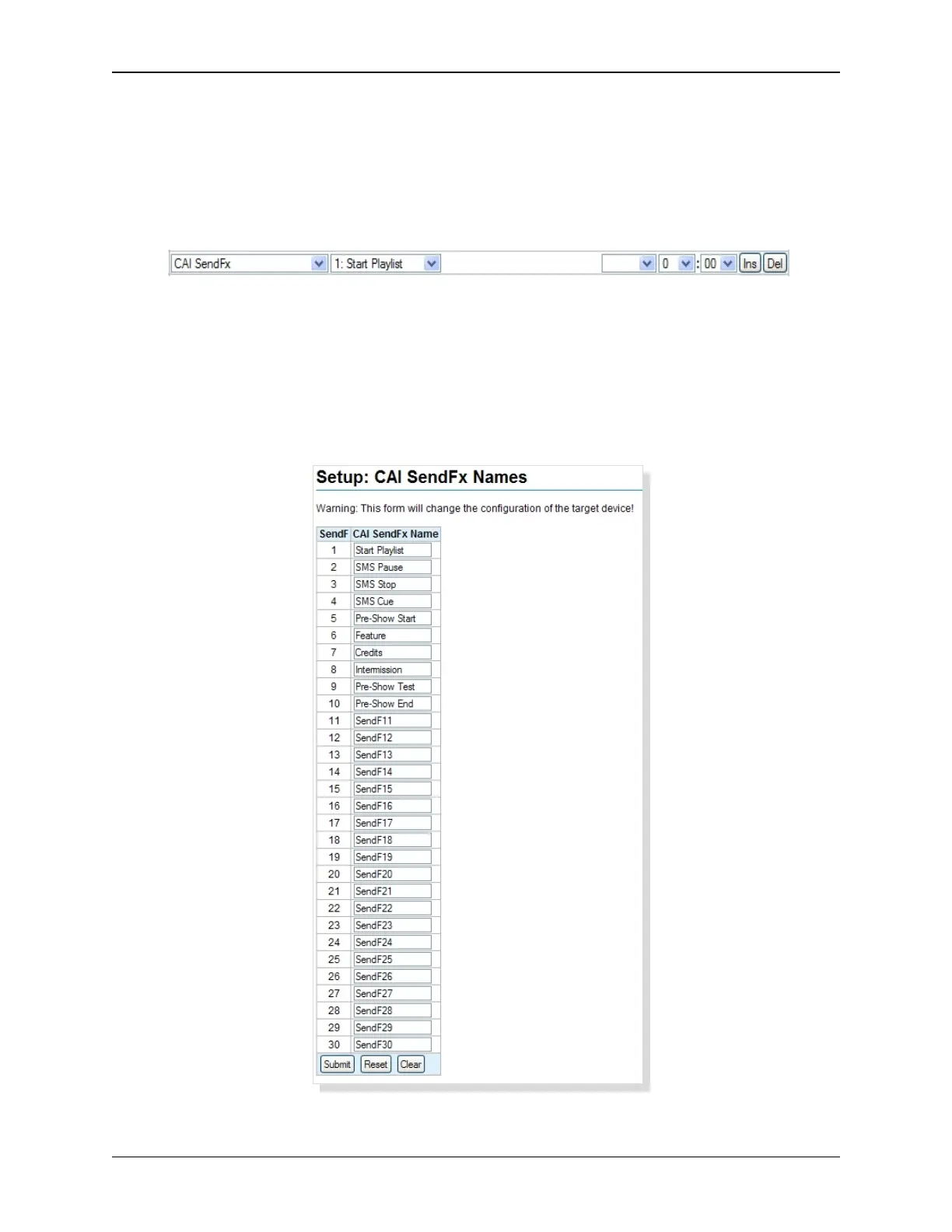

Click on CAI SendFx Names under General in the Setup Menu. This screen displays the names for the
SendFx EVENT Report messages.
User defined names can be used to label the SendFx messages based on their function. These names
are displayed in the CAI SendFx program/macro instruction.
The names can be edited with up to 14 text characters. Click inside the text box and type the name.
All characters are supported except:
double quote “ less than < ampersand &
single quote ‘ greater than > open bracket [
semi-colon ; backslash \ close bracket ]
Click the Submit button to save new names to the eCNA-10. The Reset button puts the original data
back. The Clear button removes the names from text boxes.
36
eCNA-10 Operation and Installation Manual Version 1.270-00
