5.3 Status: Local I/O Network

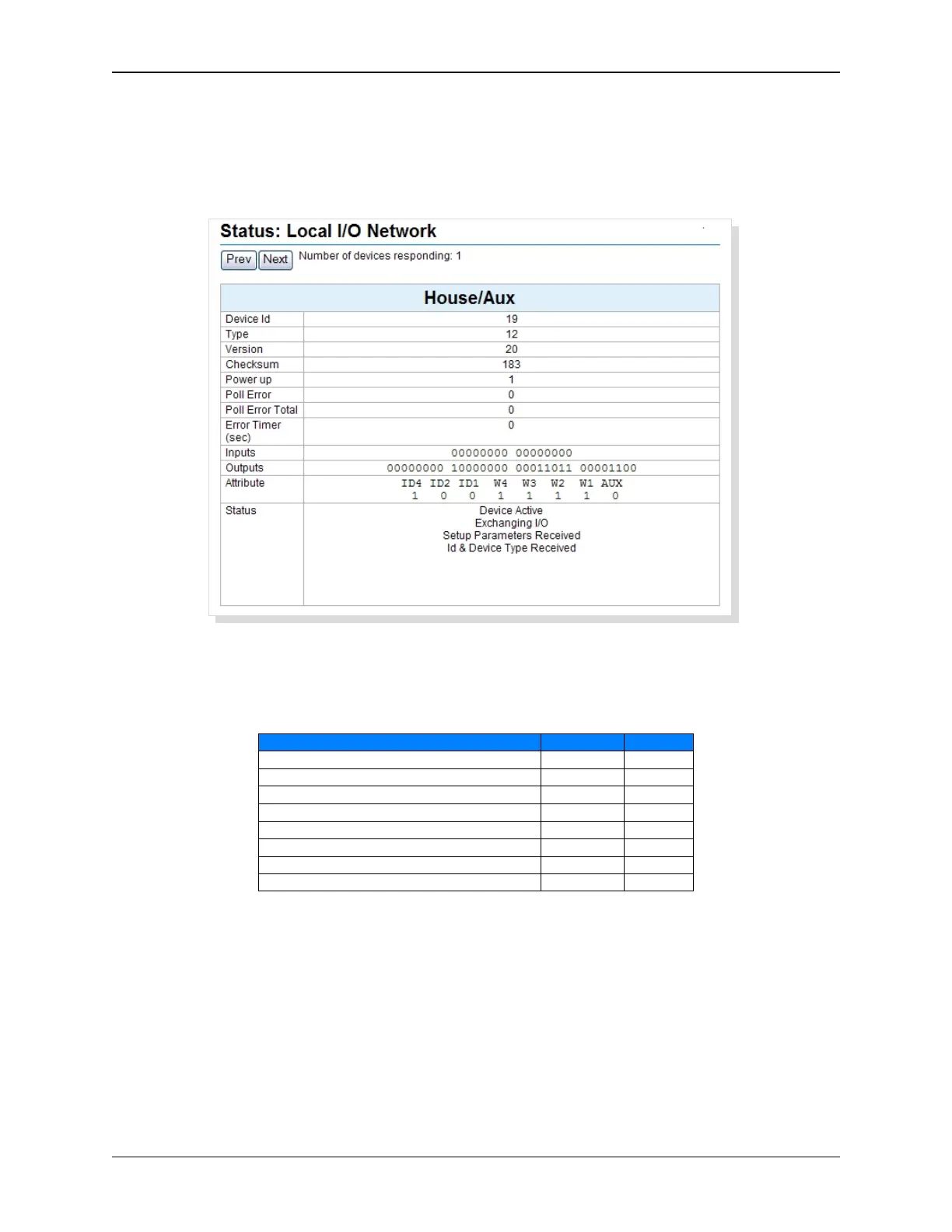

Click on Local I/O Network in the Status Menu. This screen displays the status of devices on the Local
I/O Network (LIN). Click on the Prev or Next buttons to view another device.
Device Id This is the network ID number of LIN device.
Type This is the device Type of the LIN Device.
LIN Device Name Device Id Type
QDC-400 #1 13 7
QDC-400 #2 14 7
QDC-400 #3 15 7
QDC-400 #4 16 7
GPIO Board #1 (39490) 17 10
GPIO Board #2 (39490) 18 10
House/Aux Termination Board (39431 / 39445) 19 12
LVM-250 Voltage Monitor 22 15
Version This is the firmware version of the LIN device.
Checksum This the firmware checksum number.
Power up This is the number of times the LIN device has powered up or reset since the eCNA-10
has been powered on.
Poll Error This is the number of times the eCNA-10 has polled the LIN device with no response. This
starts counting if the LIN device was once present and then lost communications.
Poll Error Total This is a history of the number of times the eCNA-10 has polled the LIN device with
no response since the eCNA-10 has been powered on.
