Setup & Operation 12. Option Units
100 RC180 Rev.17

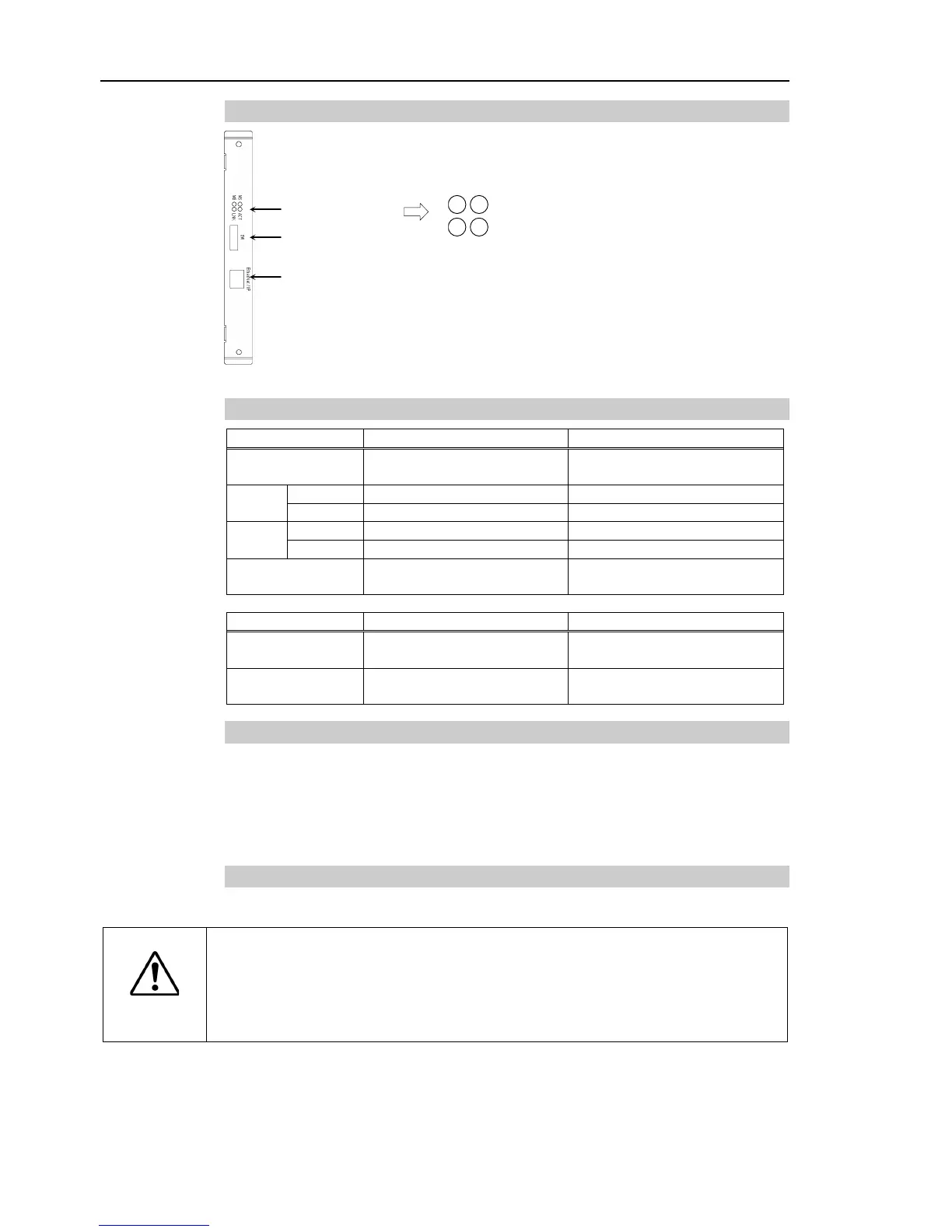

EtherNet/IP Appearance
Status Display LED
Configure Switch
EtherNet/IP Connector
NS
MS
ACT
LNK
MS LED : Module status display
NS LED : Network status display
LNK LED : Link status display
ACT LED : Communication packet
reception or transmission status
display
Refer to the following table for functions of
LEDs.
LED Description of EtherNet/IP
LED status
MS
NS
OFF Power supply OFF
Power supply OFF
or IP address not configured
GRN
ON
Master connected (executing)
Online operating
Blinking
Master connected (idling)
Waiting master connection
RED
ON
Non-recoverable error
Wrong IP address (duplication)
Blinking
Non-recoverable error
Connection time out
GRN/RED
alternate
Self-diagnosing Self-diagnosing
LED status
LNK
ACT
OFF No link
No communication packet
reception or transmission
ON Linking
Communication packet
reception or transmission
Board Installation of EtherNet/IP
Set all EtherNet/IP board configure switches OFF. If all EtherNet/IP board configure
switches are not OFF, reset error occurs.
All the EtherNet/IP communication configurations are set by the development software
(EPSON RC+ 5.0).
Wiring (EtherNet/IP)
Use a standard Ethernet connector for wiring to the board.
CAUTION

You can use the general Ethernet hub or Ethernet switch for the EtherNet/IP.
However, be sure to a use product complying with the industrial standards or
noise resistant Ethernet cable (STP cable). If you use an office use product or
UTP cable, it may cause communication errors and may not offer the proper
performance.
