Setup & Operation 12. Option Units
RC180 Rev.17 101
EtherNet/IP Confirmation and Configuration with EPSON RC+ 5.0
When EtherNet/IP board is installed to the Controller, it is recognized automatically.
Confirm whether the EPSON RC+ 5.0 has recognized the EtherNet/IP board by the
following procedure.

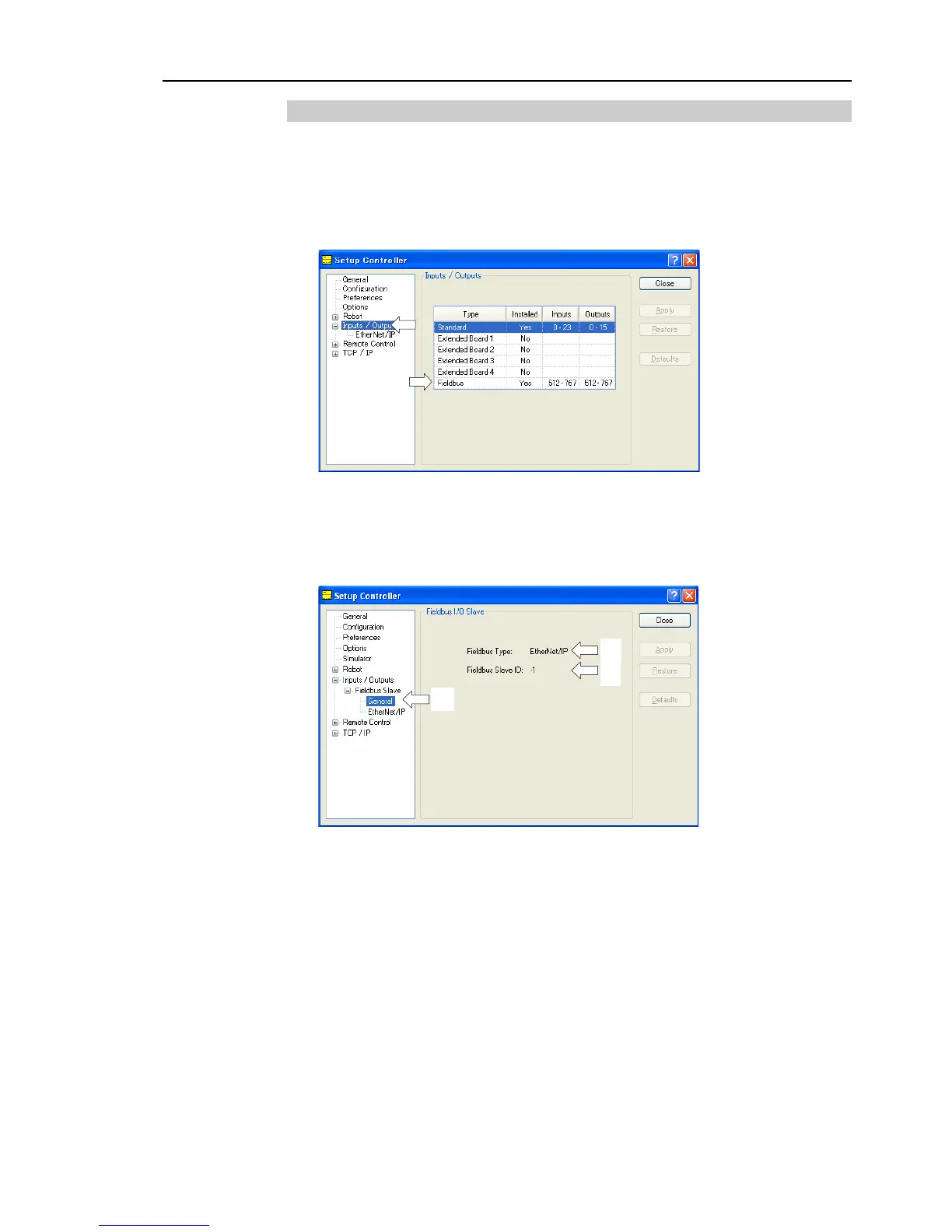

(1) Select EPSON RC+ 5.0 menu-[Setup]-[Controller] to display the [Setup Controller]
dialog.
(2)
(3)
(2) Select the [Inputs / Outputs].
(3) Make sure that following is displayed.
Fieldbus-Installed : Yes
(4) Click the “+” displayed on the left of [Input / Output] and select the [General].
(4)
(5)
(5)
(5) Make sure that following are displayed.
Fieldbus type : EtherNet/IP
Fieldbus station ID : −1 (Fixed)
