Maintenance 3. Controller Structure
122 RC180 Rev.17
Cable Layout Drawing

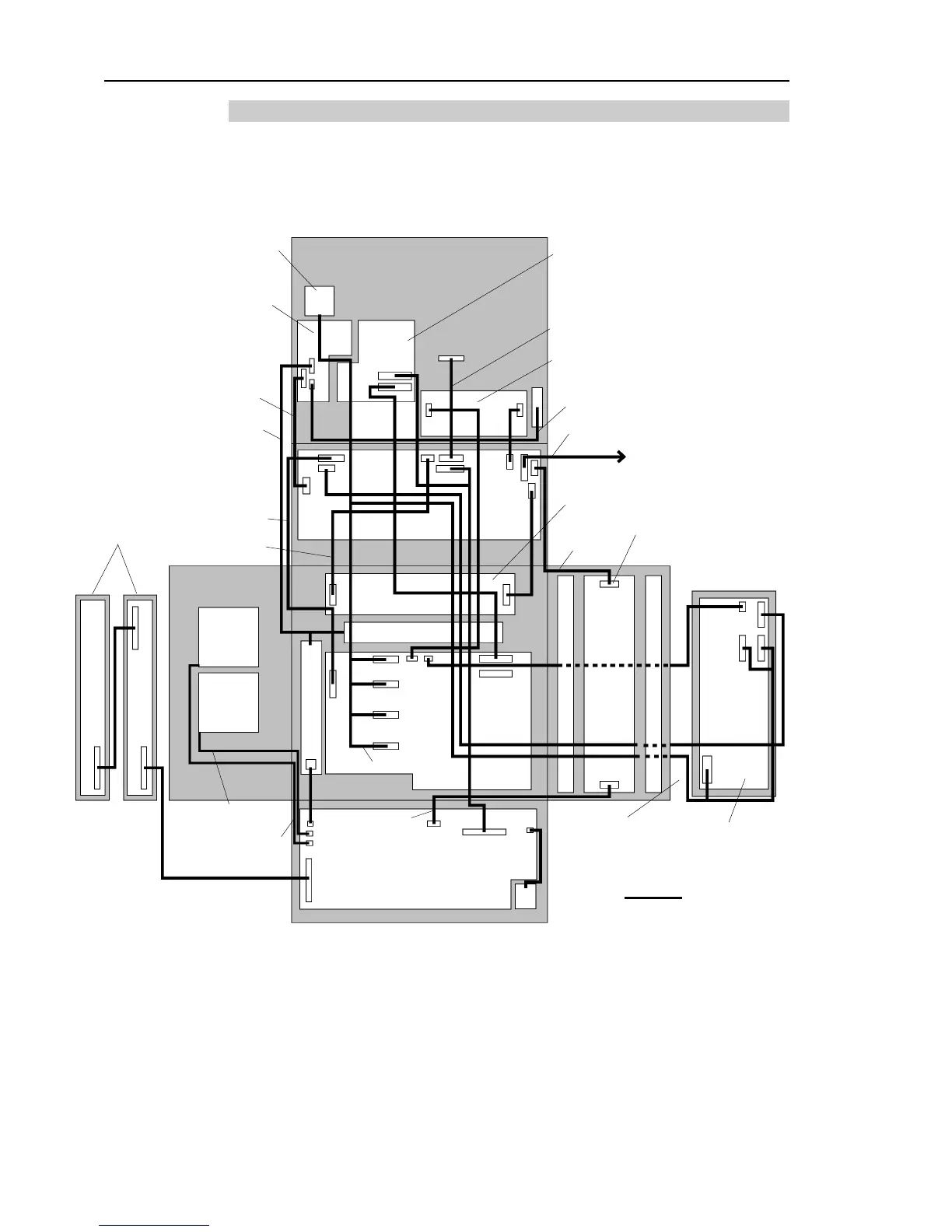

For cable connections inside the Controller, refer to the following figure.
This diagram is a simplified development view inside the Controller.
The numbers indicated such as (1), (2), (3) correspond to the following cable list.
RC180
(1)
to Noise Filter
(2)
(3)
(4)
(5)
(6)
(9)
(10)
(11)
(12)
(13)
(15)
(17)
(18)
(19)
(20)
DPB
Regeneration Board
DMB
CPU Board
M/C POWER
Switching Power Supply (5V)
Switching Power Supply (24V)
Switching Power Supply (15V)
Encoder I/F Board
Fan
Fan
Back Plane Board
Cable
(16)
(7)
(21)
(14)
ProSix
Driver Unit I/F Board
(21) (22)
(8)
