Maintenance 6. Maintenance Parts Replacement Procedures
RC180 Rev.17 149

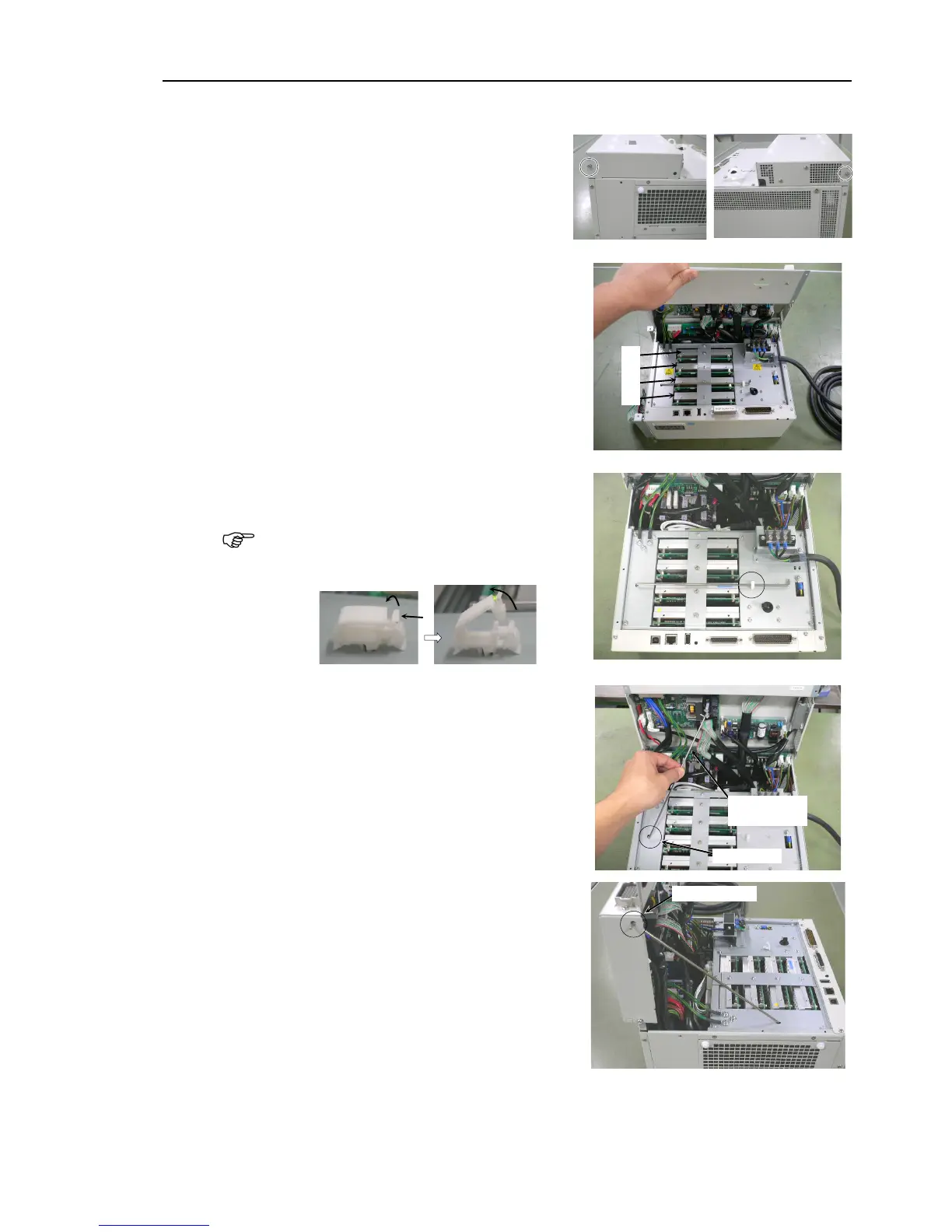

(4)
Loosen the two screws on
the side of the front side.
(5)
Open the front cover and hold it open.
Motor Driver
1: Axis 1
2: Axis 2
3: Axis 3
4: Axis 4
1
2
3
4
(6)
Open the clamp for the front cover
support bar.
Push the latch A shown in the photo first
and then open the clamp.
A
(7)
I
nsert the top of the support bar into the
support hole as shown without moving
the base point.
Front Cover
Support Bar
Base Point
Support Hole

NOTE
