Maintenance 6. Maintenance Parts Replacement Procedures
150 RC180 Rev.17

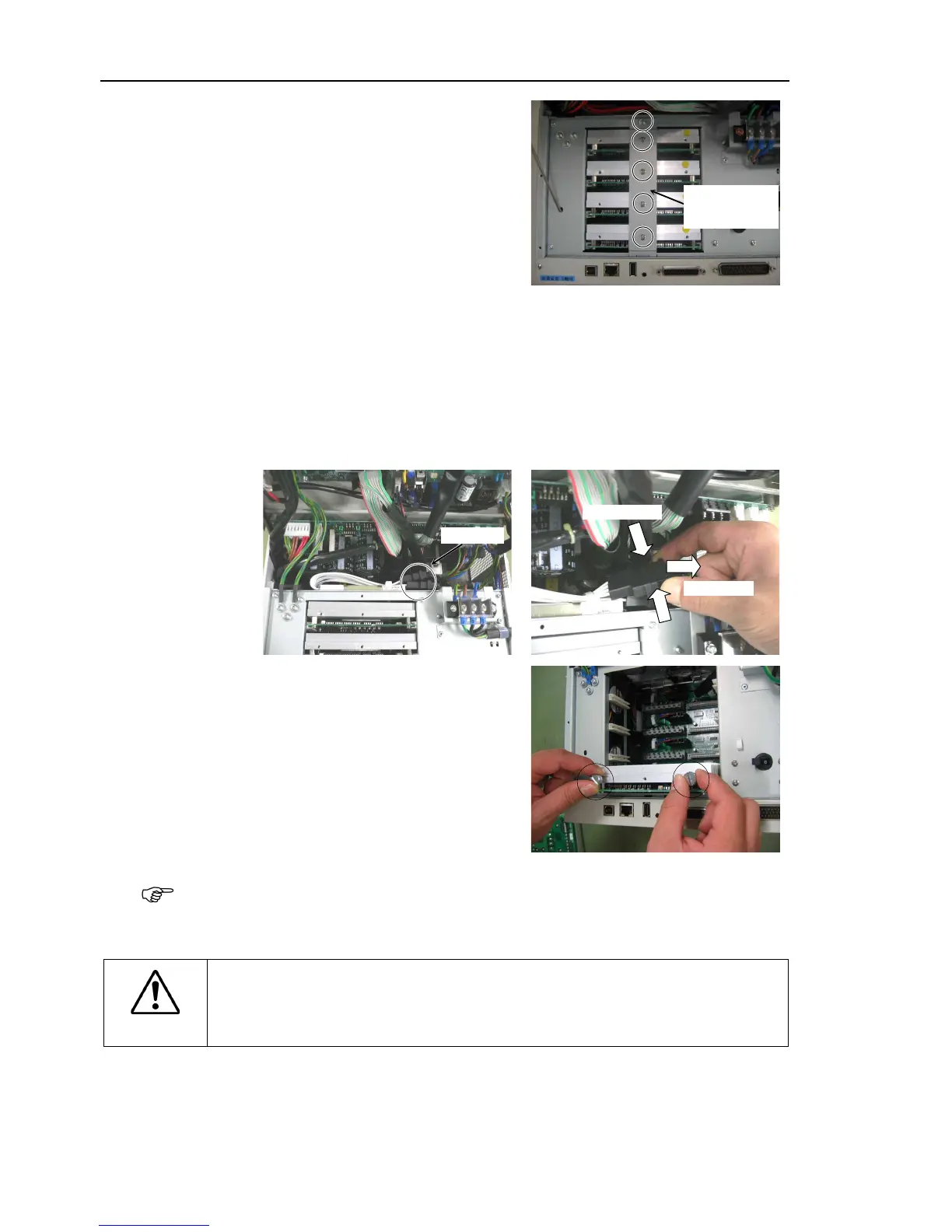

(8)
Remove the
five screws from the Motor
Driver mounting bracket.
Motor Driver
Mounting
Bracket
Connected to the G10 or G20 series manipulator
Refer to Remove step (9) and remove the connector.
Connected to the
G1, G3, G6, RS, C3 or S5 series manipulator
Go on to Remove step (10).
(9)
When replacing the first or the second motor driver, compress both ends of the
connector
connected to the driver to pull out the connector.
(Remove the connector connected to the replacing motor deriver.)
Connector
2. Pull out
1. Compress
(10)
Secure the two thumb head screws
removed in step (3) to the Motor
Driver
heat sink.
Pull out the Motor Driver by pulling the
two thumb head screws together evenly.
When using the G
10 or G20 series
manipulator, a cable and a connector are connected
to the first
and the second motor driver.
When removing the motor driver, make sure to keep the connector from being stuck.
CAUTION
■
Be careful not to cut your fingers.
The Motor Driver connector may be connected tightly. The connector may be
disconnected suddenly by a
strong pull and may cause your fingers to be cut by
the Motor Driver heat sink.

NOTE
