DISASSEMBLY & ASSEMBLY Parts Diagram 63
Confidential

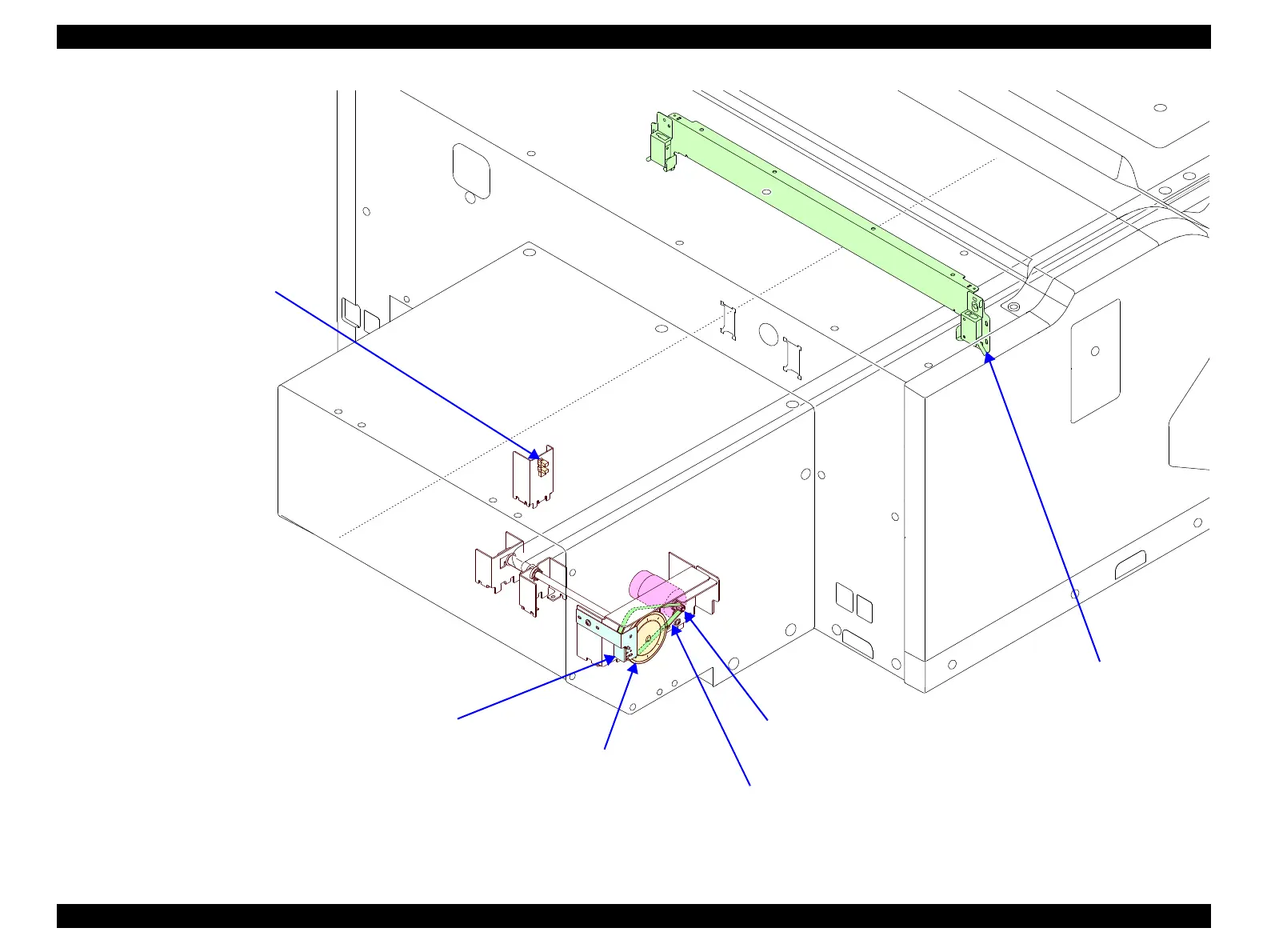

Figure 3-8. Table Feed Mechanism (2)
 TF ENCODER BOARD ASSY (p. 183)
Detects the TF Scale patterns to control the
table feeding (operation of the TF MOTOR).
 TF MOTOR ASSY (p. 185)
Drives the TABLE ASSY.
 TF TIMING BELT (p. 186)
 TF SCALE (p. 187)
 REAR TF SENSOR (p. 182)
Detects the TABLE ASSY.
 MEDIA SENSOR FRAME ASSY
(p. 179)
Detects the thickness of the Media
(T-shirt).
