Epson SC-F2000 User Manual

SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Parts Diagram 62
Confidential

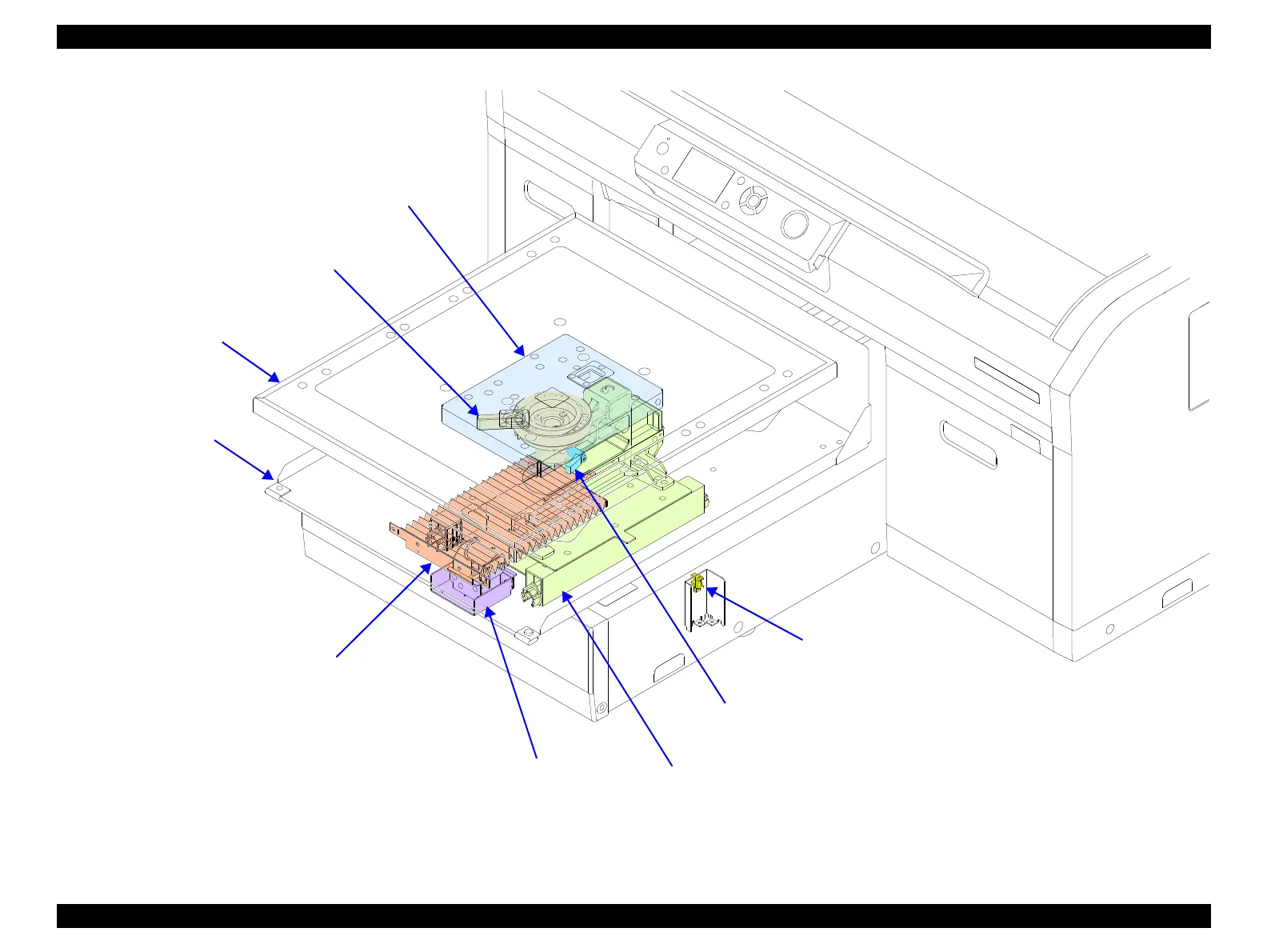

Figure 3-7. Table Feed Mechanism (1)
 FRONT TF SENSOR (p. 181)
Detects the TABLE ASSY.
 PG SWITCH LEVER ASSY (p. 169)
Adjusts the height of the PLATEN in nine
steps.
 FIXING LEVER (p. 167)
Secures the PG SWITCH LEVER ASSY.
 BELLOWS ASSY (p. 173)
 TF PULLEY ASSY (p. 177)
 TABLE ASSY (p. 174)
Activates the PLATEN.
 TRAY BOTTOM
FRAME ASSY (p. 171)
 PARALLEL ADJUSTMENT PLATE (p. 168)
Adjusts the PLATEN parallelism.
 PLATEN (p. 71)
The rest which a T-shirt is
set.

Epson SC-F2000 Specifications

General

Brand	Epson
Model	SC-F2000
Category	Printer
Language	English
