Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
MAINTENANCE Overview 181
Confidential

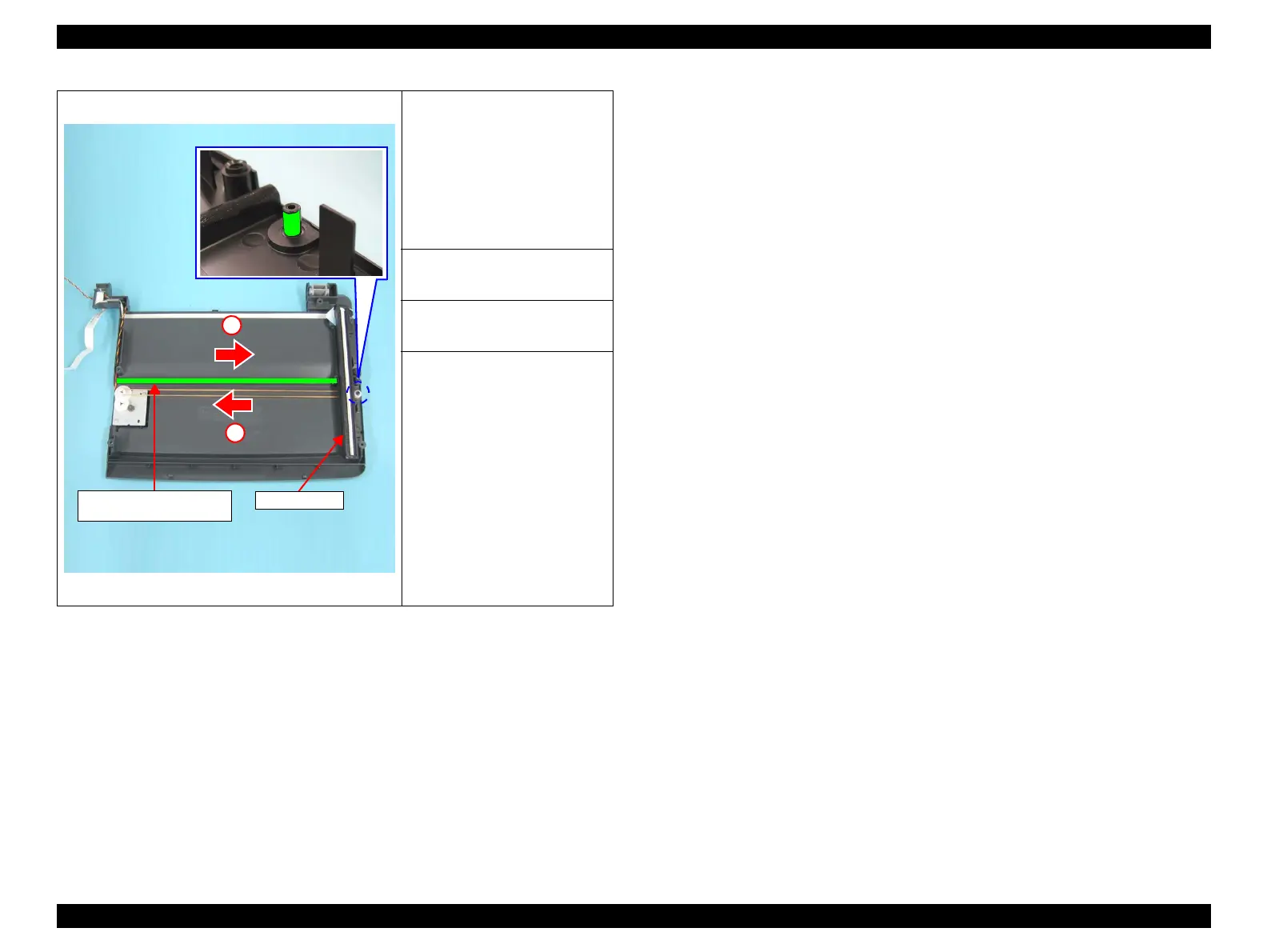

Figure 6-9. Lubrication on the Guide Rail of the Lower Scanner Housing
<Lubrication Point>
1. Protrusion of the Lower
Scanner Housing (contact
point with the center of the
Driven Pulley)
2. On the surface of the Guide
Rail of the Lower Scanner
Housing.
<Lubrication Type>
G-45
<Lubrication Amount>
Sufficient quantity
<Remarks>
 Use a brush to apply G-45.
 Follow the procedure below to
apply to the surface of the
Guide Rail.
1. Move the CIS Assy to the right
and apply grease on the rail.
2. Move the CIS Assy to the left
and apply grease on the rail.
3. If the CIS Assy is
contaminated with grease,
wipe off the grease with a
cloth.
1
2
CIS Assy
Guide Rail of Lower
Scanner Housing
