Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 68
Confidential
Table 3-7. Check point for the Maintenance request according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
•–
An error is indicated on the LED and
STM or LCD.
Waste Ink Pads ---
1. Change the Waste Ink Pads and initialize the
Waste Ink Pad Counter. (Refer to
Chapter 5
“ADJUSTMENT” (p.161))

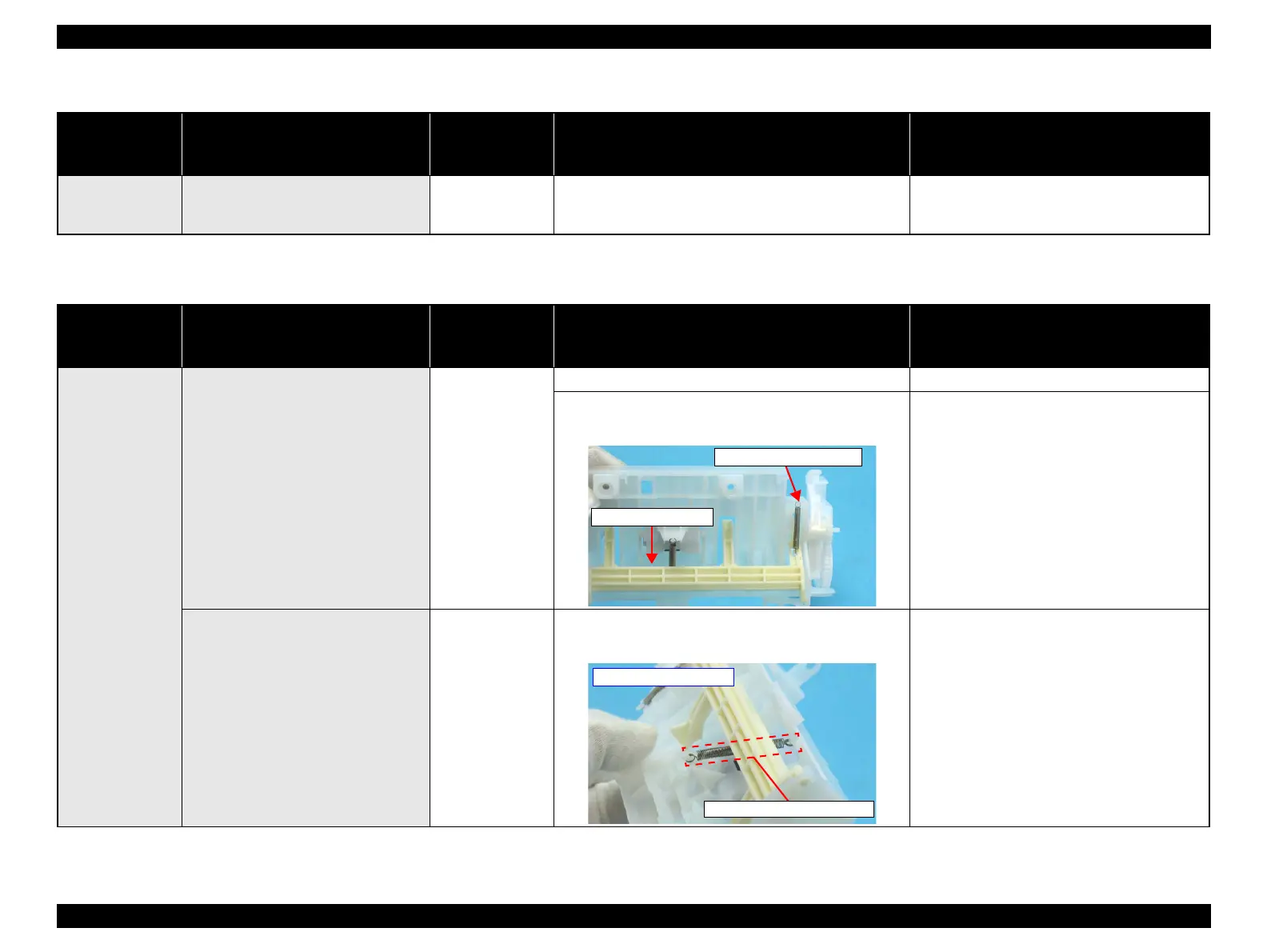

Table 3-8. Check point for Paper jam error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
• Outside HP
A paper feeding sequence failed to feed
the paper, but a paper ejection sequence is
performed.
ASF Unit
1. Check if the ASF Unit is properly installed. 1. Install the ASF Unit properly.
2. Check if the Paper Back Lever operates correctly in the
paper loading sequence.
2. Set the Extension Spring 0.099 between the
ASF Frame and the Paper Back Lever.
Paper is being resent during paper feeding
operation.
ASF Unit
1. Check if the Extension Spring Retard operates correctly
in the paper loading sequence.
1. Set the Extension Spring Retard between the
Retard Roller Unit and the ASF Frame.
Paper Back Lever
Extension Spring 0.099
Extension Spring Retard
Backside of ASF Unit
