Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 69
Confidential
• Operation
•–
The top edge of paper does not go
through between the EJ Roller Unit and
the Star Wheel.
Star Wheel Holder
Assy*
1. Check if the Star Wheel Holder Assy is correctly
assembled.
1. Reassemble the Star Wheel Holder Assy
correctly.
2. Check if the Star Wheel Holders does not come off. 2. Reassemble the Star Wheel Holders correctly.
EJ Roller Unit*
1. Check if the EJ Roller Unit is correctly assembled. 1. Reassemble the EJ Roller Unit correctly.
2. Check if the Spur Gear 51.5 is not damaged. 2. Replace the EJ Roller Unit with a new one.

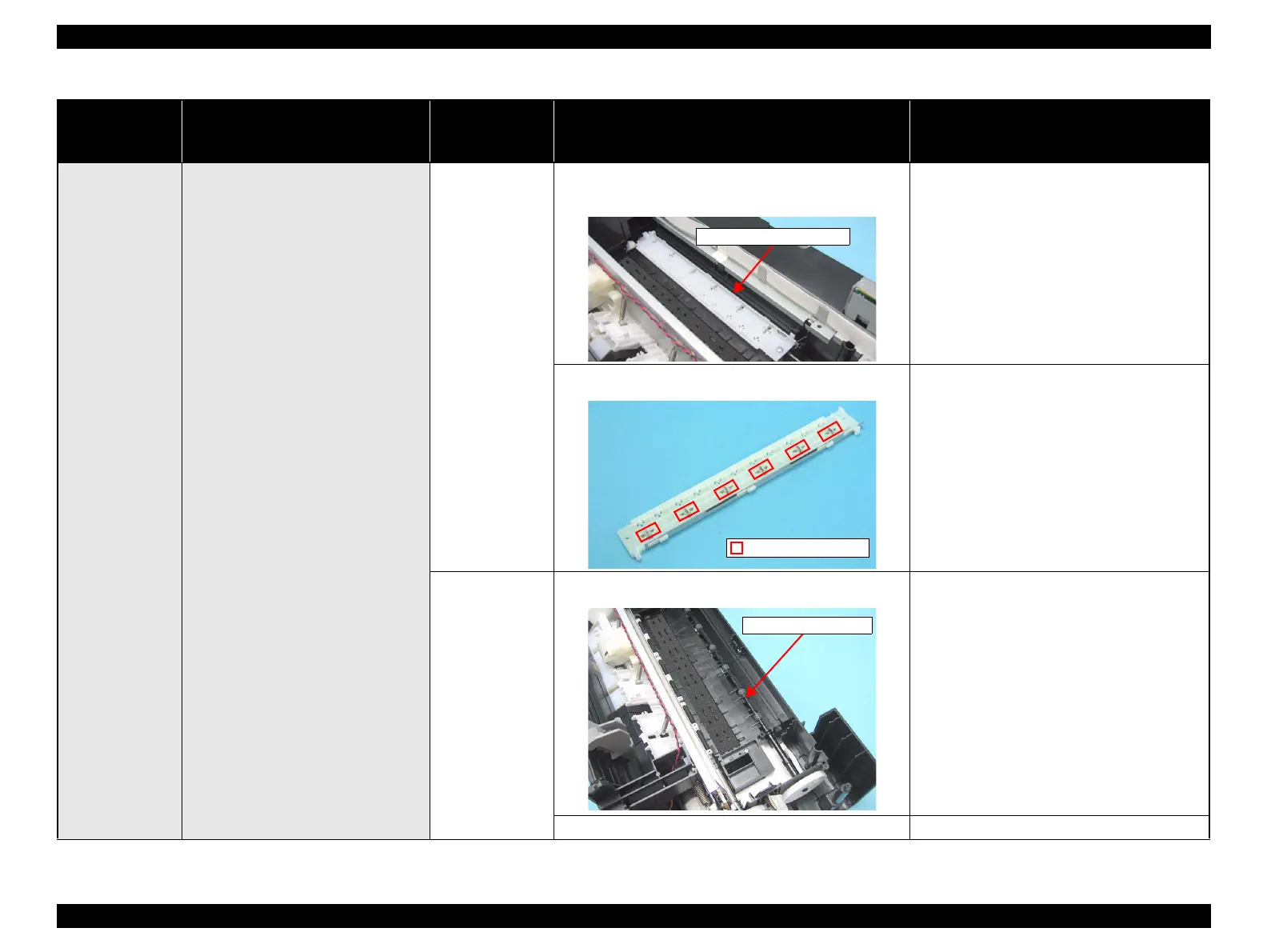

Table 3-8. Check point for Paper jam error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
Star Wheel Holder Assy
Star Wheel Holders
EJ Roller Unit
