Main Bus Routing5.5.2
There are up to 32 Main sections each comprised of individual main busses in a pan
format. For example, one section with a stereo format uses two busses, another section
with a 5.1 format uses six busses. See Conguring Main and Group Busses on page 112
for main section setup. The CM404 center section has bus master functions (see Chapter
6: Busses).
On
On
On
On
Select
Select
Select
Select
Copy Paste
D
C
B
A
On
On
On
On
Select
Select
Select
Select
Copy Paste
R St
L St
Main SectionsMain Busses
Expand Section
Expand Section
Expand Section
Expand Section
To Main Sections
To Main Sections
Assign
Section D
Assign
Section C
Assign
Section B
Assign
Section A
Assign R
Assign L

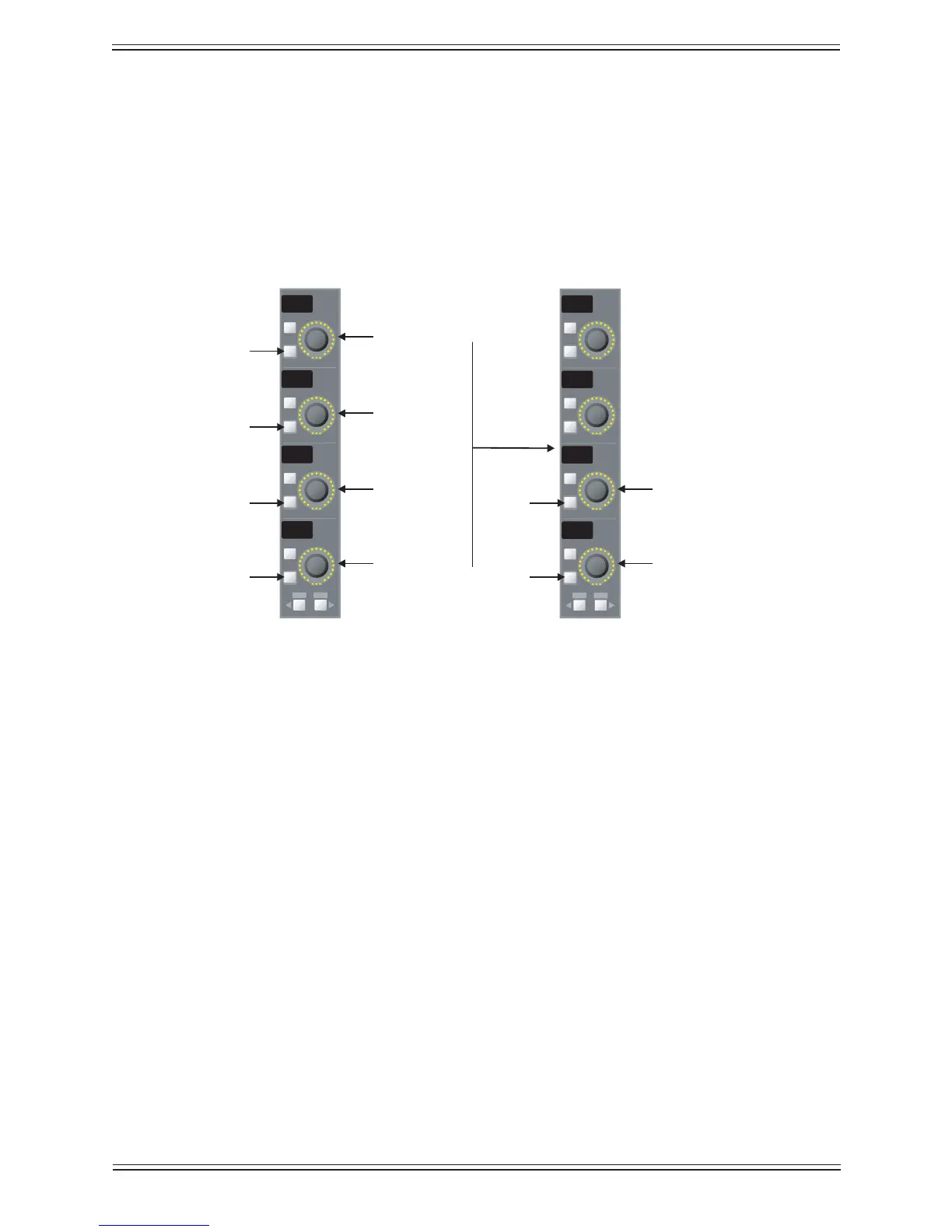

Main Section Routing KnobsetFigure 5-17
To route the post-fader channel signal to a Main section, press the Main Knobset Select
key. This assigns the rst four Main sections to the knobs if they have been dened. If
they have not been dened, the knob display is blank. Press the ► key to display addi-
tional Main Section Routing pages if there are more than four.
The lower key to the left of each knob turns that section on/off.•
Pressing the knob displays the individual busses of that main section on the knobs. •
The lower key to the left of the knob toggles that bus on/off.
Hold the Main key and press the Pan key to key Pan in/out for the Main sections. The
Pan key lights dimly in other modes to show that Pan is active in main and/or group bus
routing. The Main key also lights dimly in other modes to show that the channel is as-
signed to one or more Main sections.
