Euphonix Max Air Mixing Console Operation Manual Channels and Strips
110
Mix Minus5.6
Each channel has a mix minus output that can be used to send a unique feed to an an-
nouncer. The Mix Minus Reference Bus is the console’s single mono mix minus bus. A
channel is routed to it by pressing the Bus key. Pressing the Main- key creates a feed
for an announcer’s ear piece on the channel’s mix minus output. The channel’s signal is
subtracted from the mix minus bus, allowing the announcer to hear all voices on the bus
except their own.
To enable talkback functions:
Physically connect the CM404’s rear panel 1. External or Internal Talkback Mic
XLR to the MC524’s Talkback 1 input.
Physically connect the MC524’s 2. Talkback 1 output to a spare A/D input on an
AM713.
In the Patch view, patch the A/D Source into the 3. Utility Destinations/Slate-TB_
In.
Holding down the Talk key (located to the left of the Swap key above the fader) switch-
es the talkback mic into the channel’s mix minus output.
Mix Minus Output
Post
Processing
Pre
Fader
Mix Minus Processing
On
Off
On
Talk
Switch
Subtract
-
Gain
From
Mix Minus
Ref Bus
To
Mix Minus
Ref Bus
From
Talkback
Mic
+
Bus Switch
OffOn
Off
Mix-
Switch
Off
On
Pre
Switch

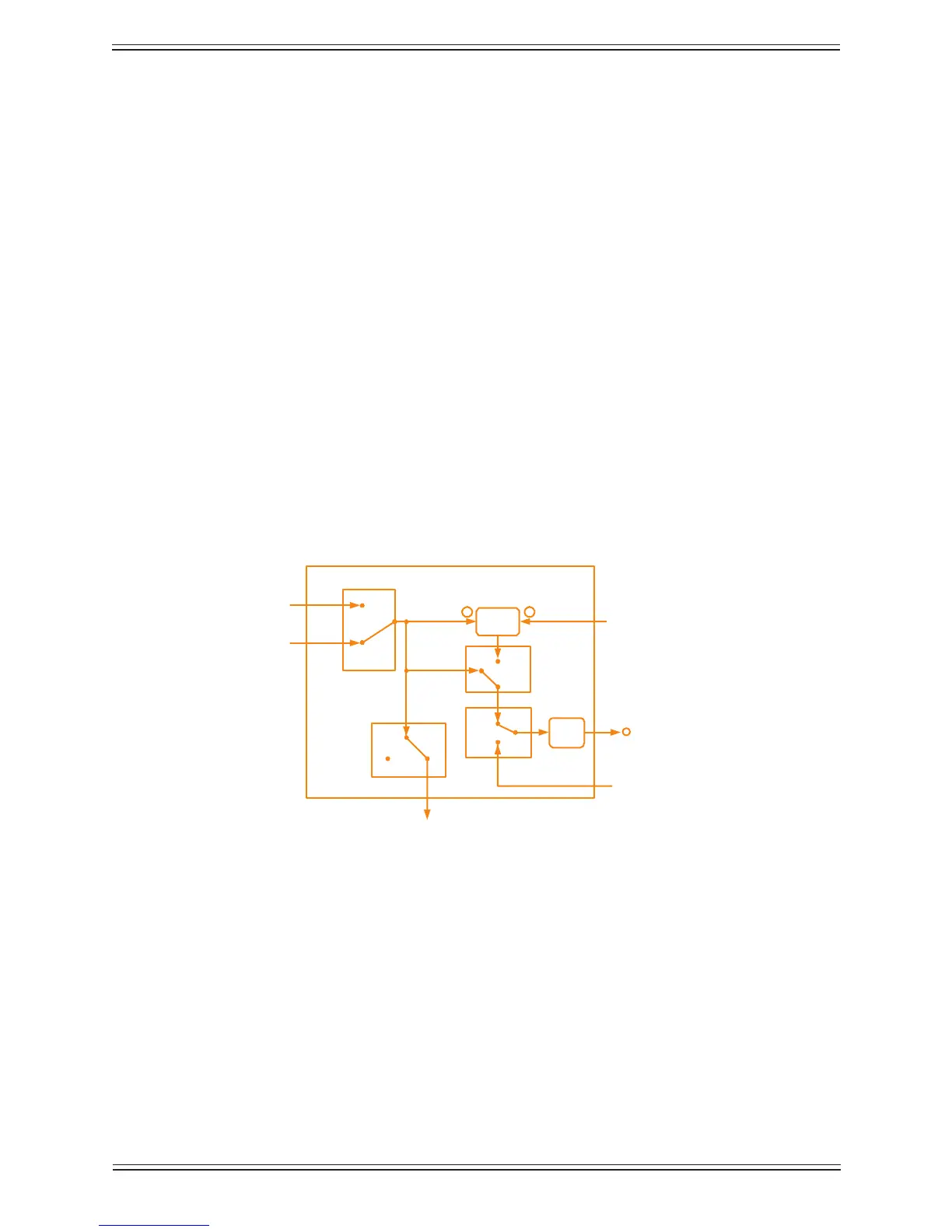

Mix Minus ProcessingFigure 5-18
The Pre/Post Selector is set from the Mix Minus Bus Conguration view on the Touch-
screen (see Mix Minus on page 119). It is not controlled from the channel strip.
There is a gain control just before the Mix Minus Output. This is controlled from the Mix
Minus Bus Conguration view on the Touchscreen. It is not set from the channel strip.
