Monitors3.8
Setting up the monitors is the nal step to getting sound to the speakers. Note that only
certain monitor outputs can handle surround outputs.
Externals Main Sections Aux Snds
CR
Monitors
8 Out (max 7.1)
Mon A
8 Out (max 7.1)
Alt 2
Stereo
Alt 1
6 Out (Max 5.1)
Main
8 Out (max 7.1)
Mon B
Stereo
Mon C
Stereo
Mon D
Stereo
Monitor Selector
Rtn
Out

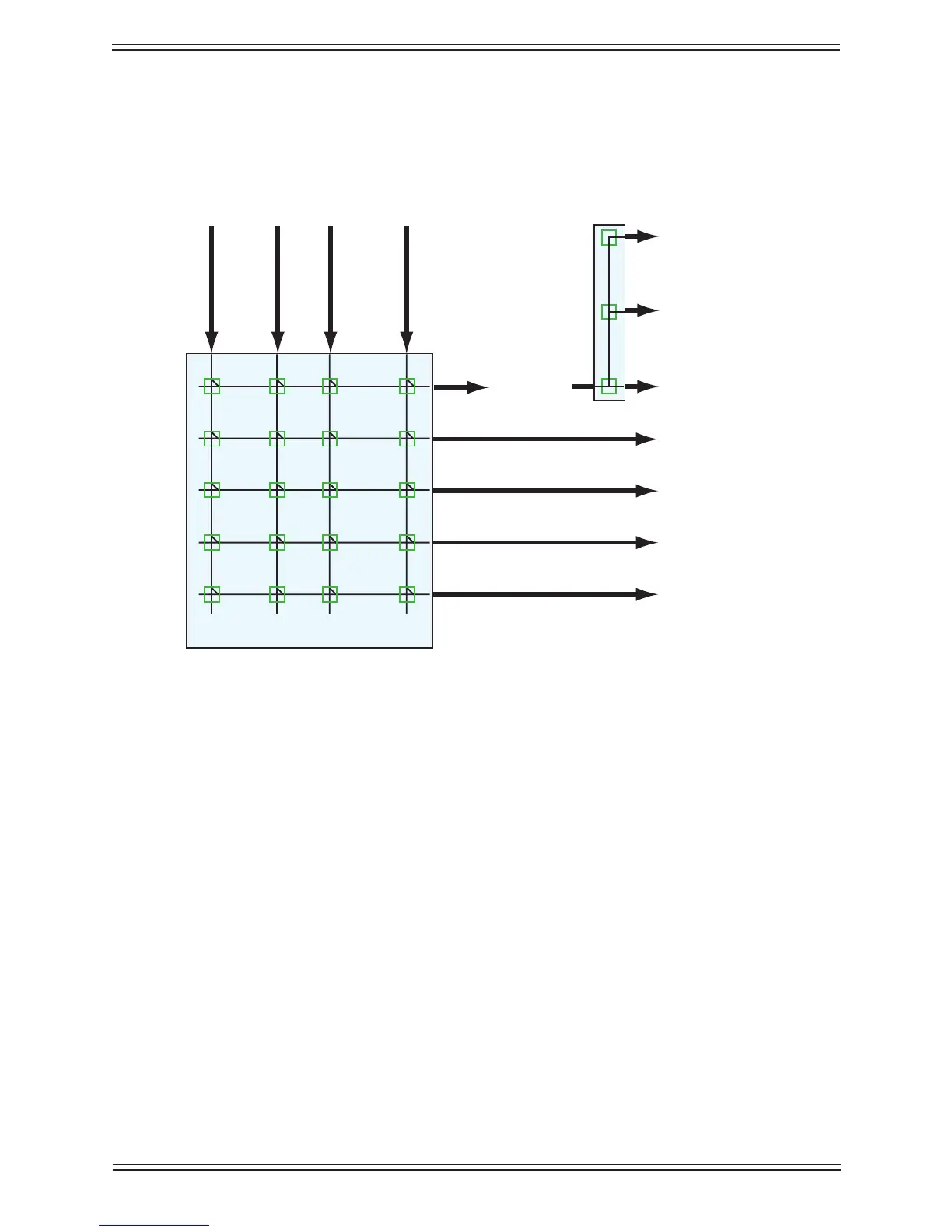

Monitor RoutingFigure 3-3
Control Room Monitors
Press the 1. Setup button in the Control Room Monitor area of the Super Channel on
the surface.
Select the 2. CR Source tab.
Select the appropriate source from the screen.3.
In our example the fth Main section should be labeled Prog and has the main
program output.
The three buttons labeled Main Spkrs, Alt 1, and Alt 2 allow using three different
speaker sets in the control room.
Monitor A–D
The four speaker sets labeled Mon A–D can be used for additional monitoring including
green room feeds, oor foldback, etc. Setup is simple: press the Setup button at the top-
right of the Super Channel section to bring up the source options for these monitors.
