Euphonix Max Air Manual

Euphonix Max Air Mixing Console Operation Manual Event System
171
Output11.7
The Output area has two sections. The top contains a list of output actions for the event
selected in the Event List. These actions occur only if the input conditions for the se-
lected event (combined with their logical operator) yield “True”. The lower area shows
the properties of the selected output. Set the outputs using the same methods as the in-
puts (see Table 11-2 for available output types and settings).

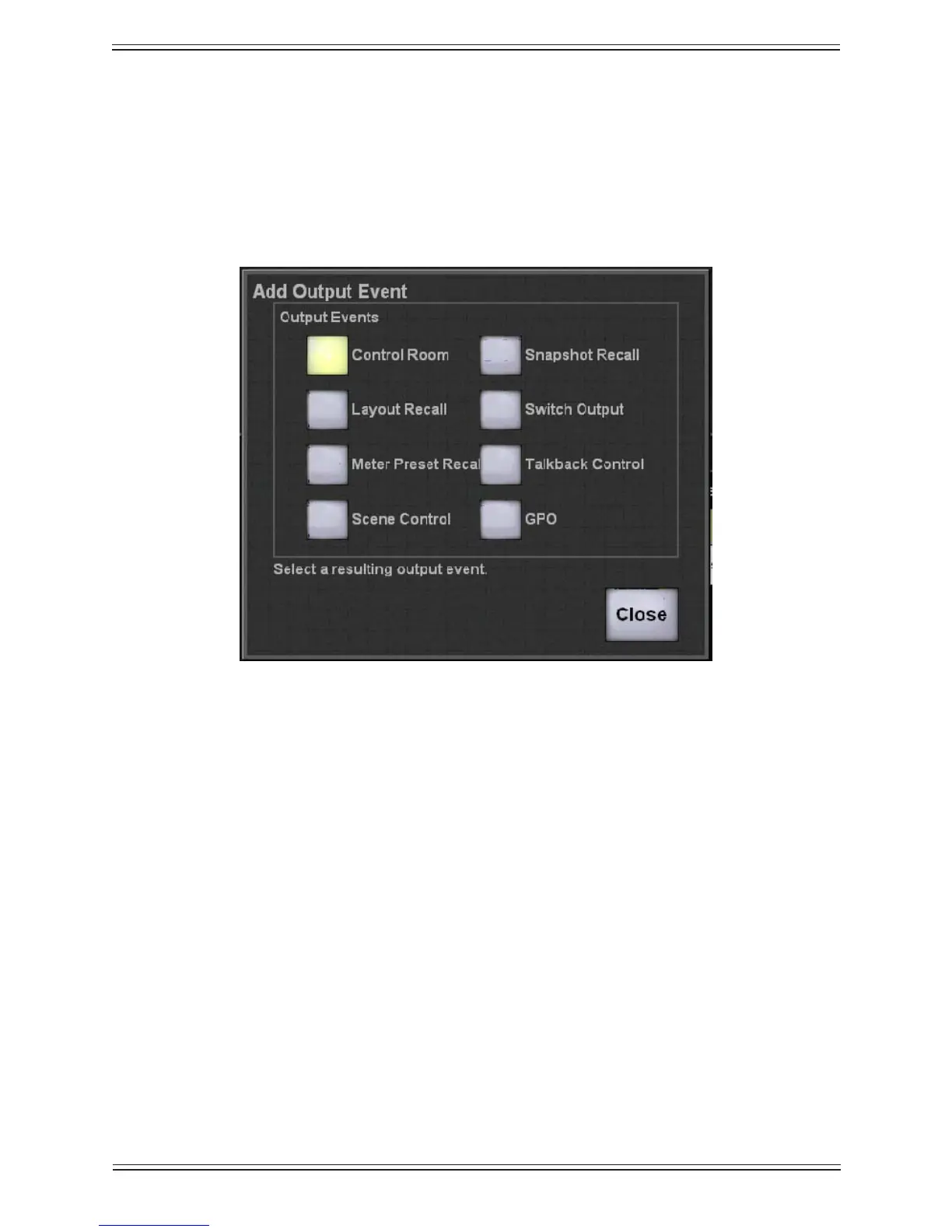

Add Output Event PopupFigure 11-3
Deleting Events11.8
Delete an event by selecting the event, input, or output and pressing the Delete Selection
button at the bottom-center of the Events screen.
Event Trigger on Title Load11.9
Touch the Main Menu System button, then the Preferences tab to access the “Event
Trigger on Title Load” preference. Enabling this preference will force an automatic
GP132 “refresh” of all relay states when the title is loaded. All internal console param-
eters included in Events programming will be refreshed as well.

Euphonix Max Air Specifications

General

Brand	Euphonix
Model	Max Air
Category	Music Mixer
Language	English
