Euphonix Max Air Mixing Console Operation Manual Center Section
141
SetupSetup
OnOn
OscillatorOscillator
Setup
Talk To
Mon A
Talk To
All
Custom
Talk To
Mon B
Talkback / SlateTalkback / Slate
CM404 OscillatorFigure 7-15
On:• Toggles the oscillator on/off.
Setup:• Displays the Oscillator Setup popup.

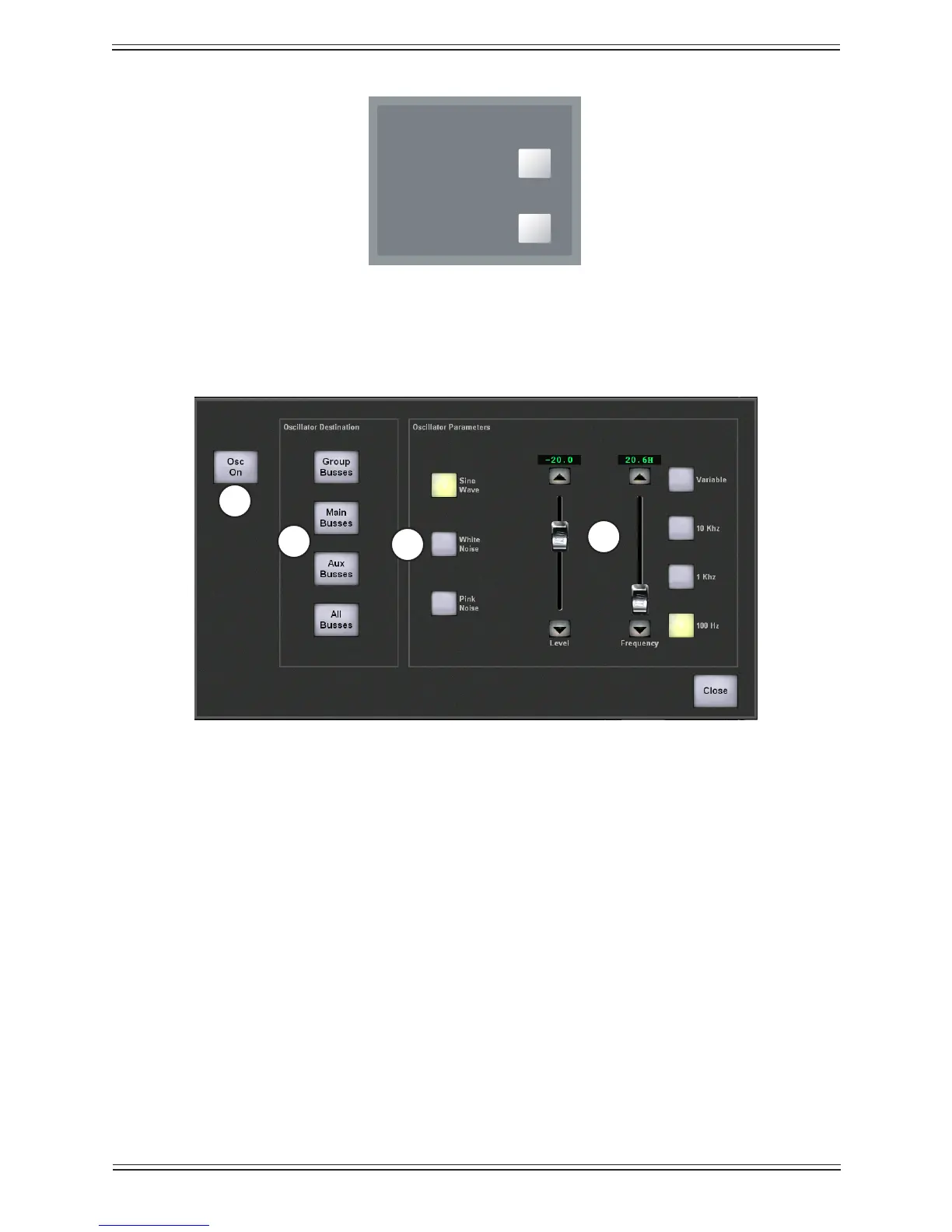

Oscillator Setup PopupFigure 7-16
Set the Oscillator destination by touching the Group Busses, Main Busses, Aux Bus-
ses, or All Busses keys (4).
Turn the oscillator on by activating the Osc On button (1). Select the oscillator type by
touching the Sine Wave, White Noise, or Pink Noise keys (2). These keys intercancel
so only one type can be selected at a time.
Select the oscillator frequency by touching the 100 Hz, 1 kHz, or 10 kHz keys to the
right of the faders (3). In addition, there is a Variable frequency button above the 10
kHz button. Activate this button and use the Frequency fader to set the frequency (20
Hz to 21 kHz). All of the frequency keys intercancel.
Set the oscillator level by moving the Level fader (111 dB of gain).
4
3
2
1
