Euphonix Max Air Manual

Euphonix Max Air Mixing Console Operation Manual Touchscreen
83
Meters4.11
Select the Meters Main Menu button to display the Meters View. There are four tabs
along the bottom: Presets, Screen, Fader, and Setup.
Presets4.11.1
After conguring the meters using the Screen, Fader, and Setup tabs discussed below,
the conguration can be captured as a preset, named and recalled for later use.

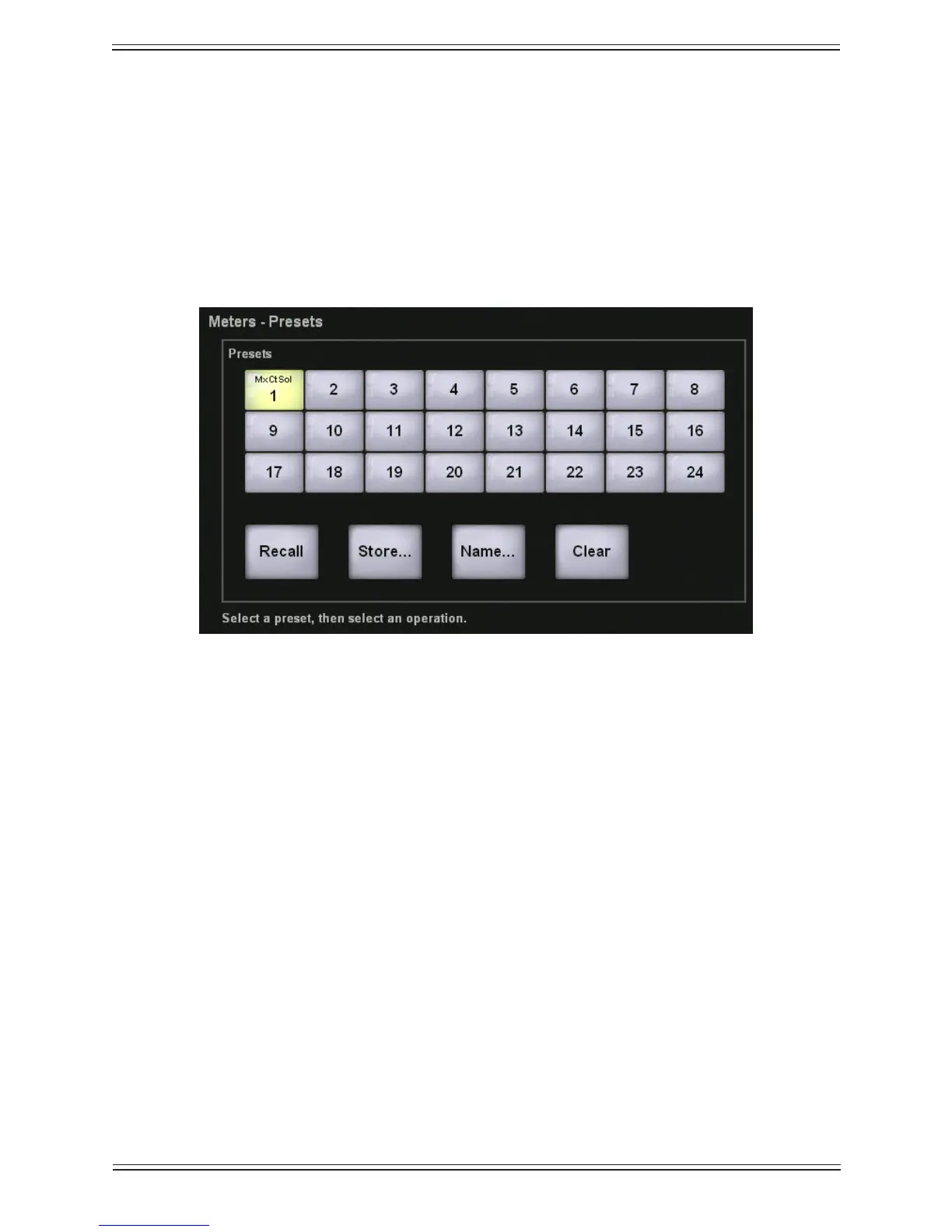

Meters-Presets PopupFigure 4-40
Select a numbered preset button. Touch the Store button to store the current meter con-
guration to that preset. Touch the Name button to assign an 8-character name in the
keyboard popup.
To recall a preset, touch the desired preset button and then touch the Recall button.
To delete a preset, touch the desired preset button and then touch the Clear button.
