Select the 1. Cabling tab (1 in Figure 4-17).
Select the 2. MADI Out Ports sub-category (2 in Figure 4-17).
The list shows seven Mic/Line Interfaces but congure only those wired to the
DF66 (i.e., Mic1 and Mic2).
Touch and drag through the cells next to Mic1 and Mic2 in the 3. MADI Out column
(3 in Figure 4-17).
The cells highlight green and the names appear in the Sources column of the Se-
lected Sources and Destinations area (4 in Figure 4-17).

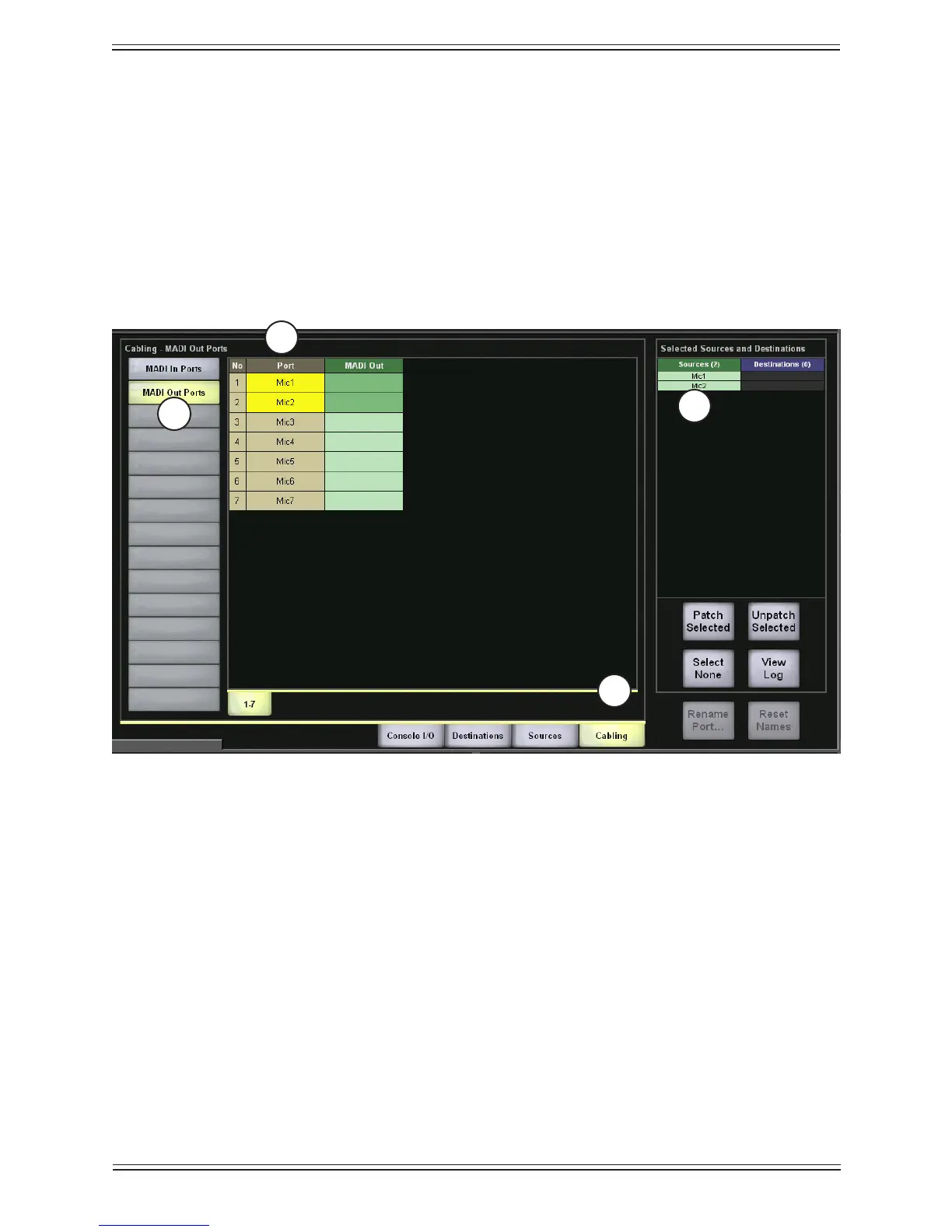

Cabling: MADI Out PortFigure 4-17
Select the 4. MADI In Ports sub-category (1 in Figure 4-18).
Touch and drag through the cells to the right of the two Frame1 inputs Frame1-1 5.
and Frame1-2 (2 in Figure 4-18).
The cells highlight green and the names appear in the Destinations column of the
Selected Sources and Destinations area (3 in Figure 4-18).
4
3
2
1
