Filters7.1.4
The lters section controls two lters for the selected channel. The In key (6) switches
the entire lters section in/out. The In key to the left of the knob (7) switches that indi-
vidual lter in/out. The Filter 1 and Filter 2 knobs control the frequency of lter 1 and 2,
respectively. The Type key toggles through the lter types: LPF (low-pass), HPF (high-
pass), BPF (band-pass), NCH (notch). The Soft Knobs key (4 in Figure 7-3) maps all
lter parameters onto the Soft Knobs. The Filters Select key (5) selects the entire lter
section for a Clear function.
Insert7.1.5
Each channel has an insert point with a send and return that can be patched in the Patch
View. Press the In key (1 in Figure 7-4) to toggle the insert on/off for the selected chan-
nel.
InIn
Low GainLow Gain Lo Mid GainLo Mid Gain Hi Mid GainHi Mid Gain High GainHigh Gain
Low FreqLow Freq Lo Mid FreqLo Mid Freq Hi Mid FreqHi Mid Freq High FreqHigh Freq
ShelfShelf ShelfShelf
Band
In
Band
In
Band
In
Band
In
Band
In
Band
In
Band
In
Band
In
Soft
Knobs
Soft
Knobs
EQ
In
EQ
In
EQ
Select
EQ
Select
InsertInsert
EQEQ
Low QLow Q Lo Mid QLo Mid Q Hi Mid QHi Mid Q High QHigh Q

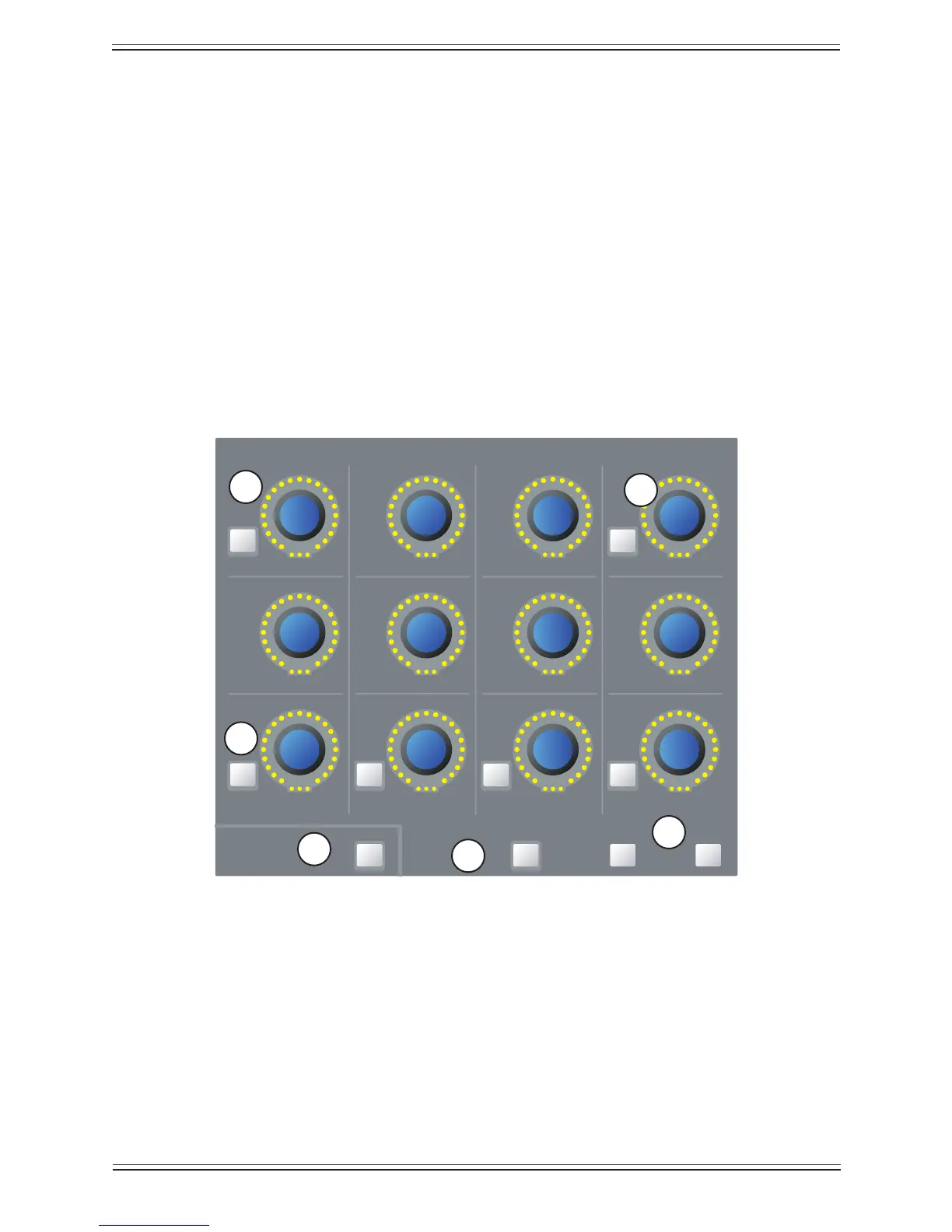

Super Channel: EQ, InsertFigure 7-4
EQ7.1.6
This section controls the four-band EQ for the selected channel. The EQ In key (2)
toggles the entire EQ section in/out. The Band In key (5) toggles each of the four EQ
bands in/out. Each band has knobs to control gain, frequency, and Q. The Soft Knobs
key (3) maps all EQ parameters onto the Soft Knobs. The EQ Select key (3) selects the
entire EQ section for a Clear function. The Shelf key (4) toggles the Low Q and/or High
Q band to a shelf rather than a bell lter.
5
4
3
2
1
4
