Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks

Initial Router and Patchbay Setup3.2

Max Air has an internal router that acts as a digital patchbay, allowing connection to

Sources, Console I/O and Destinations.

AM713

Analog to MADI

ML530

Analog Mic/Line

AM713

Analog to MADI

24 Mic

24 Line

FC726

Digital

FC726

Digital

56 Digital

USED

Analog 1-24

Digital In 1

Digital In 2

Mic 1-24

Unused

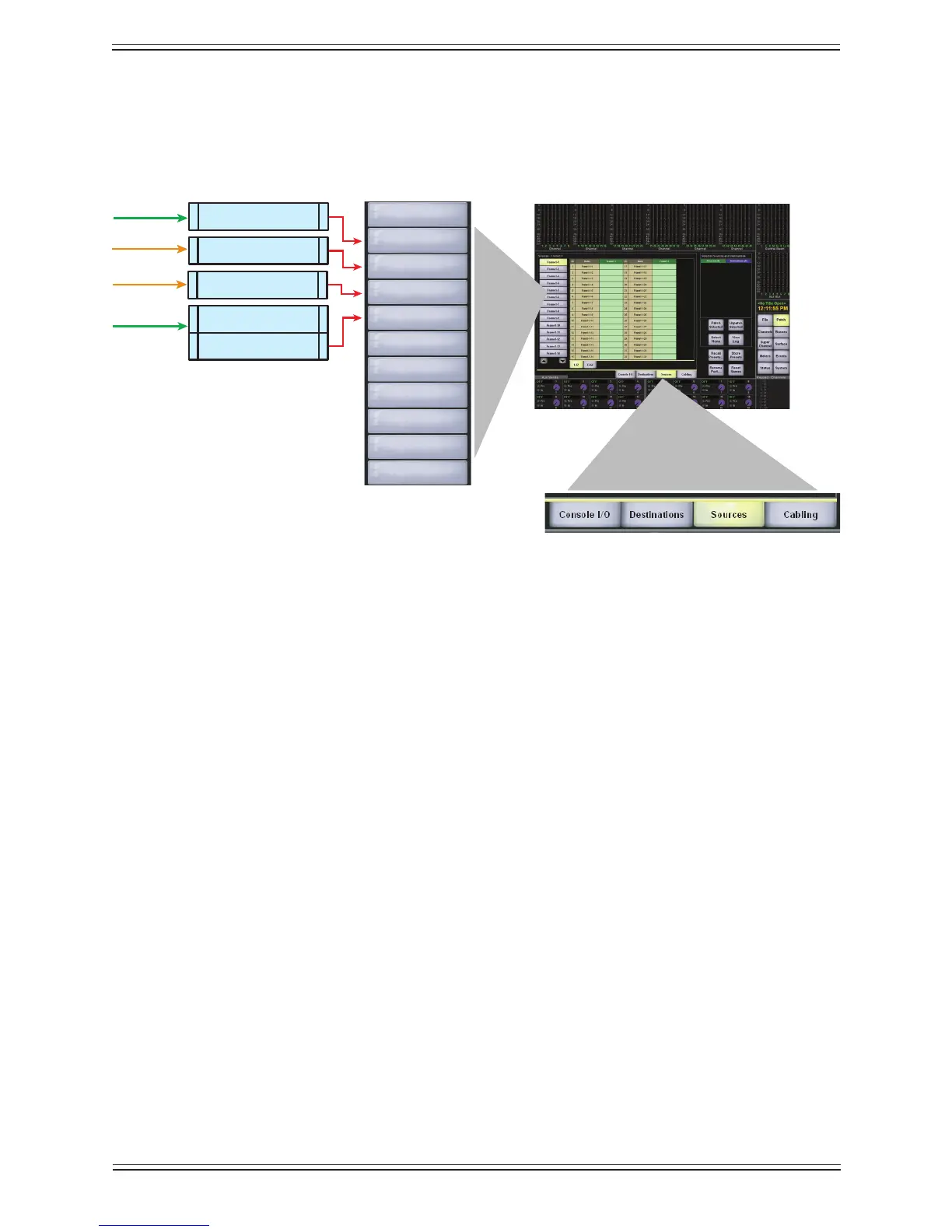

Console SourcesFigure 3-1

Each button along the left of the Patch view (Figure 3-1) represents a MADI connec-

tion to an I/O device. These MADI “Ports” are initially labeled as Frame x-x. We will

start by renaming these inputs and outputs and the individual sources and destinations

to meaningful labels. This is like labelling a patchbay with the equipment available for

patching. Once this is done these settings can be saved as the Default Title and used for

newly created Titles. Commonly used patches can be added to the Default Title setup in

the same way a traditional patchbay can be normalled.

Name Ports3.2.1

Select 1. Patch from the Main Menu buttons on the right of the Touchscreen.

Select the 2. Sources tab in the Patch view.

We will rename ports to match the connections of the system shown in Figure 1-1. The

rst MADI input (Frame1-1) is connected to 24 Mic Preamps.

Select 3. Frame1-1 on the left of the screen.

Touch 4. Rename Port. Type USED (Mics 1-24) using the keyboard popup.
