Euphonix Max
Air Mixing Console Operation Manual
T
ouchscreen
88
Setup
4.1
1.4
Select
the
Setup
button
to
display
the
Meters-Setup
V
iew
,
which
determines
the
meter
ballistics
for
all
currently
displayed
meters.
Select
Peak
or
A
verage
to
display
the
de-
sired meter ballistics.
NOTE:
This
setting,
although
not
saved
with
the
preset,
is
saved
between
system
shutdown and restart.

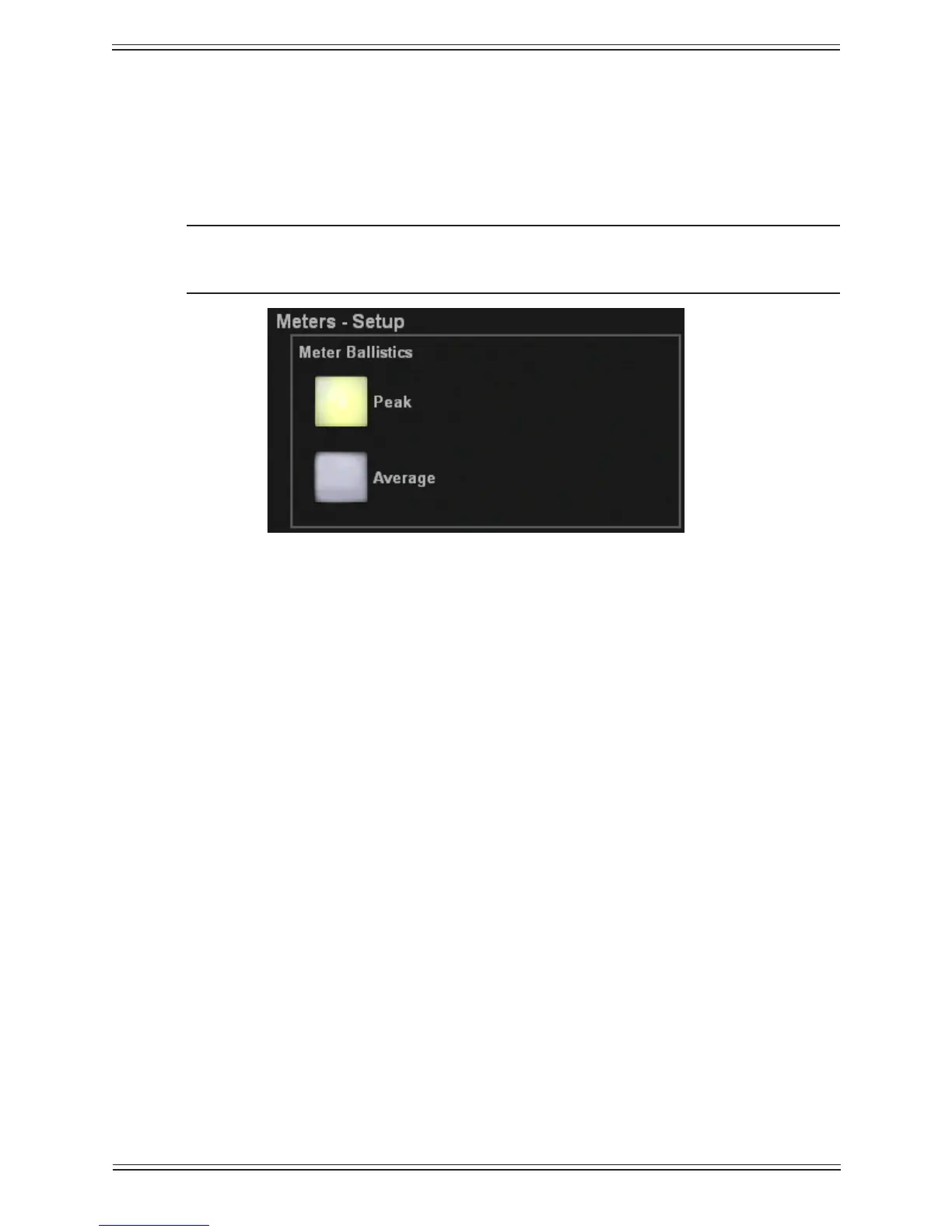

Meters-Setup View
Figure 4-45
Events
4.12
See Chapter 1
1:
Event System
.
87
89
Table of Contents
Default Chapter
5
Table of Contents
5
List of Figures
13
Chapter 1: Introduction
17
How to Use this Manual
17
Overview of the System Components
19
Analog and Digital I/O
19
DF66 Supercore
19
Typical Max Air Hardware Configuration
20
Control Surface
21
Max Air Control Surface
21
Additional Hardware Components
22
Max Air Startup Sequence
23
Chapter 2: New Features in Version
25
Chapter 3: Quickstart to Common Tasks
27
Create a Title
27
Initial Router and Patchbay Setup
28
Name Ports
28
Console Sources
28
Assigning the MIC Preamps to Hubs
29
Label Individual Signals
30
Label Destination Ports and Signals
30
Channel to Strip Layout
31
Setting up Stereo Channels Using MF Masters
31
Assign Channels to Strips
32
Busses
33
Create Main Sections and Audio Subgroups
33
Route to the Main Sections and Busses
36
Using the 24 Group Busses
36
Meters
37
Screen Meters on the Touchscreen
37
Setting the Fader Meters on each Strip
37
External Meters Display
38
Knobsets
39
Creating a Custom Knobset for Mono Channels
39
Creating a Custom Knobset for Stereo Channels
40
External Device Setup
40
Patching External Devices into the External Inputs
40
Assign External Inputs a Format and a Button
41
Monitors
42
Monitor Routing
42
Save a Default Title
43
Chapter 4: Touchscreen
45
Introduction to the Touchscreen
45
Keyboard Popup
45
Touchscreen Main Menu Buttons
46
Touchscreen Main View
47
Touchscreen Navigation
48
File
49
Projects
49
Drives View
49
Projects View
50
Titles
51
Titles View
51
Operations on the Current Title
52
Save Current Data Popup
52
Current Title Buttons
52
Default Titles
53
Patch
54
Simplified MADI Routing Diagram
54
Console I/O
55
Destinations and Sources
55
Sources and Destinations with Respect to Max Air
55
Console I/O -A and B Inputs View
56
Sources and Destinations Selected
57
Patch Complete
58
Source Input Naming
59
Sources Patched to Channels
59
Cabling
60
Cabling: MADI out Port
61
Cabling: MADI in Port
62
Patching Examples
63
Patch 12 Mics into Channels
63
Sources View with 12 MIC-Line Sources Selected
63
Selecting Destination Channels
65
MIC Patch Complete
65
Sources Selected
66
Main Bus Send/Return
67
Main Bus Send and Return
67
Monitor Patching
68
Solo Bus and Utility Patching
68
Talkback Signal Patching
68
Busses
69
Externals
69
Externals View
69
System
69
Knobset
70
Knobset View
70
Mixer Model
71
Mixer Model View
71
Preferences
72
Preferences View
72
About
73
Channels
74
Control Groups
74
Multi Format Masters
74
Surface
74
Assign
74
Channels Tabs
74
Assign View
75
Layouts and Snapshots
76
Spill Area
76
Spill Area Function
76
Lock Strips
77
Fader Unity
77
Lock Strips View
77
Status
78
Fader Unity Popup
78
Status View
79
Super Channel
80
Super Channel View
80
Channel Selector Popup
81
Process Order
81
Process Order Popup
81
Channel Routing Popup
82
Main and Group Bus Routing
82
Meters
83
Meters-Presets Popup
83
Presets
83
Meters-Screen Popup with Meters Display
84
Screen
84
Meters-Screen=Ext1 Popup with Meters Display
85
External Meters Display, Fully Configured
86
Fader
87
Meters-Fader Popup
87
Events
88
Meters-Setup View
88
Setup
88
Chapter 5: Channels and Strips
89
Strips
89
Console Strip and Bus Display with Block Diagrams for Main and Swap Channels
90
Assign Channels to Strips
91
Channel Control Features
93
Channel Name
93
Channel Selector
93
Main and Swap Channel Displays
93
Fader
94
Strip Fader
94
Meters
95
Status Leds
95
Channel on Key
95
Wave Key
95
Channel Select Key
96
Copy and Paste
96
Rotary Knobs
96
Solo Key
96
Knobset Select Keys
97
Rotary Knob Controls
97
Strip Function Switches
97
Expand
98
In/Out Keys
98
Channel Processing Functions
98
Inputs
98
Mono Input Knobsets
98
Stereo Input Knobsets
100
Dynamics
101
Dynamics Knobsets
101
EQ Knobsets
102
Filters
103
Filters Knobsets
103
Pan
104
Pan Knobsets
104
Aux Bus Knobset
106
Aux Busses
106
Channel Processor Order and Patch Points
107
Channel Processor Order
107
Insert Point
107
Channel Routing Functions
108
Group Bus Routing
108
Group Bus Routing Knobsets
108
Main Bus Routing
109
Main Section Routing Knobset
109
MIX Minus
110
MIX Minus Processing
110
Chapter 6: Busses
111
Introduction to Max Air Busses
111
Configuring Main and Group Busses
112
Main Bus View
112
Format Selector
113
Group Bus View
113
Format Selector
114
Configuring aux Busses
116
Aux Bus Settings View
116
Aux to Faders
116
Copy Fader to aux
117
Toggle On/Off
117
Toggle Pre/Post
117
Copy aux to aux
118
Level to off
118
Set Unity
118
Toggle Stereo
118
MIX Minus
119
MIX Minus Configuration-Strips View
119
Bus Centric Views
120
Aux View
120
Group Bus View
120
Group Bus View-Strips
120
Aux Bus View-Channels
121
Main View
122
Main View: A-Channels
122
Bus Masters
123
CM404 Center Section with Soft Knobs
123
Main Section Masters
123
Bus Inserts
124
Group and aux Bus Masters
124
Bus Processing
125
Bus Processing Configuration
125
Chapter 7: Center Section
126
CM404 Master Module
126
Super Channel
127
CM404 Super Channel Controls
127
Assign a Channel to the Super Channel
128
Super Channel: Selected Channel, Pan, Filters, and Input
128
Input Section
129
Pan
129
Filters
130
Insert
130
Super Channel: EQ, Insert
130
Dynamics
131
Fader
131
Super Channel: Dynamics
131
Monitors and Control Room
132
CM404 Monitor Controls
133
Monitors
133
Monitors Setup Popup
133
Control Room
134
Control Room Setup: CR Output
135
Control Room Setup: CR Source
135
Talkback/Slate
137
Talkback
138
Listenback
139
Slate
140
Oscillator
140
CM404 Oscillator
141
Oscillator Setup Popup
141
Solo
142
Solo Setup Popup
142
Clear solo
143
Solo Level
143
Solo Mode
143
Solo Switch Mode
143
Solo Safe Popup
144
Solo Speaker DIM
144
Solo-Safe
144
Speaker Selection
144
Backstop PFL
145
Soft Knobs
145
CM404 Soft Knobs
145
Soft Knob Setup Popup
146
Soft Knobs Setup Popup
146
Center Section Faders
147
CM404 Center Section Faders
147
Keypad
148
CM404 Keypad
148
Keypad Directory Popup
149
Global Functions
150
Global Function Keys
150
Custom Keys
151
Chapter 8: Control Groups and Multi Format Masters
152
Control Groups
152
Create a Control Group
152
Control Groups View
152
Assign Control Group Master to Strip
153
Assign Channels to CG View
153
Multi Format Master Channels
154
Create a Multi Format Master Channel
154
MF Masters View
154
Control Groups or Multi Format Masters
155
Spill
156
Chapter 9: Layouts and Snapshots
157
Layouts
157
Layouts View
157
Clear
158
Name
158
Recall
158
Store
158
Store Layout Popup
158
Snapshots
159
Snapshots View
159
Store
159
Store Snapshot: Strip View
160
Clear
161
Name
161
Recall
161
Store Snapshot: Channel View
161
Chapter 10: Scene Automation
162
Scene List
162
Scenes
162
Scene Automation Operations View
162
Scene Menu
163
Add Scene
163
Insert Scene
163
Delete Scene
163
Take
163
Finish
164
Previous and Next
164
Chapter 11: Event System
165
Input Types
166
Output Types
167
Logical Operators
168
Event Configuration Display
169
Event List
169
Event View
169
Input
170
Add Input Event Popup
170
Output
171
Deleting Events
171
Event Trigger on Title Load
171
Add Output Event Popup
171
GPI Examples
172
Creating an "On-Air" Tally
172
On-Air Tally off
174
On-Air Tally on
174
Using a Channel Strip to Control a Cart Machine
175
Cart Start
176
Cart Stop
176
Audio Follow Video
177
Audio Follow Video Configuration
177
