Patch the Multitrack Returns Into Channels 1–24
Select the1. Sources tab (1 in Figure 4-22).
Select the 2. Frame1-3 sub-category (2 in Figure 4-22).
Touch and drag through the rst 24 cells in Frame1-3 column (3 in Figure 4-22).3.
These cells are highlighted and their names appear in the Sources column in the
Selected Sources and Destinations area on the right (4 in Figure 4-22).

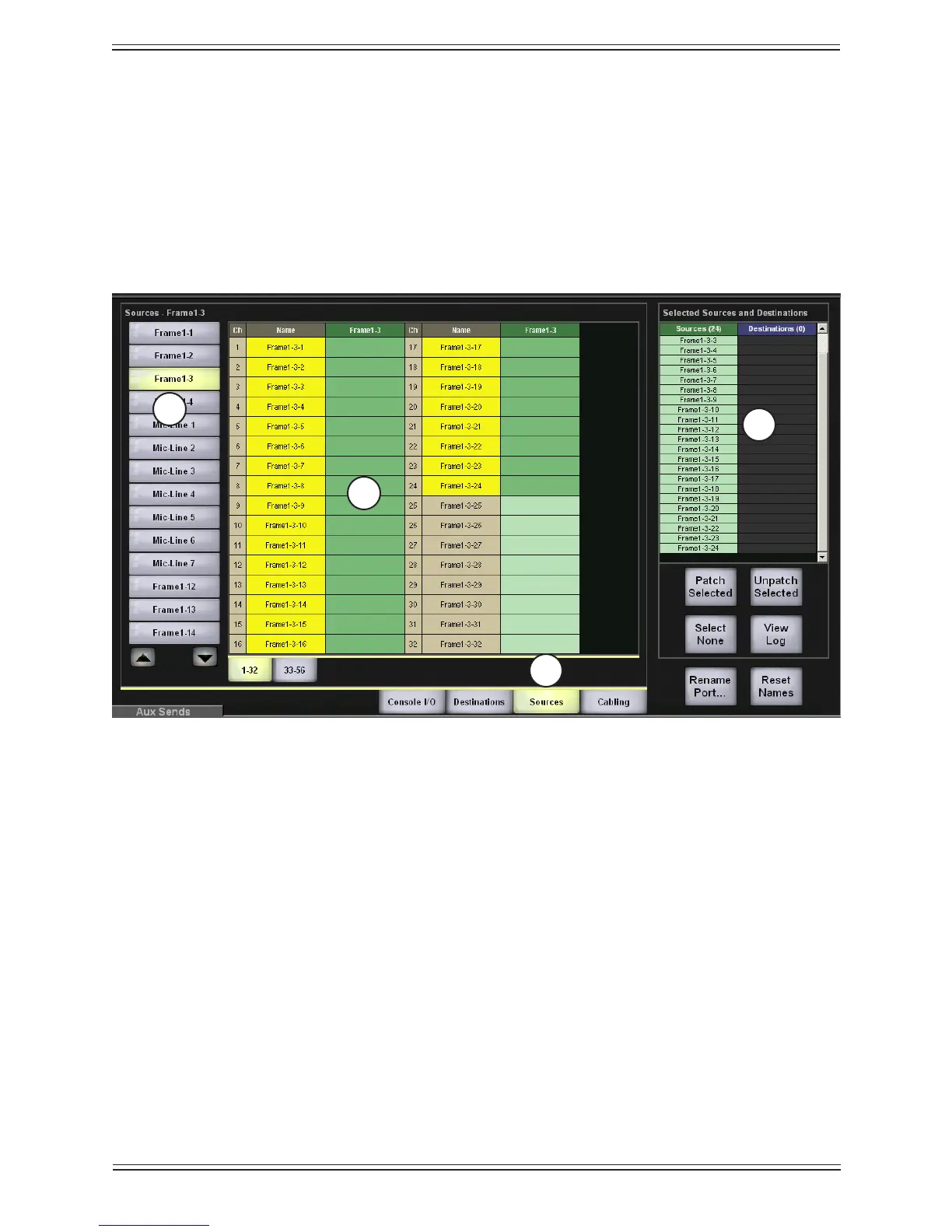

Sources SelectedFigure 4-22
Select the4. Console I/O category.
Select the 5. A and B Inputs sub-category.
Touch and drag through the rst 24 cells in the 6. A Input column.
These cells are highlighted and their names appear in the Destinations column in
the Selected Sources and Destinations area on the right.
Touch the 7. Patch Selected button to make the connection.
The sources and destinations appear in the A Input and Name columns, respec-
tively (1 in Figure 4-23). The sources and destinations are cleared from the Se-
lected Sources and Destinations area (2 in Figure 4-23).
After connecting the 12 mics and the R-1 returns, the Console I/O A and B Inputs
View is shown in Figure 4-23.
