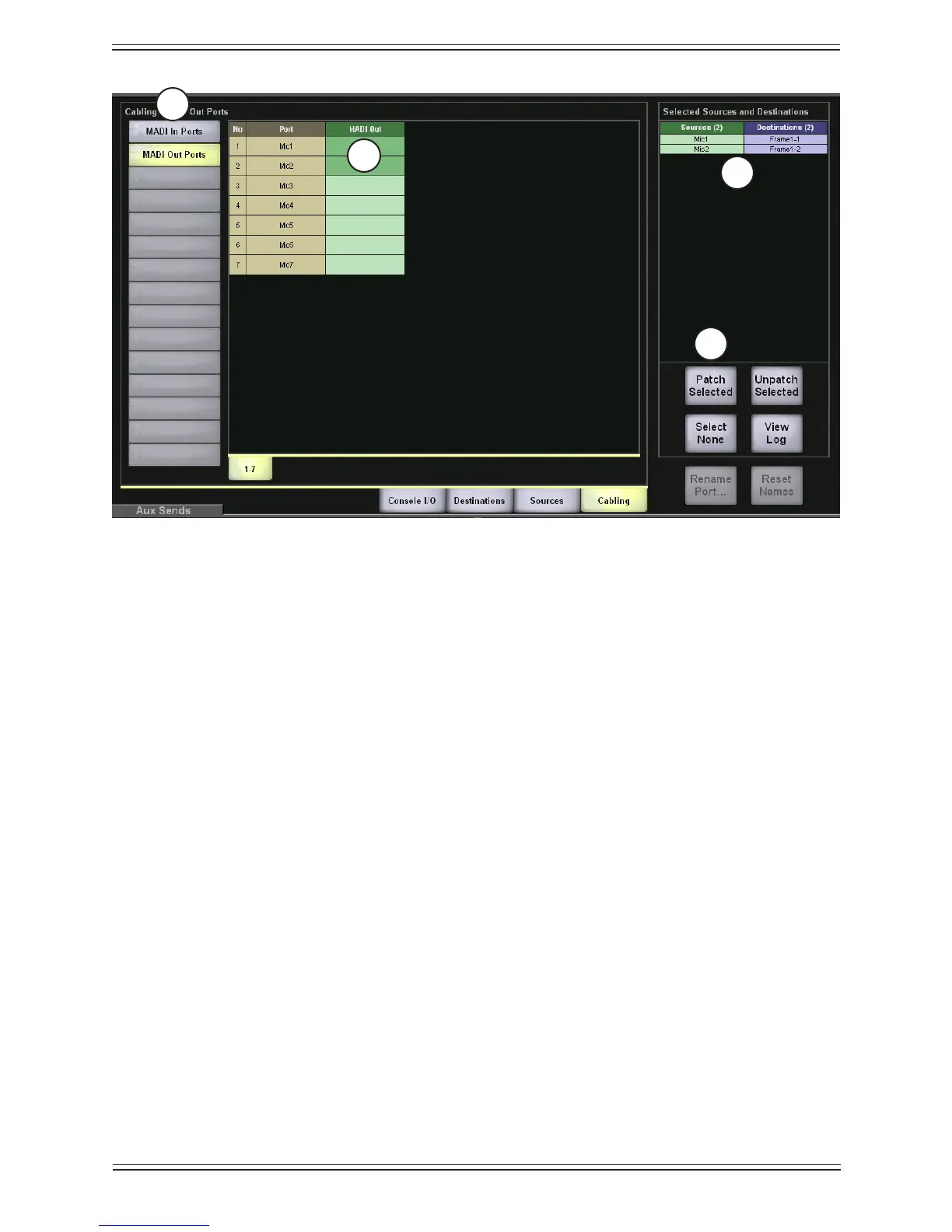

Cabling: MADI In PortFigure 4-18
Touch the6. Patch Selected button (4 in Figure 4-18) to make the patch.
The Patch system now knows how the two mic/line interfaces are connected so the
proper input controls appear at the top of the channels they are connected to.
Because Frame1-1 and Frame1-2 have been designated as MADI connections to the
Mic/Line interfaces, touching Frame1-1 and Frame1-2 in Sources shows Device Patch
in the rst 24 cells and will not allow selection unless they are unpatched.
4
3
2
1
