Layouts and SnapshotsChapter 9:
Layouts9.1
Layouts are used to store a mapping of channels to strips on the console. A system with
24 strips and 96 channels cannot map all channels to the console surface at once. Since
each strip can have two channels (Main and Swap), two Layouts are required to map all
96 channels:
Channels 1–24 to strips 1–24 Main1.
Channels 25–48 to strips 1–24 Swap
Channels 49–72 to strips 1–24 Main2.
Channels 73–96 to strips 1–24 Swap
A group of channels sharing a common attribute that are normally required on the console
at the same time (i.e., announcers, VTRs, or phones) are ideally stored in a Layout.
Select the Layouts tab (form the Surface menu) to display the Layouts View (Figure
9-1), which provides the interface to name, store, clear, and recall up to 48 channel-to-
strip maps.
When no Layout is selected, all the function buttons are dim.

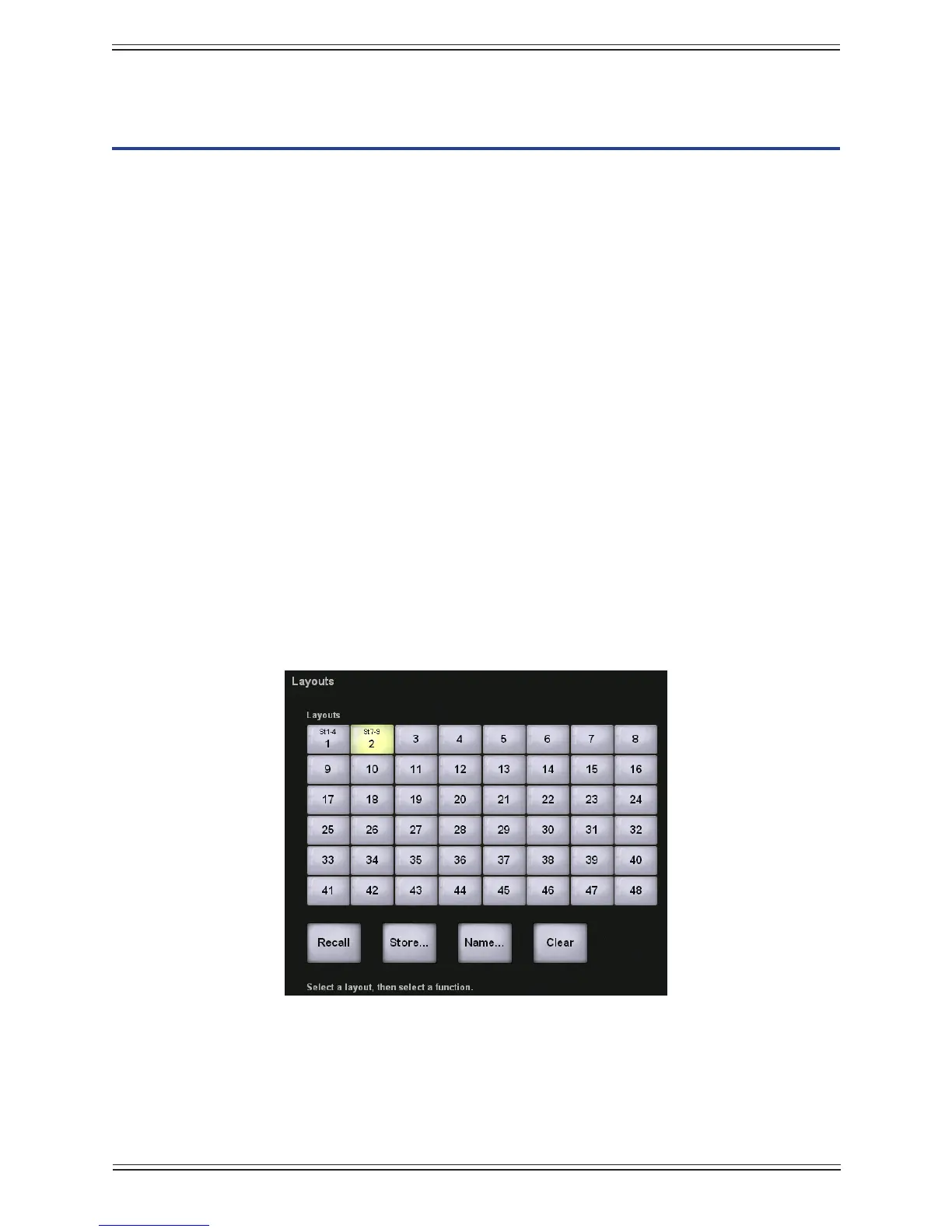

Layouts ViewFigure 9-1
