Monitors and Control Room7.2
The Max Air monitor system accommodates multi format outputs up to 7.1 channels.
There are seven monitor outputs (Figure 7-6):
The Main Control Room and Mon A (7.1 max)•
Alt 1 (5.1 max)•
Alt 2, Mon B, C, and D (stereo)•
Mon A, B, C, and D are used for studio speaker/Cue feeds.
Externals Main Sections Aux Snds
CR
Monitors
8 Out (max 7.1)
Mon A
8 Out (max 7.1)
Alt 2
Stereo
Alt 1
6 Out (Max 5.1)
Main
8 Out (max 7.1)
Mon B
Stereo
Mon C
Stereo
Mon D
Stereo
Monitor Selector
Rtn
Out

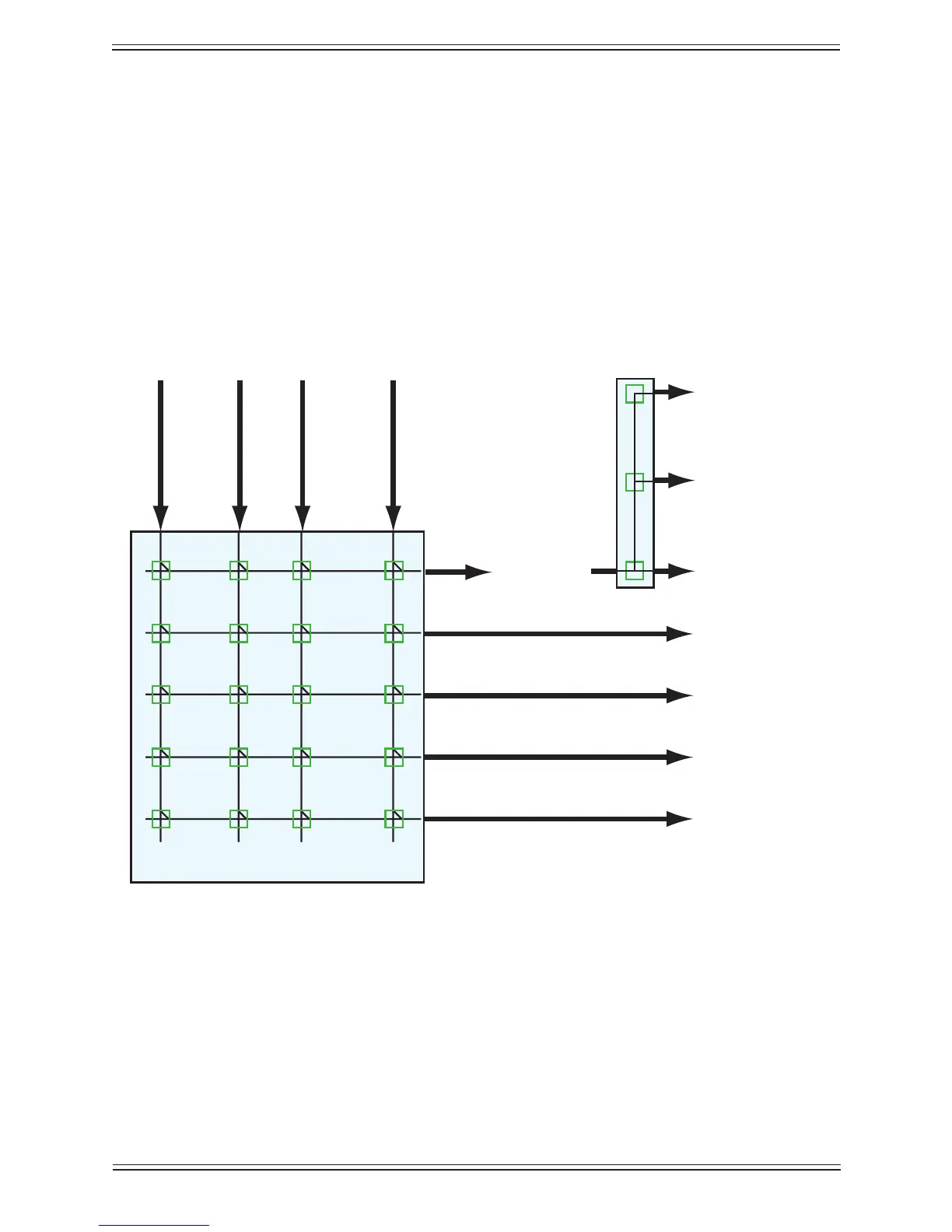

Monitoring MatrixFigure 7-6
Source selection for the monitor output can either intercancel (allows only one source to
a monitor output), or sum (allows multiple sources).
