Euphonix Max Air Mixing Console Operation Manual Touchscreen
67

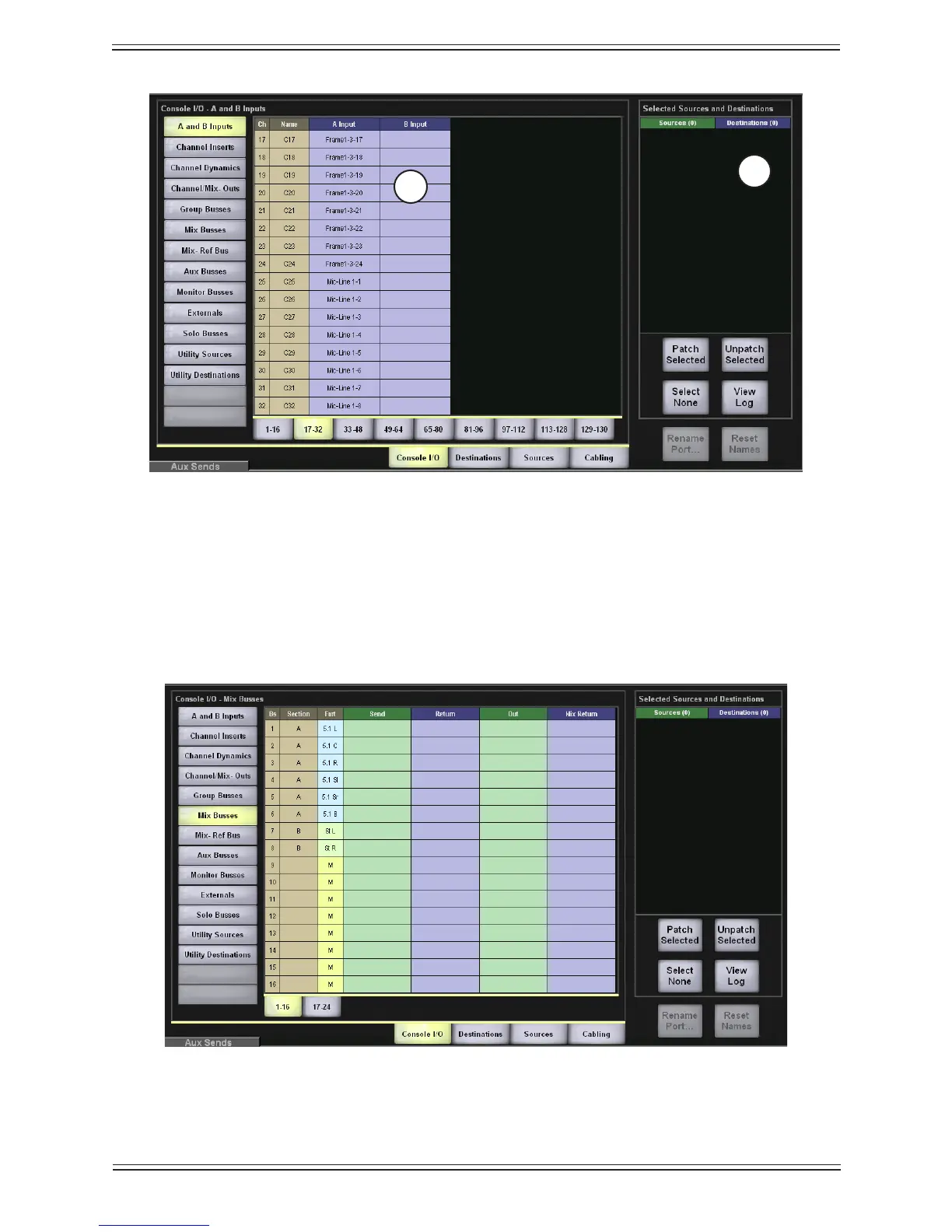

R-1 and Mics PatchedFigure 4-23
Main Bus Send/Return4.4.2
Select the Console I/O category and then select the Main Busses sub-category. Each
Main bus has a send and return. Figure 4-24 shows the rst six sends (a 5.1-channel
Main section) routed to channels 41–46 A inputs. The insert is switched in/out from the
Bus Masters Cong Page (see Bus Inserts on page 122).
Main Bus Send and ReturnFigure 4-24
2
1
