Managing T
est Results
108
OX1
Changing an El
ement T
ype
T
o change an element type:
1.
In th

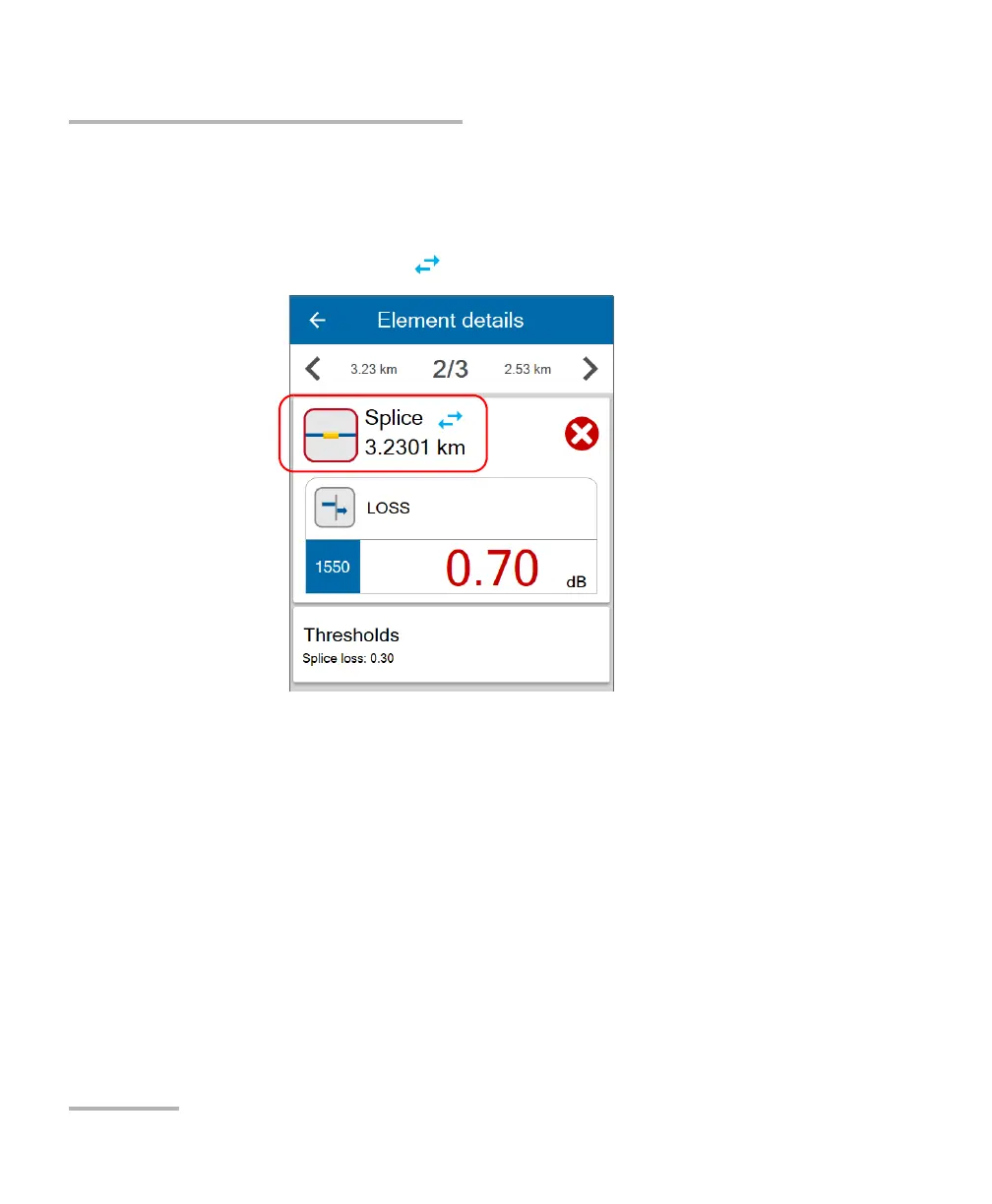

e link results area, tap the element you want to modi
fy
. See
Working With Link Resu
lts
on page
75 for details.
2.
Use the blue ar
rows
to change the element type.
119
