EXFO Optical Xplorer OX1 User Manual

Maintenance
Optical Xplorer 131
Determining the Condition of the Click-Out Optical Connector (Pro Models Only)
Determining the Condition of the Click-Out
Optical Connector (Pro Models Only)
If you have a Pro model, you can perform a procedure to help you
determine if there is a problem with the internal connector or only with the
replaceable Click-Out connector.
To determine if the Click-Out connector only needs to be
replaced:
1. Remove the Click-Out connector from the unit (see the corresponding
procedure in Replacing the Click-Out Optical Connector (Pro Models
Only) on page 133).
2. Clean and inspect the optical port and the optical connector that
connects inside the unit.

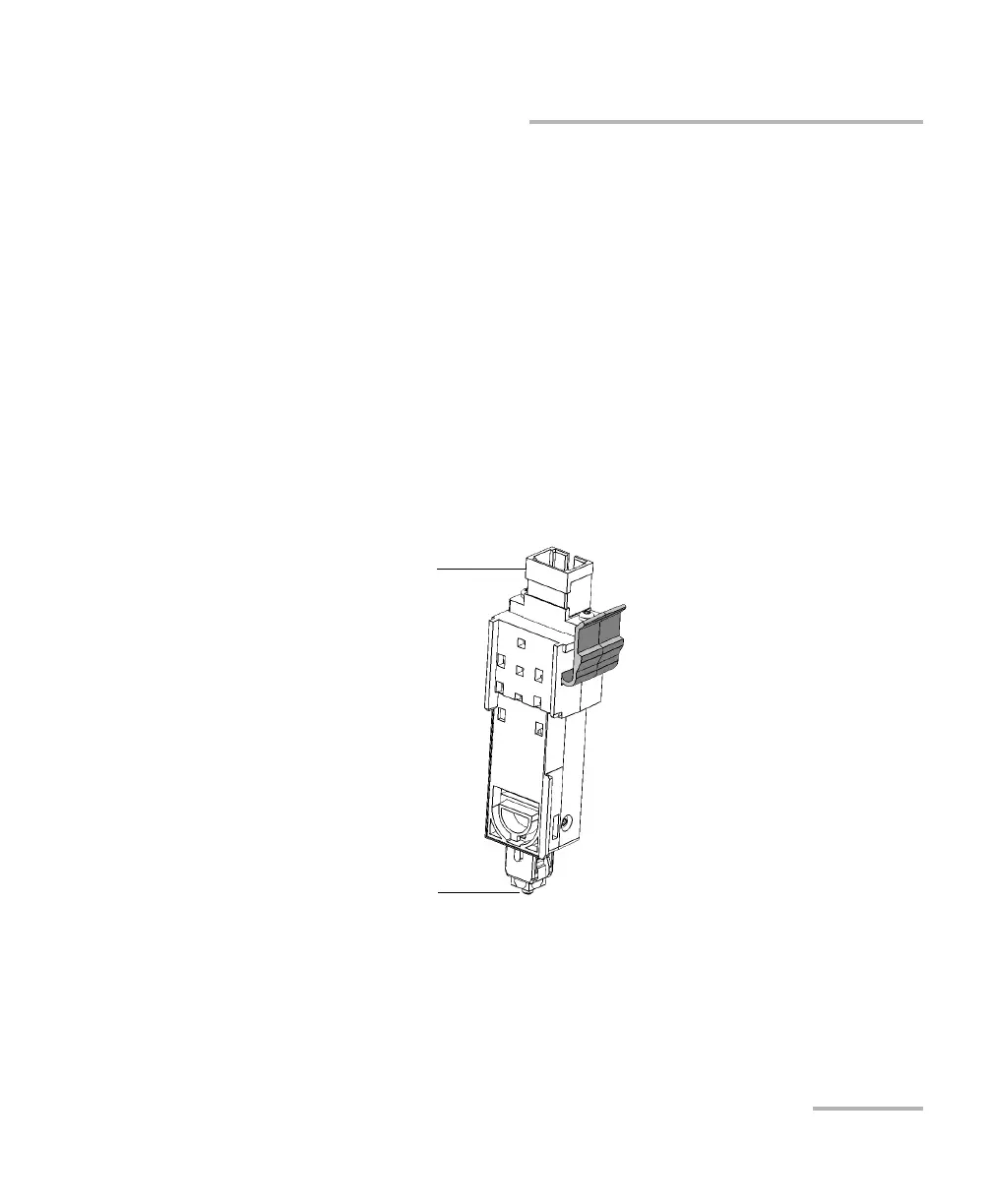

Optical port
Optical connector that connects inside
the unit
