Maintenance

Optical Xplorer 147

Enabling or Disabling the Wireless Communication

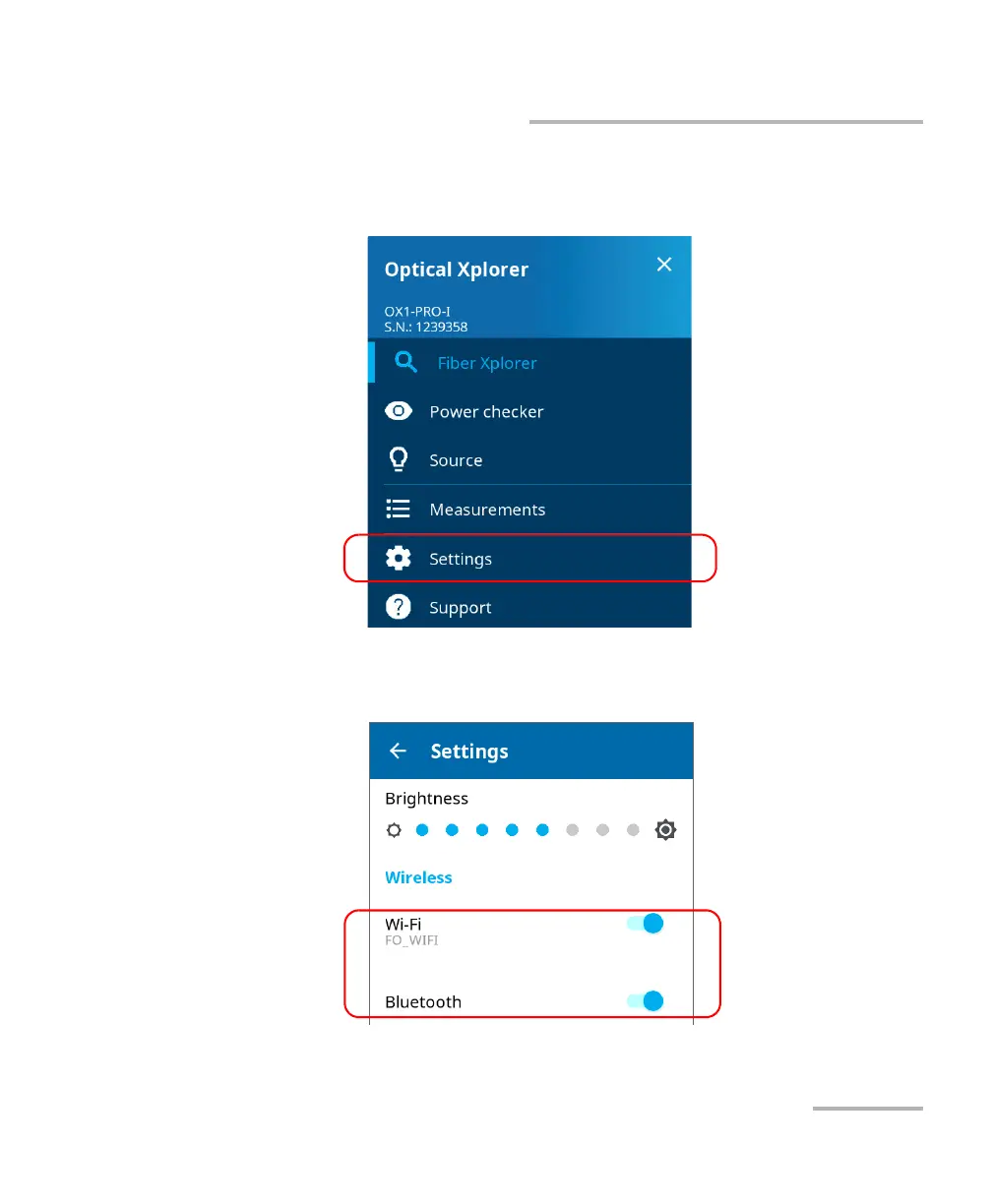

To enable or disable the wireless communication from your unit:

1. From the main menu, tap Settings.

2. Use the Wi-Fi or Bluetooth toggle to enable or disable the

communication as needed.

The changes are taken into account immediately.
