Maintenance
154
OX1
W
orking With a Wireless Network

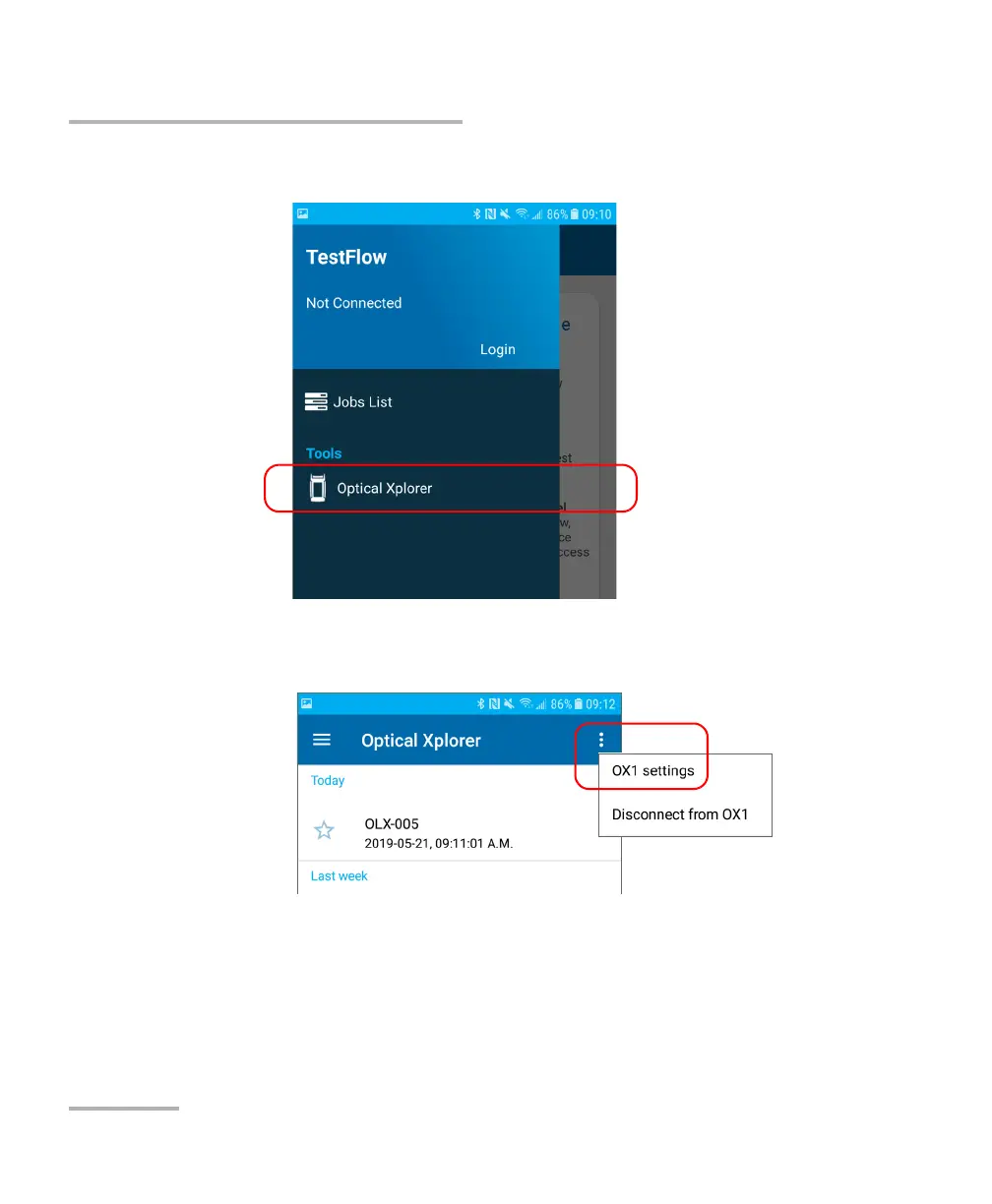

4.
Under
T
ools
, tap
Optical Xplorer
.
5.
F
rom th
e Optical Xplorer tool, open the three-dot menu, and then
select
OX1 settings
to access the parameters.
165
167
Table of Contents
Contents
3
Introducing the OX1 Optical Xplorer
13
Main Features
13
Front Panel
14
Top Panel
15
Bottom Panel
15
Available Models
16
LED Indicator Description
17
Battery Status Icon Description
18
Power Sources
18
Indoor and Outdoor Use
19
Test Functions and Tools
20
Technical Specifications
21
Conventions
22
Safety Information
23
General Safety Information
23
Other Safety Symbols on Your Unit
25
Laser Safety Information
26
Electrical Safety Information
28
Equipment Ratings
29
Getting Started with Your Unit
31
Installing the Hand Strap
31
Turning on Your Unit
34
Turning off Your Unit
35
To Enter the Sleep Mode
35
To Exit the Sleep Mode and Resume Your Work
35
To Turn off the Unit Completely (Shutdown)
35
Configuring Your Unit at First Startup
36
To Configure Your Unit at First Startup
37
Understanding Fiber Xplorer
38
Working with Launch and Receive Test Cords
40
Cleaning and Connecting Optical Fibers
46
To Connect the Fiber-Optic Cable to the Port
46
Temperature Management
47
Setting up Your Unit
49
Adjusting Brightness
49
To Adjust the Display Brightness
49
Enabling or Disabling Sound Notifications on Your Unit
51
Selecting the Language of Operation
54
To Select a New Interface Language
54
Adjusting the Date, Time and Time Zone
56
To Modify the Date Format
56
Selecting the Distance Units
61
Configuring the Duration after Which the Unit Enters Sleep Mode
63
Selecting Test Wavelengths
66
To Select Test Wavelengths from the Settings Page
66
Working with Custom Pass/Fail Thresholds or EXFO Advisor
70
Configuring IOR Value
77
Reverting to Factory Settings
80
Testing Fibers
83
Performing Measurements
84
To Perform Measurements
85
Working with Link Results
87
Working with Link Overview
89
Working with Link View
90
Performing Tests When Light Is Detected on the Network
92
Using the Power Checker
93
Setting Thresholds
94
Setting Reference Values on Your Power Checker
102
To Set Reference Values
102
Measuring Power or Loss
104
To Perform Power or Loss Measurements
104
Using the Light Source
107
To Use the Light Source
108
Managing Test Results
115
Viewing Measurements
115
To View Measurements from Their Dedicated List
116
Changing an Element Type
119
To Change an Element Type
120
Deleting Measurements
122
To Delete Measurements Manually
123
Maintenance
125
Cleaning SC Connectors
126
To Clean a Connector Using a Mechanical Cleaner
126
Cleaning the Touchscreen
127
Recharging the Battery
127
To Recharge the Battery
129
Replacing the Battery
130
To Replace the Battery
132
Verifying the Optical Output of Your Unit
139
To Verify the Optical Output of Your Unit
140
Determining the Condition of the Click-Out Optical Connector
143
Replacing the Click-Out Optical Connector
145
To Remove the Click-Out Optical Connector
146
To Replace (or Reinstall) the Click-Out Optical Connector
148
Recalibrating the Unit
150
Enabling or Disabling the Wireless Communication
158
To Close the Connection with an OX1 from a Smart Device
158
To Enable or Disable the Wireless Communication from Your Unit
159
Working with a Wireless Network
162
Configuring a Wireless Network
165
To Configure a Wireless Network
165
Connecting to a Wireless Network from Your Unit
169
Removing Configured Networks from the List
172
Upgrading Applications and Firmware
175
To Upgrade Applications or Firmware
176
Recycling and Disposal
178
Troubleshooting
179
Solving Common Problems
179
Restoring Your Unit to Normal Operation
183
To Restore You Unit to Normal Operation
184
Accessing the Online Documentation
190
Contacting the Technical Support Group
195
Sharing Measurements with the Technical Support Group
196
Viewing System Information
199
To Retrieve the Contact Information
200
Transportation
200
Service and Repairs
203
To Send any Equipment for Service or Repair
203
