Setting up Your Unit

50 OX1

Selecting the Distance Units

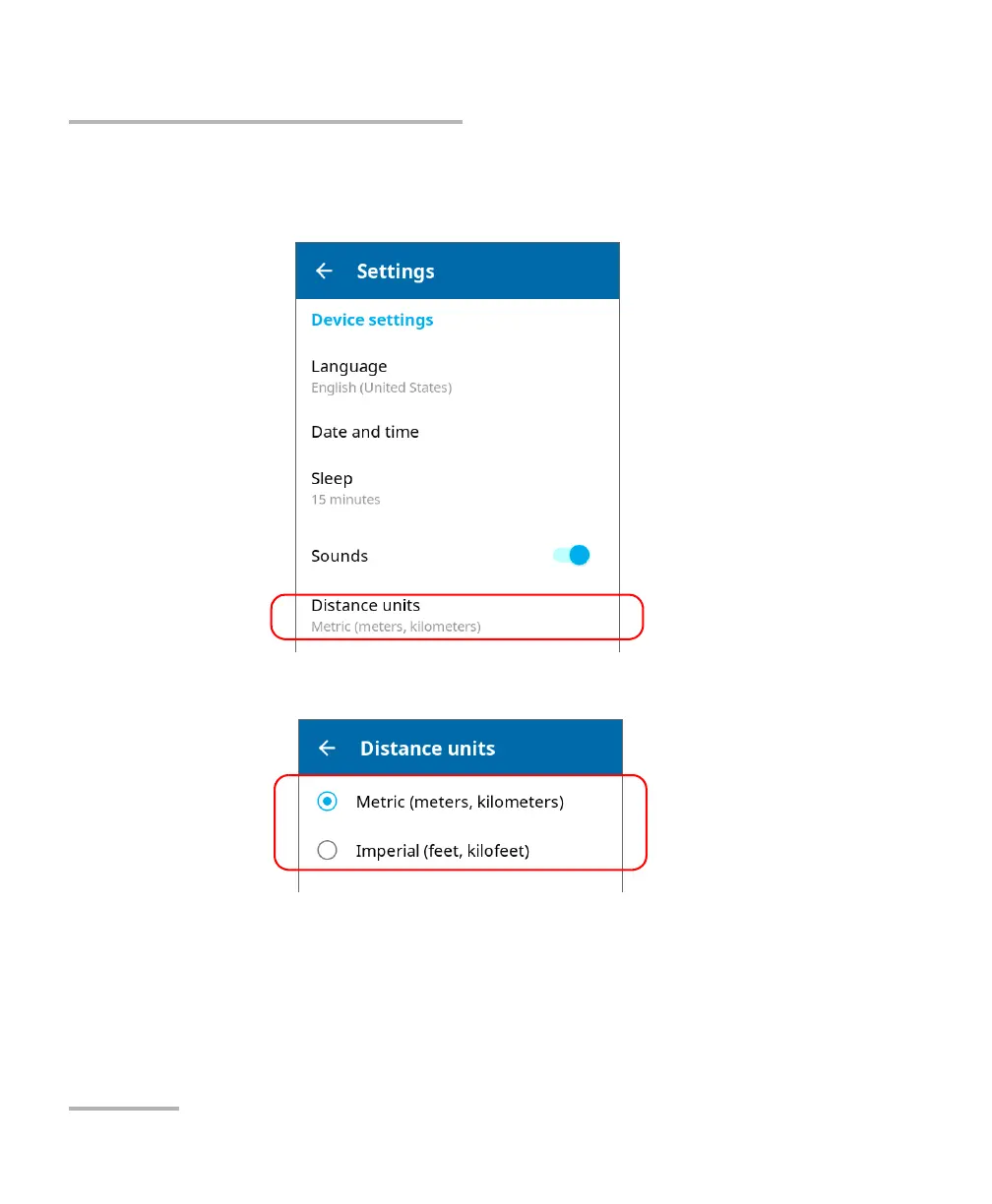

2. Scroll down to the Device settings section.

3. Tap Distance units.

4. Select the desired distance units.

The new value is taken into account immediately.
