Working With Link View
Macrobends Macrobends can be displayed in the
link view when more than one
wavelength is present in the
measurement.
Out of range This element is displayed when the
application cannot detect the end of
fiber because of insufficient
dynamic range.
Group Several link elements or faults are
combined when they cannot be
independently identified.

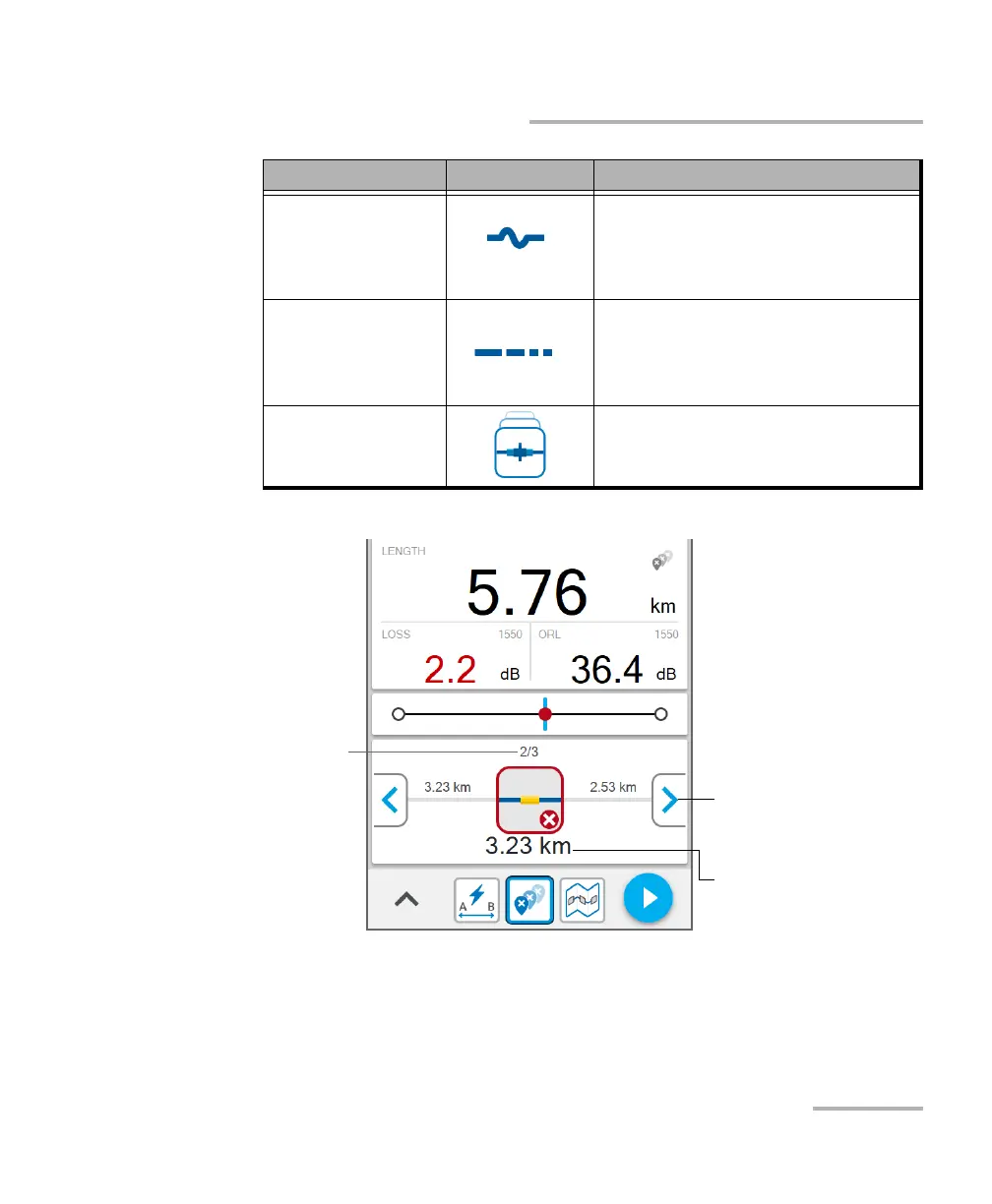

Element Name Element Icon Meaning
Navigation arrow
Element or fault ID
number
Position of the element
currently selected
