6 Positioning mode
Festo – GDCP-CMMS/D-FW-EN – 1404NH – Engli sh 141

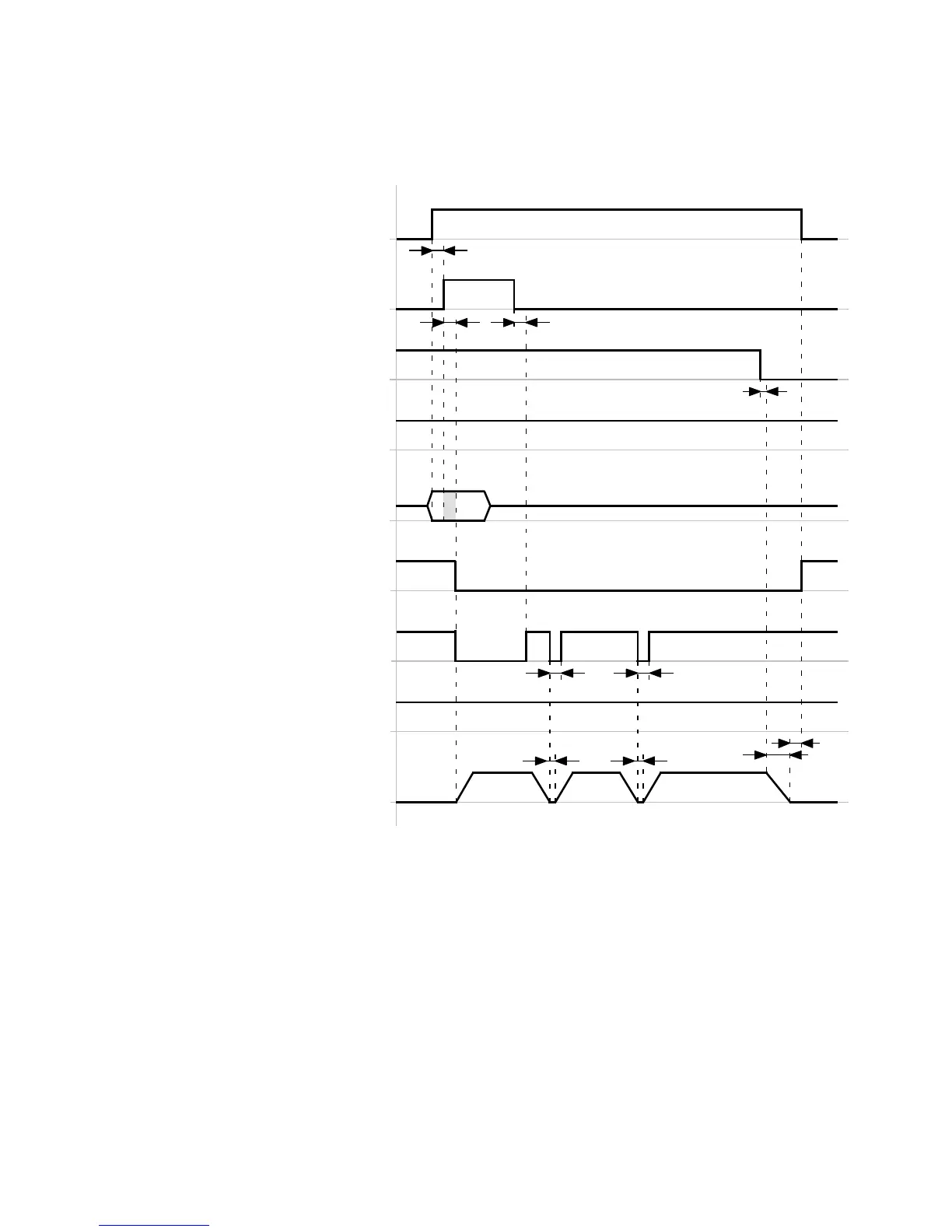

Timing diagram: Cancelling the record s equence via the stop signal
The timing diagram shows the stopping of the record sequence via the stop signal ( DIN13).
t5
Star t record sequence
(DIN8)[X1.23]
Stop
(DIN13)[X1.15]
Halt record sequence
(DIN3)[X1.8]
Motion complete
(DOUT1)[X1.12]
Controller ready for operation
(DOUT0)[X1.24]
Confirm start
(DOUT2)[X1.25]
Common error
(DOUT3)[X1.13]
Speed
(Positioning record 1/2/3)
t2
1
Record selection bit 0…2
(Positioning record 1…7)
(DIN…)[X1.…]
t3
t1
t2
t3
23
t6
t7
t4 t4
t1 ≥ 2.5 ms
t2 ≤ 5ms
t3 L 16 ms
t4 ≤ 2.5 ms
t5 ≤ 2.5 ms
t6 = … ms (FCT: Dependent on the parameter
“Stop input” in the stop decelerations)
t7 = … ms (FCT: Dependent on the parameters
“Message window” and “Damping time” in
the message “Destination reached”)
Fig. 6.16 Timing diagram: Cancelling the record sequence via the stop signal
