3 Control interfaces
62 Festo – GDCP-CMMS/D-FW-EN – 1404NH – English

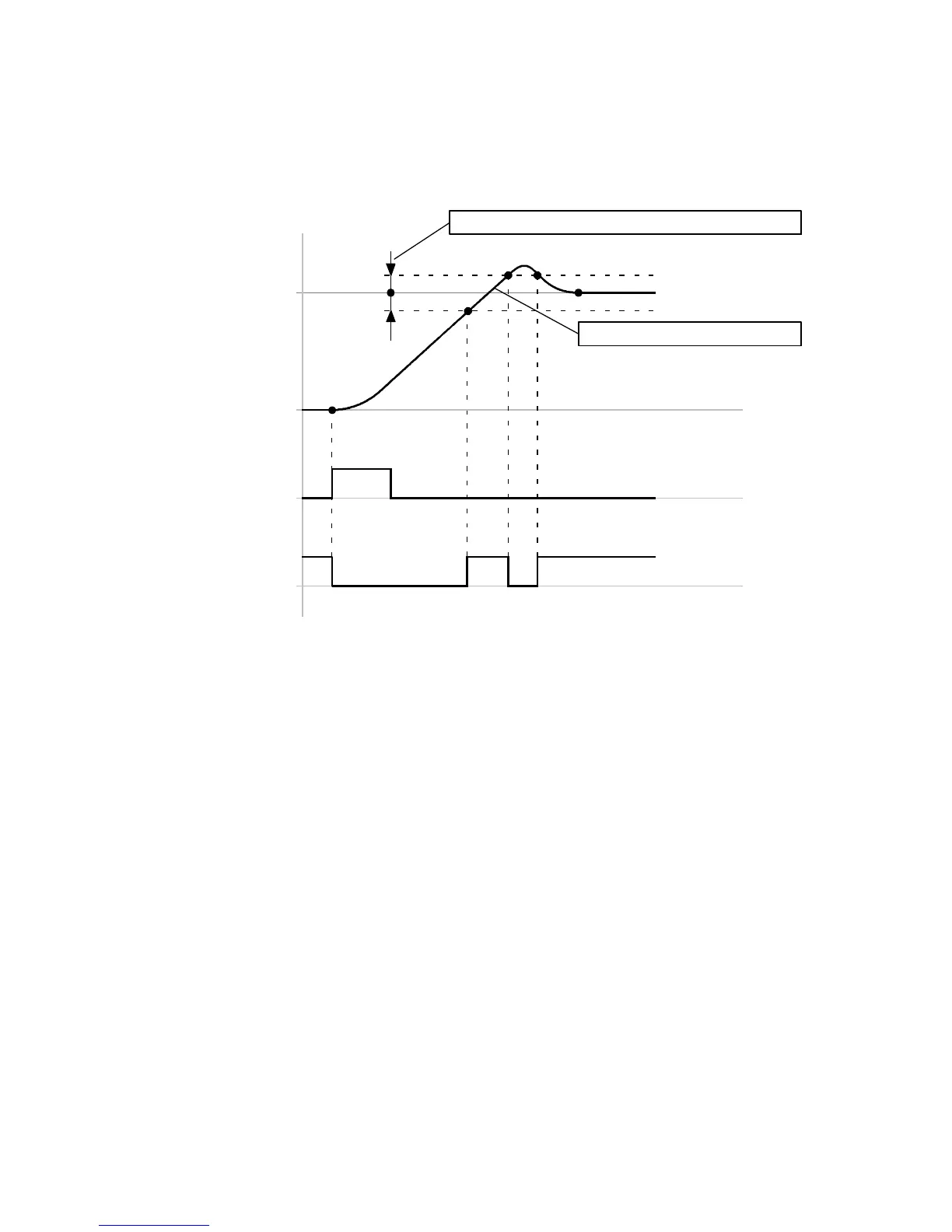

Timing diagra m: Digital output signal “Declared speed achieved”
The timing diagram shows the dependency of the digital output signal “Declared speed achieved” on
the message window “Speed reached”.
Declared speed reached
(DOUT1/2/3)[X1.12/25/13]
Parameter “Declared
speed”
+
–
Δv
Message window “Speed reached”
Start
(DIN8)[X1.23]
Actual speed
Δv = + /– … mm/s (linear axis) or
= +/– … rpm ( rotative axis)
(FCT: Dependent on the parameter “Message window” in the message “Speed reached”)
Fig. 3.8 Timing diagram: Digital output signal “Declared speed achieved”
