4. Faults and diagnostics
4−34
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
Diagnostic events
The diagnostic event determines the meaning of the diagnos
tic code and the additional information.
Diagnostic events (PNU 200)
Value
1)
Qty. Description Diagnostic code (PNU 201) Additional information (PNU 203)
0  Blank entry  
1 E... Fault Fault number (} 4.2.5) Additional information incoming
fault
3 R... Reset Reset number (} 4.3.4) Additional reset information
5 W... Warning Fault number (} 4.2.5) Additional information incoming
fault
7 P... Switch on Switch−on information (} 4.3.4) Additional switch−on informa
tion
8 C... Configuration Configuration information
(} 4.3.4)
Additional configuration in
formation
1)
Other values are reserved
Tab.4/9: Values of the diagnostic events with assignment to diagnostic code and addi
tional information
Depending on the event, the FCT can provide detailed in
formation on the respective entry with the help of the addi
tional information.

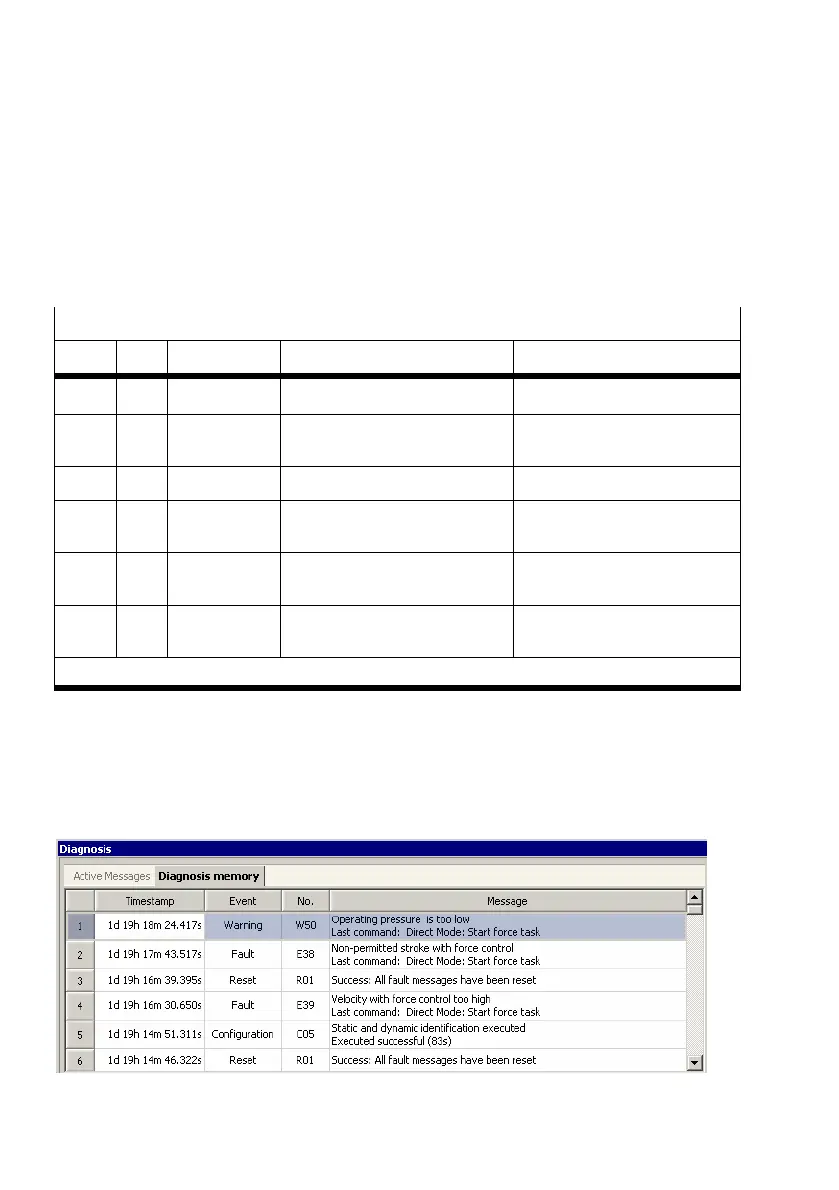

Fig.4/1: Example of display of the diagnostic memory in FCT
