C. Configuration with CPX node
C−18
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
C.2.2 Parametrisation (RSNetworx example)
When modular EDS is used, you can set the parameters by
module with RSNetWorx.
Note the general instructions on CPX parametrising in
section 1.3.
Make sure that parameters cannot be unintentionally over
written. If necessary, carry out an upload.

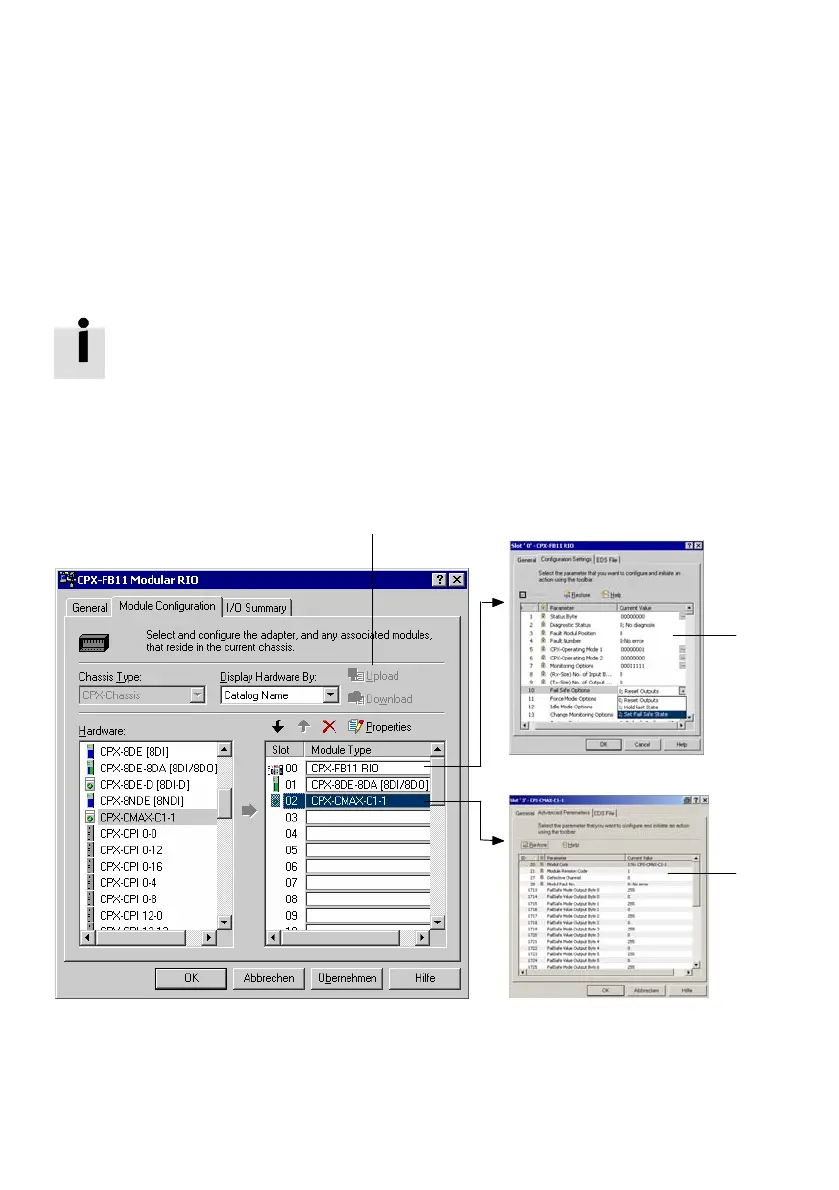

The following diagram shows the Module Configuration"
register of the CPX terminal. Double clicking on
the module in
the configuration table brings you to the window for setting
the parameters.
1
2
3
1
Buttons for uploading and
downloading the parameters
2 System parameters and data
3 Module parameters
Fig.C/6: Parametrisation with modular EDS
