C. Configuration with CPX node
C−32
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
C.3.4 Address assignment
Address assignment example
8DI
2AI4DO
8 A8 A
1
MPA
2 453
1
CPX−FEC
2 Digital I/O modules
3 Technology module CMAX
4 Analogue I/O modules
5 MPA1 pneumatics
(2 pneumatic modules)

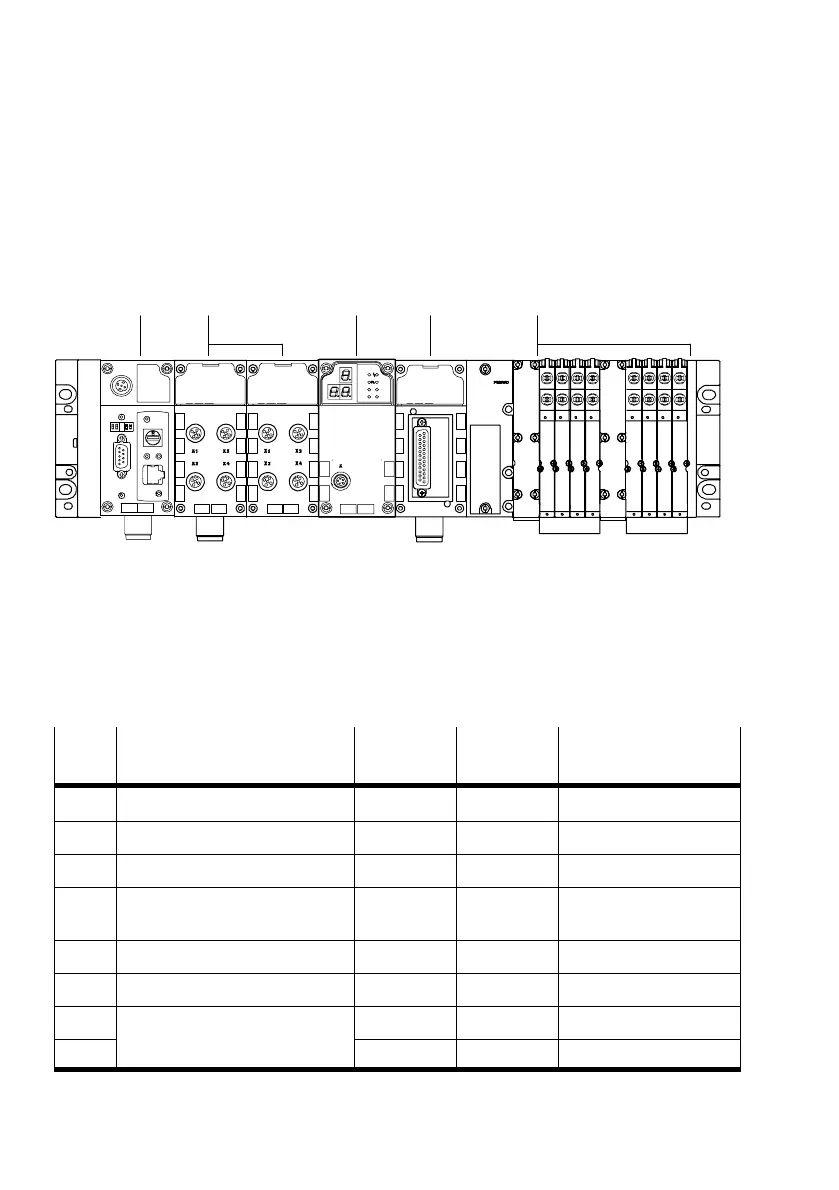

Fig.C/16: CPX−FEC address assignment example
Loca
tion
Module Input
address
Output
address
Remarks
0 CPX−FEC 128 128 The outputs are not used.
1 8−way digital inpu t module (8DI) 0  
2 4−way digital output module (4DO)  0 
3 Servo−pneumatic axis CMAX (T21) 129 ... 132 129 ... 132 For assignments, see
Tab. C/11
4 2−way anal ogue inpu t module (2AI) 64, 65  
 MPA pneum atic interface   Passive module.
5
MPA pneumatic module
(CPX type32 1 8V)
 32 
6
(CPX −ty pe32: 1−8V)
 33 
Tab.C/10: Configuration of address assignment for example Fig.C/16
