C. Configuration with CPX node
C−6
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
C.1.3 Start parametrisation
When setting the System start with default parametrisation
(factory settings) and current CPX structure" CPX system
parameter, the parameters stored at the master are trans
ferred to the CPX−FB13.
Observe the general instructions in section 1.3.
Start parametrisation
1
Master loads the
start parameter
set into the node
2 The node
distributes
parameter set to
the modules
PLC/
IPC
PROFI−
BUS−DP
Master
1
2

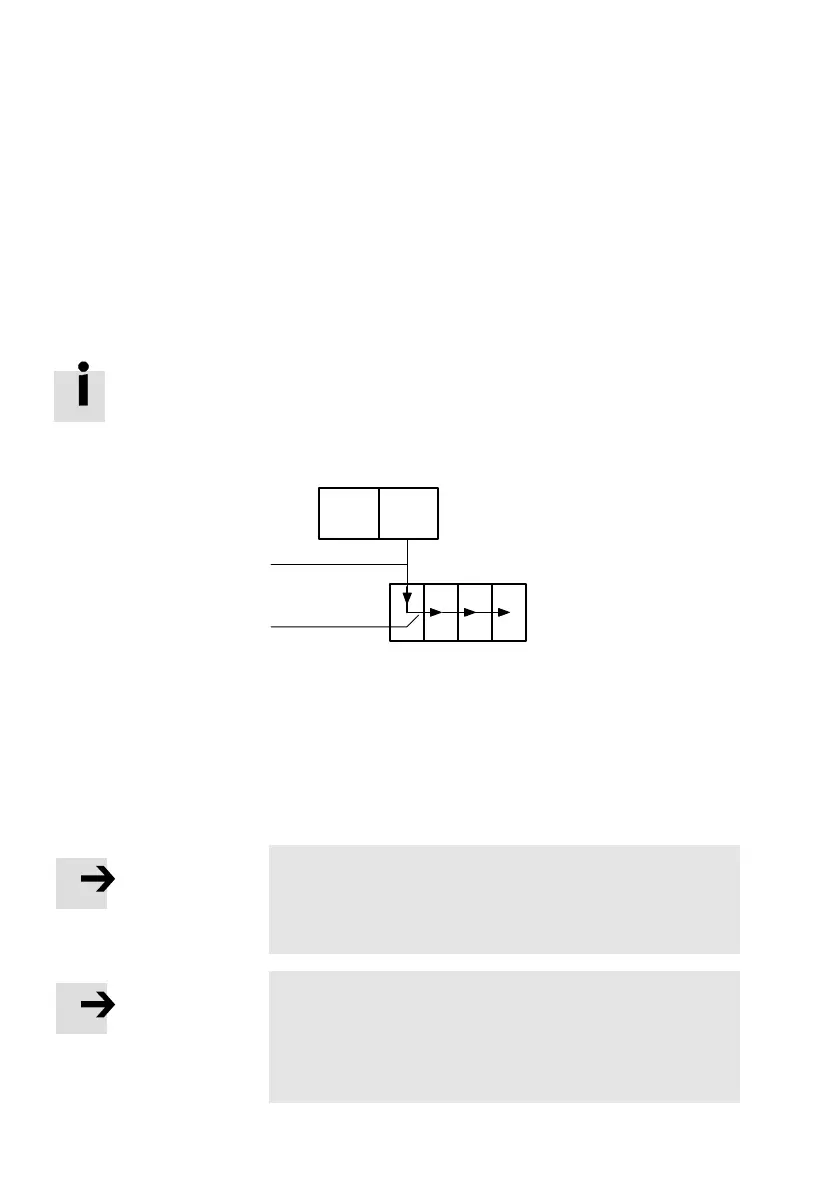

Fig.C/2: Sequence of start parametrisation
When the field bus system is switched on, the CPX terminal is
parametrised as Start parametrising" by parameter set 1
saved in the PROFIBUS master. The field bus node then dis
tributes the parameters module−orientated to the CPX mod
ules 2.
Note
The number of start parameters is limited, depending on
the software version of the CPX−FB13. Observe the notes in
the description for the CPX−FB13.
Note
After each interruption of the field bus system (e.g. after
interruption of the power supply to the field bus node),
the start parameter set will be sent again by the PROFIBUS
master to the fieldbus node.
